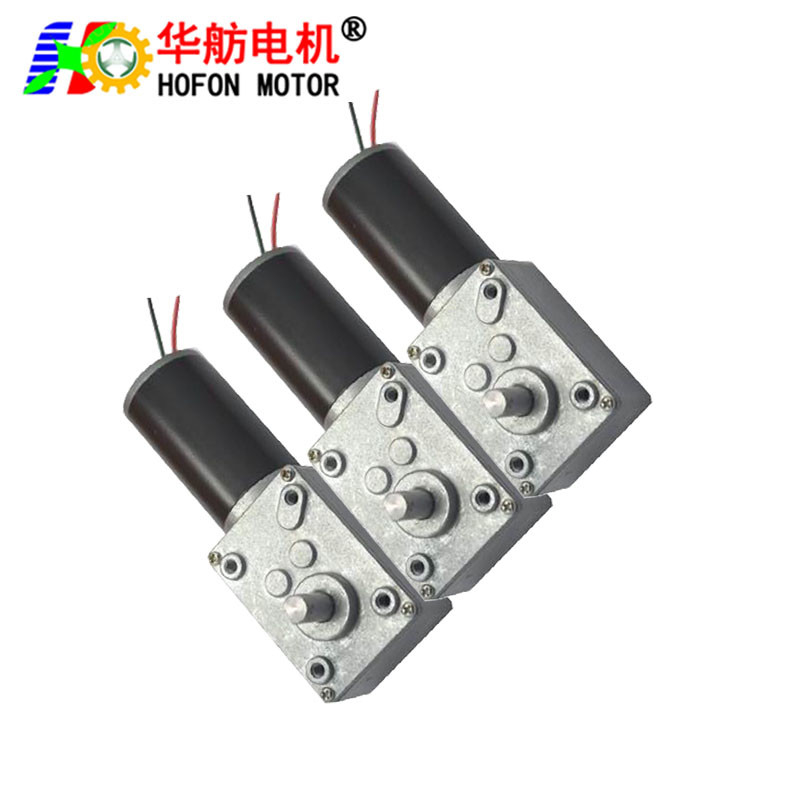

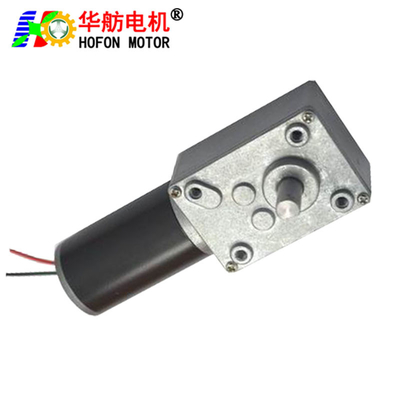

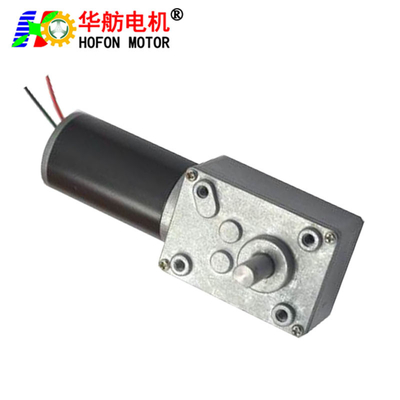

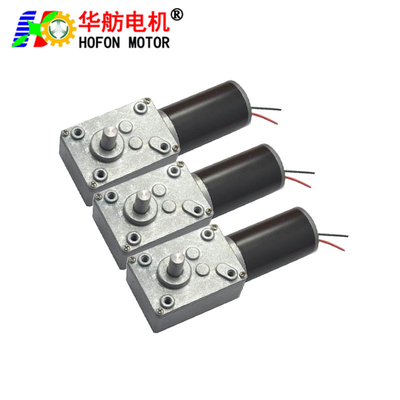

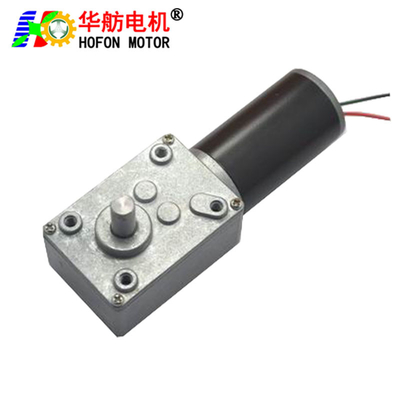

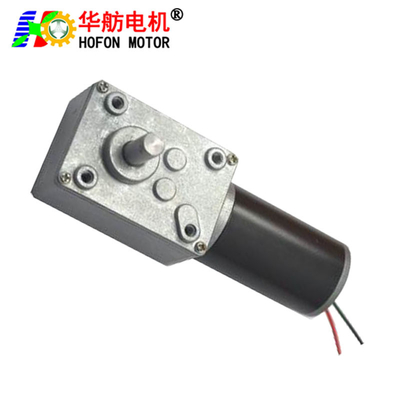

Hofon 40mm 12 24 voltage brushed reductor motor 6V 12v 24V DC micro Worm Gear Motor with Self-locking gearbox

Hofon 40mm 12 24 voltage brushed reductor motor 6V 12v 24V DC micro Worm Gear Motor with Self-locking gearbox

Hofon 40mm 12 24 voltage brushed reductor motor 6V 12v 24V DC micro Worm Gear Motor with Self-locking gearbox
Hofon 40mm 12 24 voltage brushed reductor motor 6V 12v 24V DC micro Worm Gear Motor with Self-locking gearbox
Hofon 40mm 12 24 voltage brushed reductor motor 6V 12v 24V DC micro Worm Gear Motor with Self-locking gearbox
Product Details:
Place of Origin: ShenZhen China
Brand Name: Hofon Motor
Certification: RoHS/ISO9001:2000/ISO14001/TS16949
Model Number: GM4058-3162ZY
Payment & Shipping Terms:
Minimum Order Quantity: 2000PCS
Price: Negotiation
Packaging Details: Carton Box
Delivery Time: 35Days
Supply Ability: 5000KPCS/Month
Contact Now
Detailed Product Description
Voltage Range: 5V Or Customized Material: Metal Gear High Precision Gear
Diameter: 24mm No Load Speed: 98RPM
No Load Current: 32mA Rated Load Torque: 422g.cm
Rated Load Speed: 77RPM Rated Load Current: 122mA
Gear Ratio: 150:1

Hofon 40mm 12 24 voltage brushed reductor motor 6V 12v 24V DC micro Worm Gear Motor with Self-locking gearbox 0

Hofon 40mm 12 24 voltage brushed reductor motor 6V 12v 24V DC micro Worm Gear Motor with Self-locking gearbox 1

Typical Applications:
- Electronic door lock / Monitor / Printer / Robot / Optic equipment / Precision instrument
- Bank equipment / Safe box / Paper feeder / Intelligent gas meter / Tissue machine
- Accessory of automobile / Ad equipment / Analysis instrument / Electronic game machine



Customized Service:

Voltage, speed, torque and other performance parameters can be customized according to requirements.

Shaft length, D-CUT shaft, threaded shaft, encoder, gear box and so on can be customized.



Representative Performance:

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min A r/min A mN.m g.cm w mN.m g.cm A
GM4058-3162ZY02-17 5.0-14.0 12.0V 235 0.120 180 0.500 200 2000 6.000 900.0 9000 2.30
GM4058-3162ZY02-36 5.0-14.0 12.0V 110 0.120 85 0.500 400 4000 6.000 1900.0 19000 2.30
GM4058-3162ZY02-54 5.0-14.0 12.0V 74 0.120 56 0.500 640 6400 6.000 2800.0 28000 2.30
GM4058-3162ZY02-72 5.0-14.0 12.0V 55 0.120 42 0.500 850 8500 6.000 3800.0 38000 2.30
GM4058-3162ZY02-108 5.0-14.0 12.0V 37 0.120 28 0.500 1200 12000 6.000 4000.0 40000MAX 2.30
GM4058-3162ZY02-212 5.0-14.0 12.0V 18 0.120 14 0.500 2500 25000 6.000 4000.0 40000MAX 2.30
GM4058-3162ZY02-280 5.0-14.0 12.0V 14 0.120 11 0.500 3200 32000 6.000 4000.0 40000MAX 2.30
GM4058-3162ZY02-522 5.0-14.0 12.0V 7.5 0.120 6 0.500 5000 50000 6.000 4000.0 40000MAX 2.30
GM4058-3162ZY02-590 5.0-14.0 12.0V 7 0.120 5 0.500 5000 50000 6.000 4000.0 40000MAX 2.30
GM4058-3162ZY01-17 5.0-14.0 12.0V 470 0.38 370 1.4 400 4000 16.8 1700 17000 6.5
GM4058-3162ZY01-36 5.0-14.0 12.0V 222 0.38 174 1.4 800 8000 16.8 3600 36000 6.5
GM4058-3162ZY01-54 5.0-14.0 12.0V 148 0.38 116 1.4 1200 12000 16.8 4000MAX 40000MAX 6.5
GM4058-3162ZY01-72 5.0-14.0 12.0V 110 0.38 87 1.4 1600 16000 16.8 4000MAX 40000MAX 6.5
GM4058-3162ZY01-108 5.0-14.0 12.0V 74 0.38 58 1.4 2500 25000 16.8 4000MAX 40000MAX 6.5
GM4058-3162ZY01-212 5.0-14.0 12.0V 38 0.38 29 1.4 5000 50000 16.8 4000MAX 40000MAX 6.5
GM4058-3162ZY01-280 5.0-14.0 12.0V 28 0.38 22 1.4 5000 50000 16.8 4000MAX 40000MAX 6.5
GM4058-3162ZY01-522 5.0-14.0 12.0V 15 0.38 12 1.4 5000 50000 16.8 4000MAX 40000MAX 6.5
GM4058-3162ZY01-590 5.0-14.0 12.0V 13 0.38 10 1.4 5000 50000 16.8 4000MAX 40000MAX 6.5
GM4058-3162ZY03-17 20.0-25.0 24.0V 300 0.12 210 0.5 400 4000 12.0 1400 14000 2.0
GM4058-3162ZY03-36 20.0-25.0 24.0V 140 0.12 99 0.5 850 8500 12.0 2900 29000 2.0
GM4058-3162ZY03-54 20.0-25.0 24.0V 94 0.12 66 0.5 1200 12000 12.0 4000MAX 40000MAX 2.0
GM4058-3162ZY03-72 20.0-25.0 24.0V 70 0.12 49 0.5 1600 16000 12.0 4000MAX 40000MAX 2.0
GM4058-3162ZY03-108 20.0-25.0 24.0V 47 0.12 33 0.5 2500 25000 12.0 4000MAX 40000MAX 2.0
GM4058-3162ZY03-212 20.0-25.0 24.0V 24 0.12 16 0.5 5000 50000 12.0 4000MAX 40000MAX 2.0
GM4058-3162ZY03-280 20.0-25.0 24.0V 18 0.12 12 0.5 5000 50000 12.0 4000MAX 40000MAX 2.0
GM4058-3162ZY03-522 20.0-25.0 24.0V 9.5 0.12 7 0.5 5000 50000 12.0 4000MAX 40000MAX 2.0
GM4058-3162ZY03-590 20.0-25.0 24.0V 8 0.12 6 0.5 5000 50000 12.0 4000MAX 40000MAX 2.0
GM4058-3162ZY02-17 20.0-25.0 24.0V 470 0.23 370 1.0 400 4000 24.0 1800 18000 4.4
GM4058-3162ZY02-36 20.0-25.0 24.0V 222 0.23 174 1.0 800 8000 24.0 3800 38000 4.4
GM4058-3162ZY02-54 20.0-25.0 24.0V 148 0.23 116 1.0 1200 12000 24.0 4000MAX 40000MAX 4.4
GM4058-3162ZY02-72 20.0-25.0 24.0V 110 0.23 87 1.0 1600 16000 24.0 4000MAX 40000MAX 4.4
GM4058-3162ZY02-108 20.0-25.0 24.0V 74 0.23 58 1.0 2500 25000 24.0 4000MAX 40000MAX 4.4
GM4058-3162ZY02-212 20.0-25.0 24.0V 38 0.23 29 1.0 5000 50000 24.0 4000MAX 40000MAX 4.4
GM4058-3162ZY02-280 20.0-25.0 24.0V 28 0.23 22 1.0 5000 50000 24.0 4000MAX 40000MAX 4.4
GM4058-3162ZY02-522 20.0-25.0 24.0V 15 0.23 12 1.0 7000 70000 24.0 4000MAX 40000MAX 4.4
GM4058-3162ZY02-590 20.0-25.0 24.0V 13 0.23 10 1.0 7000 70000 24.0 4000MAX 40000MAX 4.



Hofon 40mm 12 24 voltage brushed reductor motor 6V 12v 24V DC micro Worm Gear Motor with Self-locking gearbox 2

Hofon 40mm 12 24 voltage brushed reductor motor 6V 12v 24V DC micro Worm Gear Motor with Self-locking gearbox 3

Hofon 40mm 12 24 voltage brushed reductor motor 6V 12v 24V DC micro Worm Gear Motor with Self-locking gearbox 4

Application

Hofon 40mm 12 24 voltage brushed reductor motor 6V 12v 24V DC micro Worm Gear Motor with Self-locking gearbox 5

Company Profile

Hofon 40mm 12 24 voltage brushed reductor motor 6V 12v 24V DC micro Worm Gear Motor with Self-locking gearbox 6

Hofon Precise Motor Limited was founded in the year of 2002, to the establishment of the DC micro motor, small modulus gear motor, brushless motor research and development of the manufacture and sale of customer service professional firms.
Hofon products, specialized R & D and manufacturing in consumer electronics, toys, model aircraft, security, automotive electronics and electronic equipment, office equipment to streamline the development of important pieces of the main zero.
Hofon is more conductive to customer demand, with customers to design and develop new products,specifically in the refined products focused on the needs of customers, shorten the cycle of research and development under the precondition of, and continued to enhance customer satisfaction and productivity and to create a positive Hofon customers out of the trust.

We are committed to the Company's production of the motor and gear components with high quality and reasonable price, fast delivery and high satisfaction of marketing services around the world.

Hofon 40mm 12 24 voltage brushed reductor motor 6V 12v 24V DC micro Worm Gear Motor with Self-locking gearbox 7


Competitive Advantage

Hofon 40mm 12 24 voltage brushed reductor motor 6V 12v 24V DC micro Worm Gear Motor with Self-locking gearbox 8

  • 20 years experience in manufacturing motor and gearbox motor
  • Experienced Staff: average 15 years experience in R&D , ODM & OEM
  • International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
  • Competitive Price
  • High Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 20-25 working days after payment
  • Quality Approvals
  • Small Orders Accepted
  • Advanced equipments: Automatic winding machine, stator automatic setting machine, end cover automatic setting machine, automatic soldering machine, etc



Quality Cotrol Test


  • Reliability Test & Laboratory
  • Noise Test
  • Water-proof Test
  • Life Test
  • Impact Test
  • Storage Test
  • Salt Spray Test
  • Environmental Related Substance
