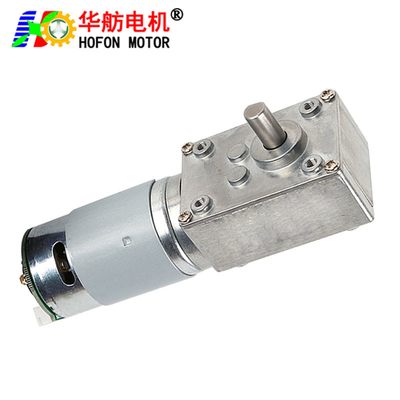

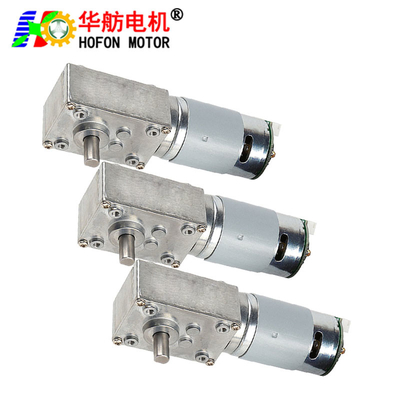

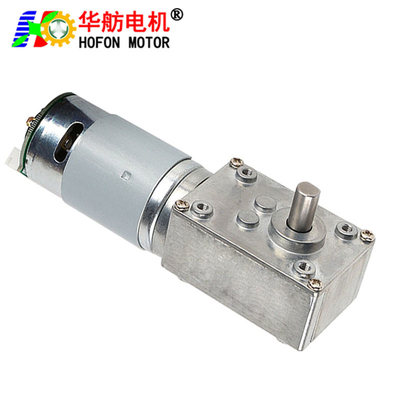

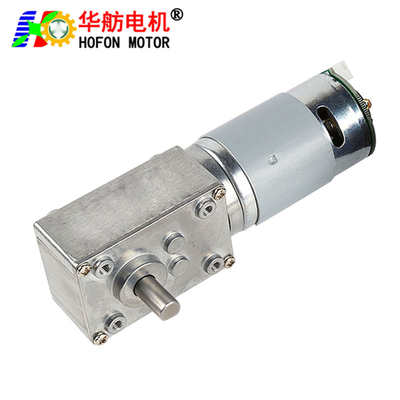

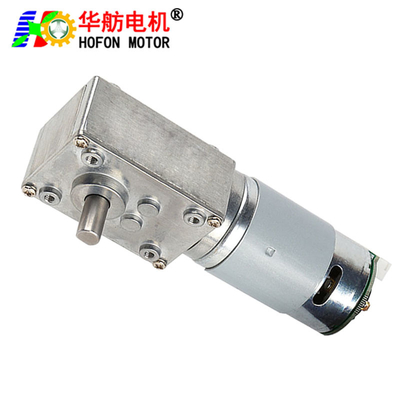

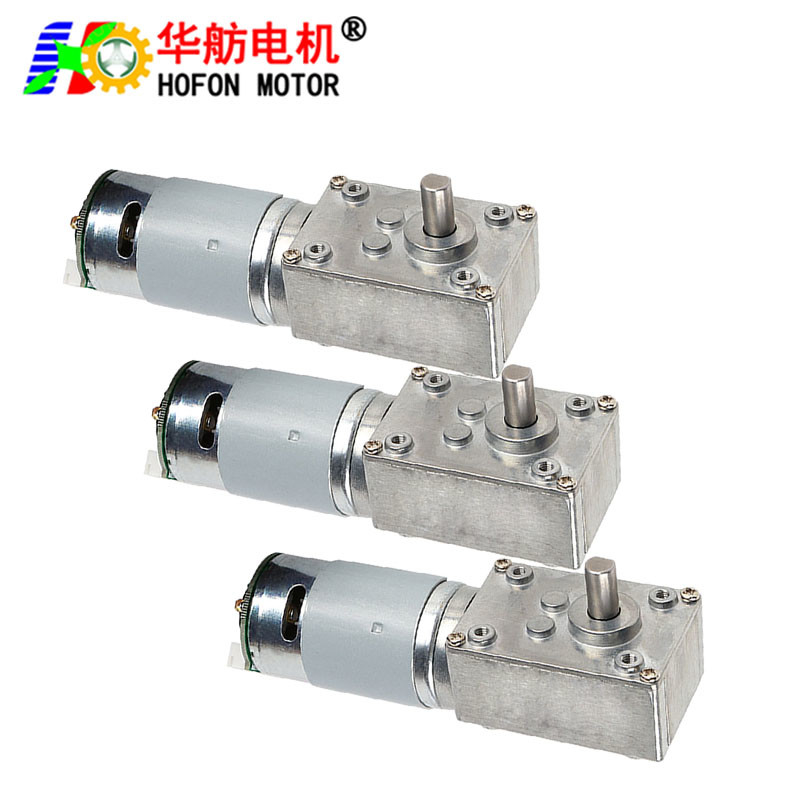

Hofon 40mm encoder brushed reductor motor 12v 24V DC micro Worm Gear Motor with Self-locking gearbox

Hofon 40mm encoder brushed reductor motor 12v 24V DC micro Worm Gear Motor with Self-locking gearbox

Hofon 40mm encoder brushed reductor motor 12v 24V DC micro Worm Gear Motor with Self-locking gearbox
Hofon 40mm encoder brushed reductor motor 12v 24V DC micro Worm Gear Motor with Self-locking gearbox
Hofon 40mm encoder brushed reductor motor 12v 24V DC micro Worm Gear Motor with Self-locking gearbox
Product Details:
Place of Origin: ShenZhen China
Brand Name: Hofon Motor
Certification: RoHS/ISO9001:2000/ISO14001/TS16949
Model Number: GM4058-555SH+EN
Payment & Shipping Terms:
Minimum Order Quantity: 2000PCS
Price: Negotiation
Packaging Details: Carton Box
Delivery Time: 35Days
Supply Ability: 5000KPCS/Month
Contact Now
Detailed Product Description
Voltage Range: 5V Or Customized Material: Metal Gear High Precision Gear
Diameter: 24mm No Load Speed: 98RPM
No Load Current: 32mA Rated Load Torque: 422g.cm
Rated Load Speed: 77RPM Rated Load Current: 122mA
Gear Ratio: 150:1

Hofon 40mm encoder brushed reductor motor 12v 24V DC micro Worm Gear Motor with Self-locking gearbox 0

Hofon 40mm encoder brushed reductor motor 12v 24V DC micro Worm Gear Motor with Self-locking gearbox 1

Typical Applications:
- Electronic door lock / Monitor / Printer / Robot / Optic equipment / Precision instrument
- Bank equipment / Safe box / Paper feeder / Intelligent gas meter / Tissue machine
- Accessory of automobile / Ad equipment / Analysis instrument / Electronic game machine



Customized Service:

Voltage, speed, torque and other performance parameters can be customized according to requirements.

Shaft length, D-CUT shaft, threaded shaft, encoder, gear box and so on can be customized.



Representative Performance:

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min A r/min A mN.m g.cm w mN.m g.cm A
GM4058-555SH01-17+EN 5.0-14.0 12.0V 450 ≤0.5 230 ≤5.0 1000 10000 - ≥2000 ≥20000 ≤13.0
GM4058-555SH01-36+EN 5.0-14.0 12.0V 215 ≤0.5 105 ≤5.0 2000 20000 - ≥4000 ≥40000 ≤13.0
GM4058-555SH01-54+EN 5.0-14.0 12.0V 140 ≤0.5 70 ≤5.0 3000 30000 - ≥6000 ≥60000 ≤13.0
GM4058-555SH01-72+EN 5.0-14.0 12.0V 105 ≤0.5 54 ≤5.0 4000 40000 - 6855.0 70000MAX ≤13.0
GM4058-555SH01-108+EN 5.0-14.0 12.0V 72 ≤0.5 36 ≤5.0 60000 60000 - 6856.0 70000MAX ≤13.0
GM4058-555SH01-212+EN 5.0-14.0 12.0V 36 ≤0.5 18 ≤5.0 70000 70000 - 6856.0 70000MAX ≤13.0
GM4058-555SH01-280+EN 5.0-14.0 12.0V 28 ≤0.5 19 ≤5.0 70000 70000 - 6856.0 70000MAX ≤13.0
GM4058-555SH01-590+EN 5.0-14.0 12.0V 15 ≤0.5 13 ≤5.0 70000 70000 - 6856.0 70000MAX ≤13.0
GM4058-555SH01-776+EN 5.0-14.0 12.0V 10 ≤0.5 9 ≤5.0 70000 70000 - 6856.0 70000MAX ≤13.0
GM4058-555SH01-17+EN 20.0-25.0 24.0V 900 ≤0.65 460 ≤10.0 1960 20000 - ≥3921 ≥40000 ≤26.0
GM4058-555SH01-36+EN 20.0-25.0 24.0V 430 ≤0.65 210 ≤10.0 3920 40000 - 6858.0 70000MAX ≤26.0
GM4058-555SH01-54+EN 20.0-25.0 24.0V 280 ≤0.65 140 ≤10.0 5882 60000 - 6858.0 70000MAX ≤26.0
GM4058-555SH01-72+EN 20.0-25.0 24.0V 210 ≤0.65 125 ≤9.0 6862 70000 - 6858.0 70000MAX ≤26.0
GM4058-555SH01-108+EN 20.0-25.0 24.0V 145 ≤0.65 85 ≤8.0 6862 70000 - 6858.0 70000MAX ≤26.0
GM4058-555SH01-212+EN 20.0-25.0 24.0V 72 ≤0.65 45 ≤6.5 6862 70000   6858.0 70000MAX ≤26.0
GM4058-555SH01-280+EN 20.0-25.0 24.0V 56 ≤0.65 41 ≤5.0 6862 70000 - 6858.0 70000MAX ≤26.0
GM4058-555SH01-590+EN 20.0-25.0 24.0V 30 ≤0.65 27 ≤4.0 6862 70000 - 6858.0 70000MAX ≤26.0
GM4058-555SH01-776+EN 20.0-25.0 24.0V 20 ≤0.65 18 ≤3.5 6862 70000 - 6858.0 70000MAX ≤26.0



Hofon 40mm encoder brushed reductor motor 12v 24V DC micro Worm Gear Motor with Self-locking gearbox 2

Hofon 40mm encoder brushed reductor motor 12v 24V DC micro Worm Gear Motor with Self-locking gearbox 3

Hofon 40mm encoder brushed reductor motor 12v 24V DC micro Worm Gear Motor with Self-locking gearbox 4

Application

Hofon 40mm encoder brushed reductor motor 12v 24V DC micro Worm Gear Motor with Self-locking gearbox 5

Company Profile

Hofon 40mm encoder brushed reductor motor 12v 24V DC micro Worm Gear Motor with Self-locking gearbox 6

Hofon Precise Motor Limited was founded in the year of 2002, to the establishment of the DC micro motor, small modulus gear motor, brushless motor research and development of the manufacture and sale of customer service professional firms.
Hofon products, specialized R & D and manufacturing in consumer electronics, toys, model aircraft, security, automotive electronics and electronic equipment, office equipment to streamline the development of important pieces of the main zero.
Hofon is more conductive to customer demand, with customers to design and develop new products,specifically in the refined products focused on the needs of customers, shorten the cycle of research and development under the precondition of, and continued to enhance customer satisfaction and productivity and to create a positive Hofon customers out of the trust.

We are committed to the Company's production of the motor and gear components with high quality and reasonable price, fast delivery and high satisfaction of marketing services around the world.

Hofon 40mm encoder brushed reductor motor 12v 24V DC micro Worm Gear Motor with Self-locking gearbox 7


Competitive Advantage

Hofon 40mm encoder brushed reductor motor 12v 24V DC micro Worm Gear Motor with Self-locking gearbox 8

  • 20 years experience in manufacturing motor and gearbox motor
  • Experienced Staff: average 15 years experience in R&D , ODM & OEM
  • International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
  • Competitive Price
  • High Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 20-25 working days after payment
  • Quality Approvals
  • Small Orders Accepted
  • Advanced equipments: Automatic winding machine, stator automatic setting machine, end cover automatic setting machine, automatic soldering machine, etc



Quality Cotrol Test


  • Reliability Test & Laboratory
  • Noise Test
  • Water-proof Test
  • Life Test
  • Impact Test
  • Storage Test
  • Salt Spray Test
  • Environmental Related Substance
