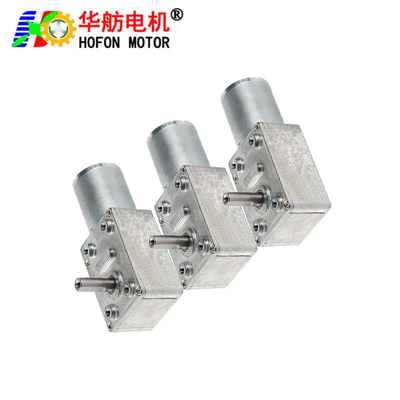

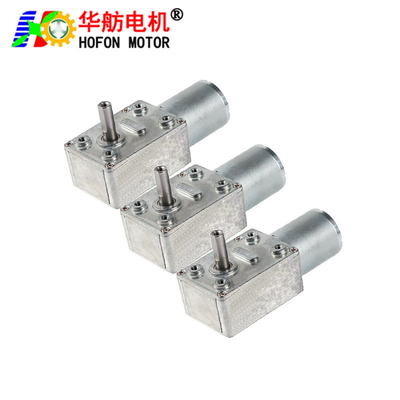

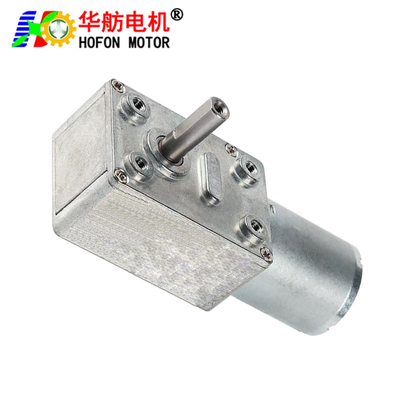

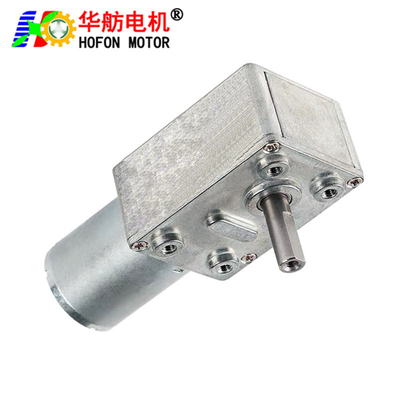

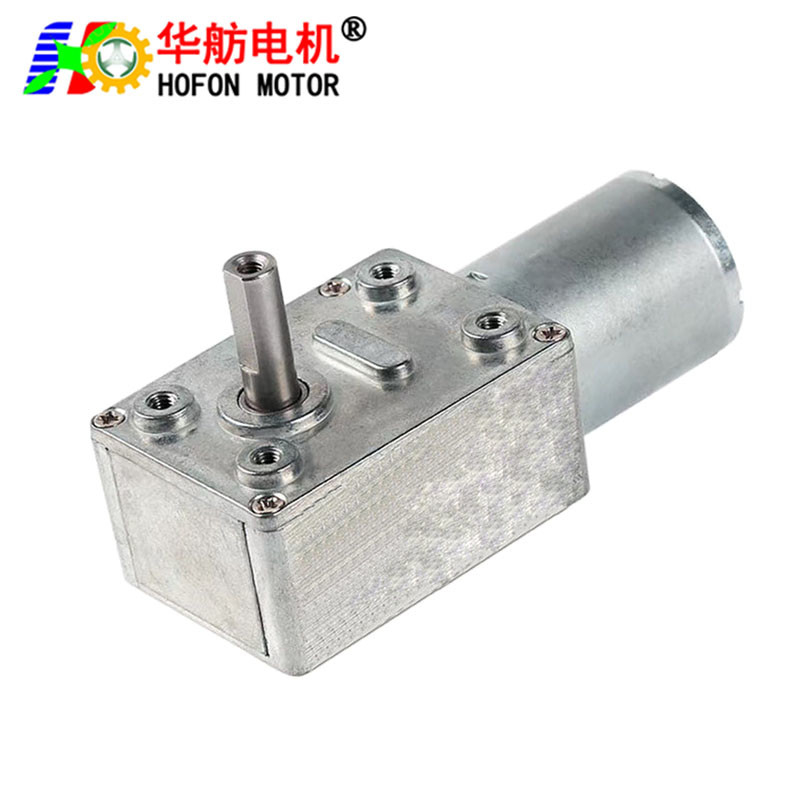

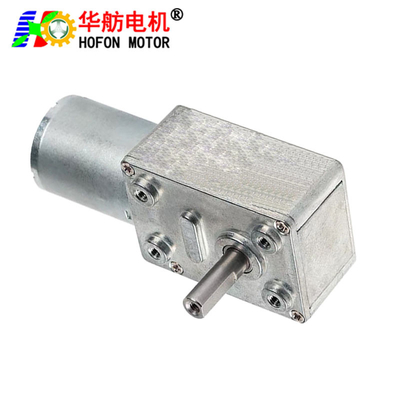

Hofon 32mm large torque brushed reductor motor 12v DC micro Worm Gear Motor with Self-locking gearbo

Hofon 32mm large torque brushed reductor motor 12v DC micro Worm Gear Motor with Self-locking gearbo

Hofon 32mm large torque brushed reductor motor 12v DC micro Worm Gear Motor with Self-locking gearbo
Hofon 32mm large torque brushed reductor motor 12v DC micro Worm Gear Motor with Self-locking gearbo
Hofon 32mm large torque brushed reductor motor 12v DC micro Worm Gear Motor with Self-locking gearbo
Product Details:
Place of Origin: ShenZhen China
Brand Name: Hofon Motor
Certification: RoHS/ISO9001:2000/ISO14001/TS16949
Model Number: GM4632-370CH
Payment & Shipping Terms:
Minimum Order Quantity: 2000PCS
Price: Negotiation
Packaging Details: Carton Box
Delivery Time: 35Days
Supply Ability: 5000KPCS/Month
Contact Now
Detailed Product Description
Voltage Range: 5V Or Customized Material: Metal Gear High Precision Gear
Diameter: 24mm No Load Speed: 98RPM
No Load Current: 32mA Rated Load Torque: 422g.cm
Rated Load Speed: 77RPM Rated Load Current: 122mA
Gear Ratio: 150:1

Hofon 32mm large torque brushed reductor motor 12v DC micro Worm Gear Motor with Self-locking gearbo 0

Hofon 32mm large torque brushed reductor motor 12v DC micro Worm Gear Motor with Self-locking gearbo 1

Typical Applications:
- Electronic door lock / Monitor / Printer / Robot / Optic equipment / Precision instrument
- Bank equipment / Safe box / Paper feeder / Intelligent gas meter / Tissue machine
- Accessory of automobile / Ad equipment / Analysis instrument / Electronic game machine



Customized Service:

Voltage, speed, torque and other performance parameters can be customized according to requirements.

Shaft length, D-CUT shaft, threaded shaft, encoder, gear box and so on can be customized.



Representative Performance:

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min A r/min A mN.m g.cm w mN.m g.cm A
GM4632-370CH01-32 20.0-26.0 24.0V 375 0.180 264 0.600 320 3200 14.400 800.0 8000 2.60
GM4632-370CH01-65 20.0-26.0 24.0V 180 0.180 130 0.600 650 6500 14.400 1500.0 15000 2.60
GM4632-370CH01-158 20.0-26.0 24.0V 75 0.180 53 0.600 1300 13000 14.400 3000MAX 30000MAX 2.60
GM4632-370CH01-200 20.0-26.0 24.0V 60 0.180 42 0.600 1500 15000 14.400 3000MAX 30000MAX 2.60
GM4632-370CH01-337 20.0-26.0 24.0V 35 0.180 25 0.600 2000 20000 14.400 3000MAX 30000MAX 2.60
GM4632-370CH01-564 20.0-26.0 24.0V 21 0.180 15 0.600 2500 25000 14.400 3000MAX 30000MAX 2.60
GM4632-370CH01-1019 20.0-26.0 24.0V 12 0.180 8 0.600 3000 30000 14.400 3000MAX 30000MAX 2.60
GM4632-370CH01-32 6.0-14.0 12.0V 180 0.120 132 0.320 120 1200 3.840 500.0 5000 1.20
GM4632-370CH01-65 6.0-14.0 12.0V 92 0.120 70 0.320 250 2500 3.840 800.0 8000 1.20
GM4632-370CH01-158 6.0-14.0 12.0V 38 0.120 27 0.320 600 6000 3.840 2000.0 20000 1.20
GM4632-370CH01-200 6.0-14.0 12.0V 30 0.120 22 0.320 750 7500 3.840 3000MAX 30000MAX 1.20
GM4632-370CH01-337 6.0-14.0 12.0V 18 0.120 13 0.320 1300 13000 3.840 3000MAX 30000MAX 1.20
GM4632-370CH01-564 6.0-14.0 12.0V 10 0.120 8 0.320 2000 20000 3.840 3000MAX 30000MAX 1.20
GM4632-370CH01-1019 6.0-14.0 12.0V 6 0.120 4 0.320 3000 30000 3.840 3000MAX 30000MAX 1.20
GM4632-370CH02-32 6.0-14.0 12.0V 375 0.180 264 2.100 320 3200 25.200 800.0 8000 5.20
GM4632-370CH02-65 6.0-14.0 12.0V 180 0.180 130 2.100 650 6500 25.200 1500.0 15000 5.20
GM4632-370CH02-158 6.0-14.0 12.0V 75 0.180 53 2.100 1300 13000 25.200 3000MAX 30000MAX 5.20
GM4632-370CH02-200 6.0-14.0 12.0V 60 0.180 42 2.100 1500 15000 25.200 3000MAX 30000MAX 5.20
GM4632-370CH02-337 6.0-14.0 12.0V 35 0.180 25 2.100 2000 20000 25.200 3000MAX 30000MAX 5.20
GM4632-370CH02-564 6.0-14.0 12.0V 21 0.180 15 2.100 2500 25000 25.200 3000MAX 30000MAX 5.20
GM4632-370CH02-1019 6.0-14.0 12.0V 12 0.180 8 2.100 3000 30000 25.200 3000MAX 30000MAX 5.20
GM4632-370CH02-32 3.0-8.0 6.0V 180 0.100 132 1.200 120 1200 7.200 500.0 5000 2.50
GM4632-370CH02-65 3.0-8.0 6.0V 92 0.100 70 1.200 250 2500 7.200 800.0 8000 2.50
GM4632-370CH02-158 3.0-8.0 6.0V 38 0.100 27 1.200 600 6000 7.200 2000.0 20000 2.50
GM4632-370CH02-200 3.0-8.0 6.0V 30 0.100 22 1.200 750 7500 7.200 3000MAX 30000MAX 2.50
GM4632-370CH02-337 3.0-8.0 6.0V 18 0.100 13 1.200 1300 13000 7.200 3000MAX 30000MAX 2.50
GM4632-370CH02-564 3.0-8.0 6.0V 10 0.100 8 1.200 2000 20000 7.200 3000MAX 30000MAX 2.50
GM4632-370CH02-1019 3.0-8.0 6.0V 6 0.100 4 1.200 3000 30000 7.200 3000MAX 30000MAX 2.50



Hofon 32mm large torque brushed reductor motor 12v DC micro Worm Gear Motor with Self-locking gearbo 2

Hofon 32mm large torque brushed reductor motor 12v DC micro Worm Gear Motor with Self-locking gearbo 3

Hofon 32mm large torque brushed reductor motor 12v DC micro Worm Gear Motor with Self-locking gearbo 4

Application

Hofon 32mm large torque brushed reductor motor 12v DC micro Worm Gear Motor with Self-locking gearbo 5

Company Profile

Hofon 32mm large torque brushed reductor motor 12v DC micro Worm Gear Motor with Self-locking gearbo 6

Hofon Precise Motor Limited was founded in the year of 2002, to the establishment of the DC micro motor, small modulus gear motor, brushless motor research and development of the manufacture and sale of customer service professional firms.
Hofon products, specialized R & D and manufacturing in consumer electronics, toys, model aircraft, security, automotive electronics and electronic equipment, office equipment to streamline the development of important pieces of the main zero.
Hofon is more conductive to customer demand, with customers to design and develop new products,specifically in the refined products focused on the needs of customers, shorten the cycle of research and development under the precondition of, and continued to enhance customer satisfaction and productivity and to create a positive Hofon customers out of the trust.

We are committed to the Company's production of the motor and gear components with high quality and reasonable price, fast delivery and high satisfaction of marketing services around the world.

Hofon 32mm large torque brushed reductor motor 12v DC micro Worm Gear Motor with Self-locking gearbo 7


Competitive Advantage

Hofon 32mm large torque brushed reductor motor 12v DC micro Worm Gear Motor with Self-locking gearbo 8

  • 20 years experience in manufacturing motor and gearbox motor
  • Experienced Staff: average 15 years experience in R&D , ODM & OEM
  • International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
  • Competitive Price
  • High Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 20-25 working days after payment
  • Quality Approvals
  • Small Orders Accepted
  • Advanced equipments: Automatic winding machine, stator automatic setting machine, end cover automatic setting machine, automatic soldering machine, etc



Quality Cotrol Test


  • Reliability Test & Laboratory
  • Noise Test
  • Water-proof Test
  • Life Test
  • Impact Test
  • Storage Test
  • Salt Spray Test
  • Environmental Related Substance

Certifications

Hofon 32mm large torque brushed reductor motor 12v DC micro Worm Gear Motor with Self-locking gearbo 9



Exhibition

Hofon 32mm large torque brushed reductor motor 12v DC micro Worm Gear Motor with Self-locking gearbo 10



Packaging & Shipping

Hofon 32mm large torque brushed reductor motor 12v DC micro Worm Gear Motor with Self-locking gearbo 11

Hofon 32mm large torque brushed reductor motor 12v DC micro Worm Gear Motor with Self-locking gearbo 12

Hofon 32mm large torque brushed reductor motor 12v DC micro Worm Gear Motor with Self-locking gearbo 13
