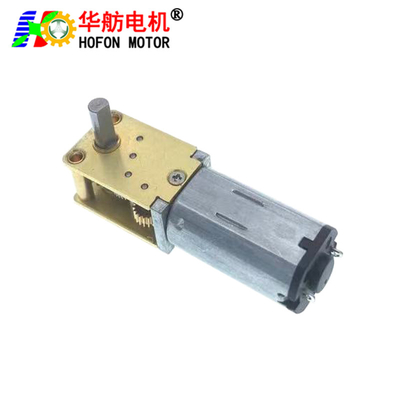

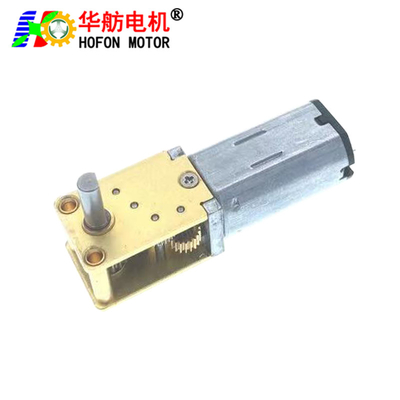

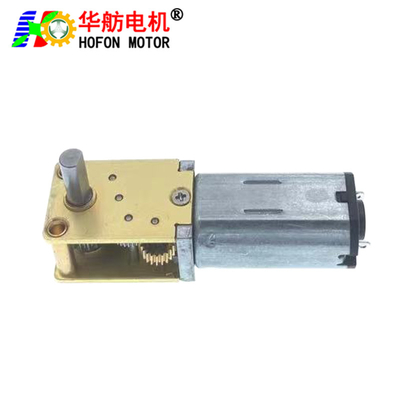

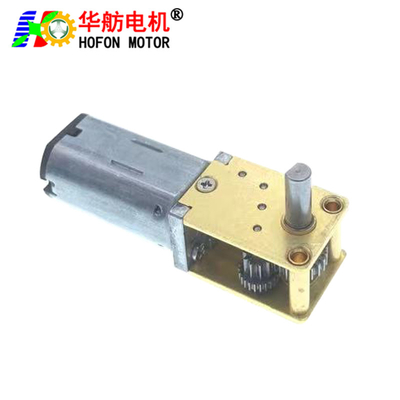

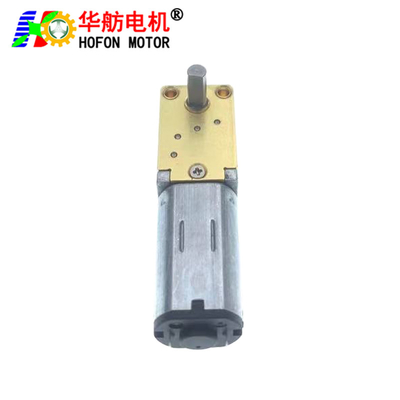

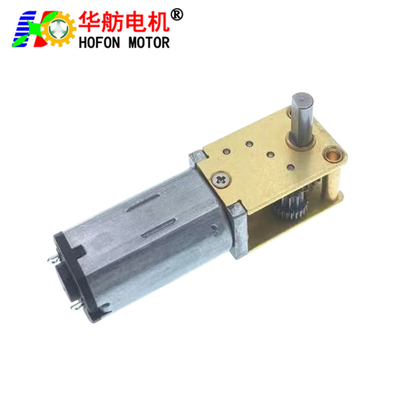

Hofon 12mm N30 large torque with Self-locking function DC Worm Gear Motor for Smart Lock

Hofon 12mm N30 large torque with Self-locking function DC Worm Gear Motor for Smart Lock

  • Hofon 12mm N30 large torque with Self-locking function DC Worm Gear Motor for Smart Lock
  • Hofon 12mm N30 large torque with Self-locking function DC Worm Gear Motor for Smart Lock
  • Hofon 12mm N30 large torque with Self-locking function DC Worm Gear Motor for Smart Lock
  • Hofon 12mm N30 large torque with Self-locking function DC Worm Gear Motor for Smart Lock
  • Hofon 12mm N30 large torque with Self-locking function DC Worm Gear Motor for Smart Lock
  • Hofon 12mm N30 large torque with Self-locking function DC Worm Gear Motor for Smart Lock
Hofon 12mm N30 large torque with Self-locking function DC Worm Gear Motor for Smart Lock
Product Details:
Place of Origin: ShenZhen China
Brand Name: Hofon Motor
Certification: RoHS/ISO9001:2000/ISO14001/TS16949
Model Number: GM1210-N30VA
Payment & Shipping Terms:
Minimum Order Quantity: 2000PCS
Price: Negotiation
Packaging Details: Carton Box
Delivery Time: 35Days
Supply Ability: 5000KPCS/Month
Contact Now
Detailed Product Description
Voltage Range: 5V Or Customized Material: Metal Gear High Precision Gear
Diameter: 24mm No Load Speed: 98RPM
No Load Current: 32mA Rated Load Torque: 422g.cm
Rated Load Speed: 77RPM Rated Load Current: 122mA
Gear Ratio: 150:1

Hofon 12mm N30 large torque with Self-locking function DC Worm Gear Motor for Smart Lock 0

Hofon 12mm N30 large torque with Self-locking function DC Worm Gear Motor for Smart Lock 1

Typical Applications:
- Electronic door lock / Monitor / Printer / Robot / Optic equipment / Precision instrument
- Bank equipment / Safe box / Paper feeder / Intelligent gas meter / Tissue machine
- Accessory of automobile / Ad equipment / Analysis instrument / Electronic game machine



Customized Service:

Voltage, speed, torque and other performance parameters can be customized according to requirements.

Shaft length, D-CUT shaft, threaded shaft, encoder, gear box and so on can be customized.



Representative Performance:



MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min A r/min A mN.m g.cm w mN.m g.cm A
GM1210F-N30VA-09210-42 1.5-5.0 3.0V 147 0.020 114 0.070 8.4 84 0.210 18.5 185 0.28
GM1210F-N30VA-09210-118 1.5-5.0 3.0V 52 0.020 40 0.070 23.6 236 0.210 51.9 519 0.28
GM1210F-N30VA-09210-236 1.5-5.0 3.0V 26 0.020 20 0.070 47.2 472 0.210 103.8 1038 0.28
GM1210F-N30VA-09210-300 1.5-5.0 3.0V 20 0.020 16 0.070 60 600 0.210 132.0 1320 0.28
GM1210F-N30VA-09210-603 1.5-5.0 3.0V 10 0.020 8 0.070 120 1200 0.210 300MAX 3000MAX 0.28
GM1210F-N30VA-09210-42 3.0-8.0 6.0V 295 0.030 228 0.100 8.4 84 0.420 36.9 369 0.56
GM1210F-N30VA-09210-118 3.0-8.0 6.0V 105 0.030 81 0.100 23.6 236 0.420 103.8 1038 0.56
GM1210F-N30VA-09210-236 3.0-8.0 6.0V 52 0.030 40 0.100 47.2 472 0.420 207.6 2076 0.56
GM1210F-N30VA-09210-300 3.0-8.0 6.0V 41 0.030 32 0.100 60 600 0.420 264.0 2640 0.56
GM1210F-N30VA-09210-603 3.0-8.0 6.0V 20 0.030 15 0.100 120 1200 0.420 300MAX 3000MAX 0.56
GM1210F-N30VA-12120-42 1.5-5.0 3.0V 214 0.060 169 0.280 16.3 163 0.840 30.2 302 0.70
GM1210F-N30VA-12120-118 1.5-5.0 3.0V 76 0.060 60 0.280 46 460 0.840 84.9 849 0.70
GM1210F-N30VA-12120-236 1.5-5.0 3.0V 38 0.060 30 0.280 92 920 0.840 169.9 1699 0.70
GM1210F-N30VA-12120-300 1.5-5.0 3.0V 30 0.060 23 0.280 117 1170 0.840 216.0 2160 0.70
GM1210F-N30VA-12120-603 1.5-5.0 3.0V 15 0.060 12 0.280 235 2350 0.840 300MAX 3000MAX 0.70
GM1210F-N30VA-12120-42 3.0-8.0 5.0V 357 0.080 283 0.303 27.3 273 1.500 109.2 1092 1.14
GM1210F-N30VA-12120-118 3.0-8.0 5.0V 127 0.080 100 0.303 76.7 767 1.500 300MAX 3000MAX 1.14
GM1210F-N30VA-12120-236 3.0-8.0 5.0V 63 0.080 50 0.303 153.4 1534 1.500 300MAX 3000MAX 1.14
GM1210F-N30VA-12120-300 3.0-8.0 5.0V 50 0.080 39 0.303 195 1950 1.500 300MAX 3000MAX 1.14
GM1210F-N30VA-12120-603 3.0-8.0 5.0V 24 0.080 19 0.303 300 3000 1.500 300MAX 3000MAX 1.14



 Hofon 12mm N30 large torque with Self-locking function DC Worm Gear Motor for Smart Lock 2

 Hofon 12mm N30 large torque with Self-locking function DC Worm Gear Motor for Smart Lock 3

Hofon 12mm N30 large torque with Self-locking function DC Worm Gear Motor for Smart Lock 4

Application

Hofon 12mm N30 large torque with Self-locking function DC Worm Gear Motor for Smart Lock 5

Material Warehouse



Metal Electric Stepper Motor , 5V or Customized Voltage Range Step Motor



Metal Electric Stepper Motor , 5V or Customized Voltage Range Step Motor



Production workshop



Metal Electric Stepper Motor , 5V or Customized Voltage Range Step Motor



Metal Electric Stepper Motor , 5V or Customized Voltage Range Step Motor



Dust-free Production workshop



Metal Electric Stepper Motor , 5V or Customized Voltage Range Step Motor



Metal Electric Stepper Motor , 5V or Customized Voltage Range Step Motor



Test Equipment



Beauty Equipment Use Mini Electric Vacuum Pump with Precious Metal Brush



Beauty Equipment Use Mini Electric Vacuum Pump with Precious Metal Brush


Competitive Advantage


  • 16 years experience in manufacturing motor and gearbox motor
  • Experienced Staff: average 12 years experience in R&D , ODM & OEM
  • International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
  • Competitive Price
  • High Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 20-25 working days after payment
  • Quality Approvals
  • Small Orders Accepted
  • Advanced equipments: Automatic winding machine, stator automatic setting machine, end cover automatic setting machine, automatic soldering machine, etc



Quality Cotrol Test


  • Reliability Test & Laboratory
  • Noise Test
  • Water-proof Test
  • Life Test
  • Impact Test
  • Storage Test
  • Salt Spray Test
  • Environmental Related Substance
