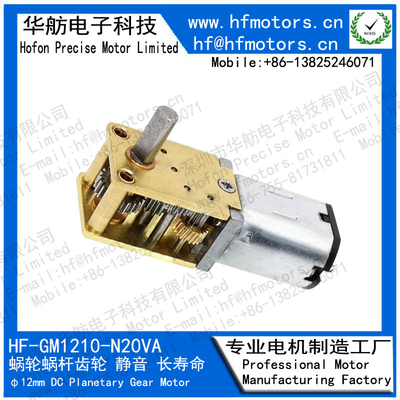

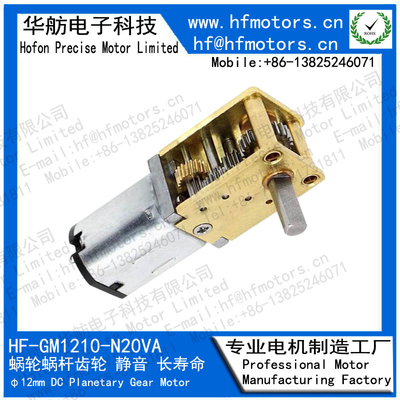

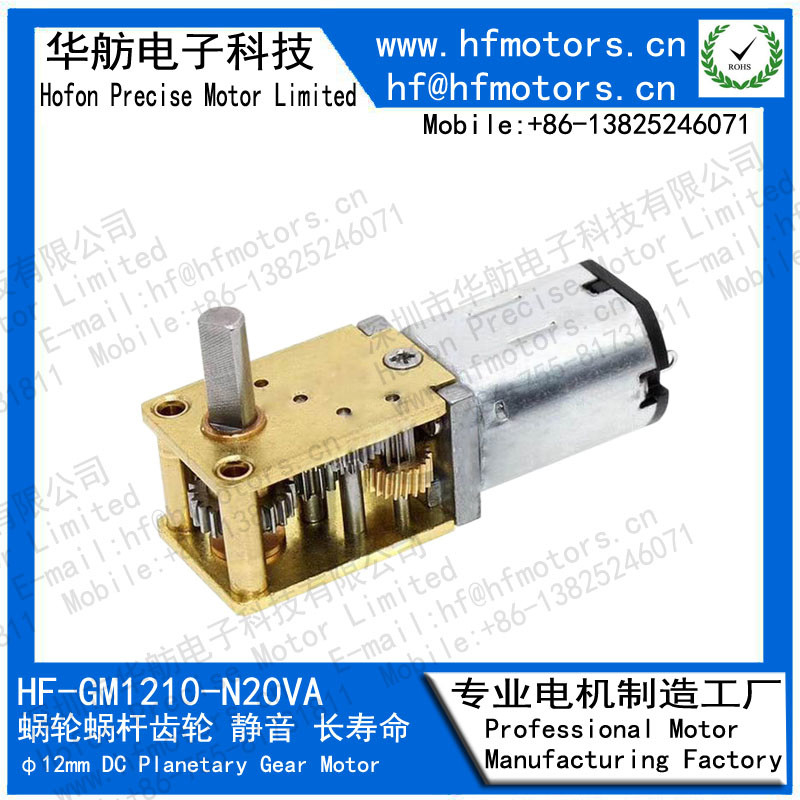

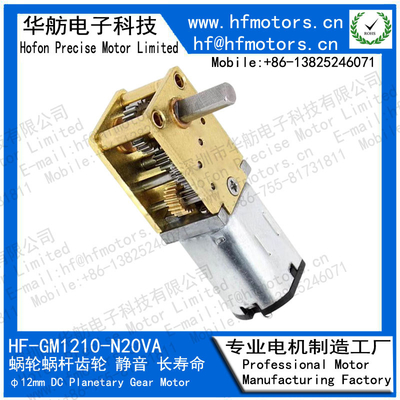

Hofon Motor 12mm large torque with Self-locking function DC Worm Gear Motor for Smart Lock

Hofon Motor 12mm large torque with Self-locking function DC Worm Gear Motor for Smart Lock

  • Hofon Motor 12mm large torque with Self-locking function DC Worm Gear Motor for Smart Lock
  • Hofon Motor 12mm large torque with Self-locking function DC Worm Gear Motor for Smart Lock
  • Hofon Motor 12mm large torque with Self-locking function DC Worm Gear Motor for Smart Lock
  • Hofon Motor 12mm large torque with Self-locking function DC Worm Gear Motor for Smart Lock
Hofon Motor 12mm large torque with Self-locking function DC Worm Gear Motor for Smart Lock
Product Details:
Place of Origin: ShenZhen China
Brand Name: Hofon Motor
Certification: RoHS/ISO9001:2000/ISO14001/TS16949
Model Number: GM1210-N20VA
Payment & Shipping Terms:
Minimum Order Quantity: 2000PCS
Price: Negotiation
Packaging Details: Carton Box
Delivery Time: 35Days
Supply Ability: 5000KPCS/Month
Contact Now
Detailed Product Description
Voltage Range: 5V Or Customized Material: Metal Gear High Precision Gear
Diameter: 24mm No Load Speed: 98RPM
No Load Current: 32mA Rated Load Torque: 422g.cm
Rated Load Speed: 77RPM Rated Load Current: 122mA
Gear Ratio: 150:1

Hofon Motor 12mm large torque with Self-locking function DC Worm Gear Motor for Smart Lock 0

Hofon Motor 12mm large torque with Self-locking function DC Worm Gear Motor for Smart Lock 1

Typical Applications:
- Electronic door lock / Monitor / Printer / Robot / Optic equipment / Precision instrument
- Bank equipment / Safe box / Paper feeder / Intelligent gas meter / Tissue machine
- Accessory of automobile / Ad equipment / Analysis instrument / Electronic game machine



Customized Service:

Voltage, speed, torque and other performance parameters can be customized according to requirements.

Shaft length, D-CUT shaft, threaded shaft, encoder, gear box and so on can be customized.



Representative Performance:



MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min A r/min A mN.m g.cm w mN.m g.cm A
GM1210F-N20VA-08230-42 1.5-5.0 3.0V 178 0.025 250 0.065 8.4 84 0.195 46.2 462 0.25
GM1210F-N20VA-08230-118 1.5-5.0 3.0V 63 0.025 88 0.065 23.6 236 0.195 120.0 1200 0.25
GM1210F-N20VA-08230-236 1.5-5.0 3.0V 30 0.025 44 0.065 47.2 472 0.195 259.6 2596 0.25
GM1210F-N20VA-08230-300 1.5-5.0 3.0V 25 0.025 35 0.065 60 600 0.195 300MAX 3000MAX 0.25
GM1210F-N20VA-08230-603 1.5-5.0 3.0V 12 0.025 17 0.065 120 1200 0.195 300MAX 3000MAX 0.25
GM1210F-N20VA-08230-42 3.0-7.0 5.0V 285 0.035 415 0.095 14 140 0.475 35.0 770 0.39
GM1210F-N20VA-08230-118 3.0-7.0 5.0V 100 0.035 145 0.095 39.3 393 0.475 60.0 2000 0.39
GM1210F-N20VA-08230-236 3.0-7.0 5.0V 50 0.035 72 0.095 78.6 786 0.475 300MAX 3000MAX 0.39
GM1210F-N20VA-08230-300 3.0-7.0 5.0V 40 0.035 58 0.095 1000 1000 0.475 300MAX 3000MAX 0.39
GM1210F-N20VA-08230-603 3.0-7.0 5.0V 20 0.035 28 0.095 200 2000 0.475 300MAX 3000MAX 0.39
GM1210F-N20VA-09175-42 1.5-5.0 3.0V 235 0.030 207 0.110 8.4 84 0.330 24.0 336 0.39
GM1210F-N20VA-09175-118 1.5-5.0 3.0V 83 0.030 73 0.110 23.6 236 0.330 40.0 944 0.39
GM1210F-N20VA-09175-236 1.5-5.0 3.0V 41 0.030 36 0.110 47.2 472 0.330 72.0 1888 0.39
GM1210F-N20VA-09175-300 1.5-5.0 3.0V 33 0.030 29 0.110 60 600 0.330 300MAX 3000MAX 0.39
GM1210F-N20VA-09175-603 1.5-5.0 3.0V 16 0.030 14 0.110 120 1200 0.330 300MAX 3000MAX 0.39
GM1210F-N20VA-09175-42 3.0-8.0 6.0V 470 0.040 414 0.130 16.8 168 0.780 40.5 672 0.80
GM1210F-N20VA-09175-118 3.0-8.0 6.0V 166 0.040 146 0.130 47.2 472 0.780 67.5 1888 0.80
GM1210F-N20VA-09175-236 3.0-8.0 6.0V 82 0.040 72 0.130 94.4 944 0.780 300MAX 3000MAX 0.80
GM1210F-N20VA-09175-300 3.0-8.0 6.0V 66 0.040 58 0.130 120 1200 0.780 300MAX 3000MAX 0.80
GM1210F-N20VA-09175-603 3.0-8.0 6.0V 32 0.040 28 0.130 240 2400 0.780 300MAX 3000MAX 0.80
GM1210F-N20VA-12105-42 3.0-7.0 5.0V 619 0.075 488 0.380 21 210 1.900 65.0 882 1.73
GM1210F-N20VA-12105-118 3.0-7.0 5.0V 220 0.075 173 0.380 59 590 1.900 108.0 2478 1.73
GM1210F-N20VA-12105-236 3.0-7.0 5.0V 110 0.075 86 0.380 118 1180 1.900 300MAX 3000MAX 1.73
GM1210F-N20VA-12105-300 3.0-7.0 5.0V 86 0.075 68 0.380 150 1500 1.900 300MAX 3000MAX 1.73
GM1210F-N20VA-12105-603 3.0-7.0 5.0V 43 0.075 33 0.380 301 3015 1.900 300MAX 3000MAX 1.73
GM1210F-N20VA-06360-42 3.0-7.0 5.0V 190 0.015 138 0.050 8.4 84 0.250 25.2 252 0.15
GM1210F-N20VA-06360-118 3.0-7.0 5.0V 67 0.015 49 0.050 23.6 236 0.250 70.8 708 0.15
GM1210F-N20VA-06360-236 3.0-7.0 5.0V 33 0.015 24 0.050 47.2 472 0.250 141.6 1416 0.15
GM1210F-N20VA-06360-300 3.0-7.0 5.0V 26 0.015 19 0.050 60 600 0.250 180.0 1800 0.15
GM1210F-N20VA-06360-603 3.0-7.0 5.0V 13 0.015 9 0.050 120 1200 0.250 300MAX 3000MAX 0.15



 Hofon Motor 12mm large torque with Self-locking function DC Worm Gear Motor for Smart Lock 2

 Hofon Motor 12mm large torque with Self-locking function DC Worm Gear Motor for Smart Lock 3

Hofon Motor 12mm large torque with Self-locking function DC Worm Gear Motor for Smart Lock 4

Application

Hofon Motor 12mm large torque with Self-locking function DC Worm Gear Motor for Smart Lock 5

Material Warehouse



Metal Electric Stepper Motor , 5V or Customized Voltage Range Step Motor



Metal Electric Stepper Motor , 5V or Customized Voltage Range Step Motor



Production workshop



Metal Electric Stepper Motor , 5V or Customized Voltage Range Step Motor



Metal Electric Stepper Motor , 5V or Customized Voltage Range Step Motor



Dust-free Production workshop



Metal Electric Stepper Motor , 5V or Customized Voltage Range Step Motor



Metal Electric Stepper Motor , 5V or Customized Voltage Range Step Motor



Test Equipment



Beauty Equipment Use Mini Electric Vacuum Pump with Precious Metal Brush



Beauty Equipment Use Mini Electric Vacuum Pump with Precious Metal Brush


Competitive Advantage


  • 16 years experience in manufacturing motor and gearbox motor
  • Experienced Staff: average 12 years experience in R&D , ODM & OEM
  • International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
  • Competitive Price
  • High Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 20-25 working days after payment
  • Quality Approvals
  • Small Orders Accepted
  • Advanced equipments: Automatic winding machine, stator automatic setting machine, end cover automatic setting machine, automatic soldering machine, etc



Quality Cotrol Test


  • Reliability Test & Laboratory
  • Noise Test
  • Water-proof Test
  • Life Test
  • Impact Test
  • Storage Test
  • Salt Spray Test
  • Environmental Related Substance

Hofon Motor 12mm large torque with Self-locking function DC Worm Gear Motor for Smart Lock 14
