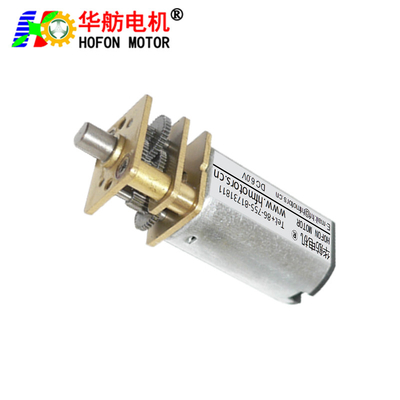

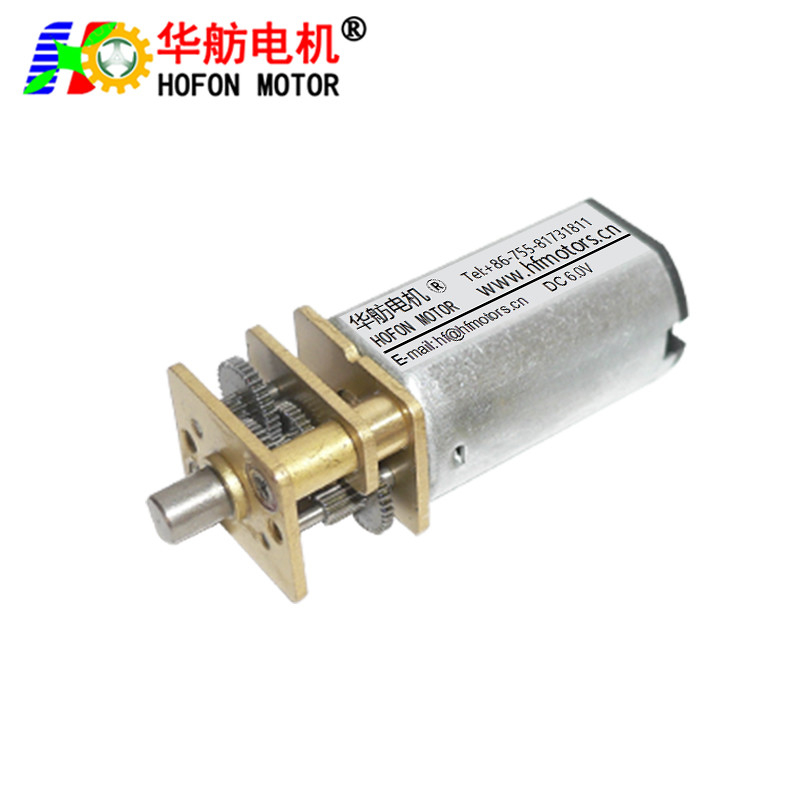

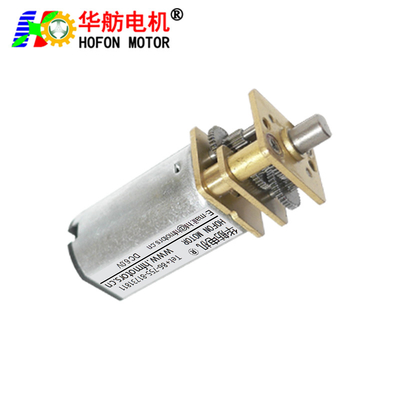

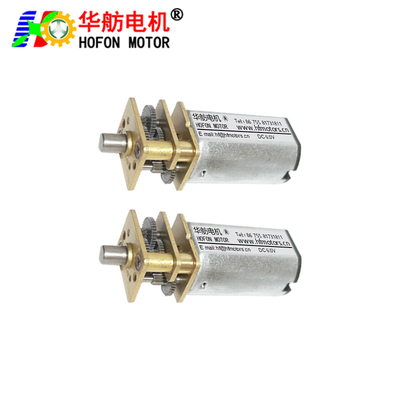

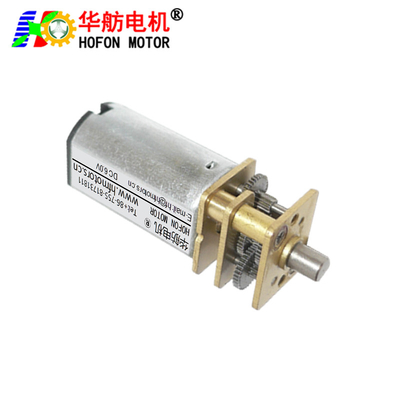

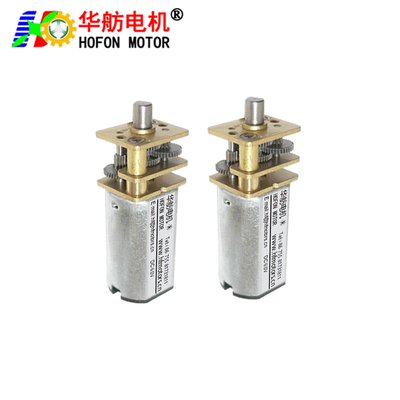

Hofon Motor Mini DC Gear Motor Hofon Motor GM12-N30VA Permanent Magnet Brush DC Motor With Reduction Gearbox

Hofon Motor Mini DC Gear Motor Hofon Motor GM12-N30VA Permanent Magnet Brush DC Motor With Reduction Gearbox

Hofon Motor Mini DC Gear Motor Hofon Motor GM12-N30VA Permanent Magnet Brush DC Motor With Reduction Gearbox
Hofon Motor Mini DC Gear Motor Hofon Motor GM12-N30VA Permanent Magnet Brush DC Motor With Reduction Gearbox
Hofon Motor Mini DC Gear Motor Hofon Motor GM12-N30VA Permanent Magnet Brush DC Motor With Reduction Gearbox
Product Details:
Place of Origin: ShenZhen China
Brand Name: Hofon Motor
Certification: RoHS/ISO9001:2000/ISO14001/TS16949
Model Number: GM12-N30VA
Payment & Shipping Terms:
Minimum Order Quantity: 2000PCS
Price: Negotiation
Packaging Details: Carton Box
Delivery Time: 35Days
Supply Ability: 5000KPCS/Month
Contact Now
Detailed Product Description
Voltage Range: 5V Or Customized Material: Metal Gear High Precision Gear
Diameter: 24mm No Load Speed: 98RPM
No Load Current: 32mA Rated Load Torque: 422g.cm
Rated Load Speed: 77RPM Rated Load Current: 122mA
Gear Ratio: 150:1



Hofon Motor Mini DC Gear Motor Hofon Motor GM12-N30VA Permanent Magnet Brush DC Motor With Reduction Gearbox 0

Hofon Motor Mini DC Gear Motor Hofon Motor GM12-N30VA Permanent Magnet Brush DC Motor With Reduction Gearbox 1

Hofon Motor Mini DC Gear Motor Hofon Motor GM12-N30VA Permanent Magnet Brush DC Motor With Reduction Gearbox 2

Typical Applications:
- Electronic door lock / Monitor / Printer / Robot / Optic equipment / Precision instrument
- Bank equipment / Safe box / Paper feeder / Intelligent gas meter / Tissue machine
- Accessory of automobile / Ad equipment / Analysis instrument / Electronic game machine



Customized Service:

Voltage, speed, torque and other performance parameters can be customized according to requirements.

Shaft length, D-CUT shaft, threaded shaft, encoder, gear box and so on can be customized.



Representative Performance:

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min A r/min A mN.m g.cm w mN.m g.cm A
GM12F-N30VA-09210-30 1.5-5.0 3.0V 206 0.020 160 0.070 6 60 0.210 26.0 260 0.28
GM12F-N30VA-09210-50 1.5-5.0 3.0V 124 0.020 96 0.070 10 100 0.210 44.0 440 0.28
GM12F-N30VA-09210-100 1.5-5.0 3.0V 62 0.020 48 0.070 20 200 0.210 85.0 850 0.28
GM12F-N30VA-09210-150 1.5-5.0 3.0V 41 0.020 32 0.070 30 300 0.210 130.0 1300 0.28
GM12F-N30VA-09210-210 1.5-5.0 3.0V 29 0.020 22 0.070 42 420 0.210 ≥150 ≥1500 0.28
GM12F-N30VA-09210-250 1.5-5.0 3.0V 24 0.020 19 0.070 50 500 0.210 ≥150 ≥1500 0.28
GM12F-N30VA-09210-298 1.5-5.0 3.0V 20 0.020 16 0.070 59.6 596 0.210 ≥150 ≥1500 0.28
GM12F-N30VA-09210-30 3.0-8.0 6.0V 412 0.350 320 0.090 12 120 0.540 52.0 520 0.56
GM12F-N30VA-09210-50 3.0-8.0 6.0V 248 0.350 192 0.090 20 200 0.540 88.0 880 0.56
GM12F-N30VA-09210-100 3.0-8.0 6.0V 124 0.350 96 0.090 40 400 0.540 ≥150 ≥1500 0.56
GM12F-N30VA-09210-150 3.0-8.0 6.0V 82 0.350 64 0.090 60 600 0.540 ≥150 ≥1500 0.56
GM12F-N30VA-09210-210 3.0-8.0 6.0V 58 0.350 44 0.090 84 840 0.540 ≥150 ≥1500 0.56
GM12F-N30VA-09210-250 3.0-8.0 6.0V 48 0.350 38 0.090 100 1000 0.540 ≥150 ≥1500 0.56
GM12F-N30VA-09210-298 3.0-8.0 6.0V 40 0.350 32 0.090 119.2 1192 0.540 ≥150 ≥1500 0.56
GM12F-N30VA-12120-30 1.5-5.0 3.0V 300 0.060 237 0.280 11.7 117 0.840 24.0 240 0.70
GM12F-N30VA-12120-50 1.5-5.0 3.0V 180 0.060 142 0.280 19.5 195 0.840 40.0 400 0.70
GM12F-N30VA-12120-100 1.5-5.0 3.0V 90 0.060 71 0.280 39 390 0.840 72.0 720 0.70
GM12F-N30VA-12120-150 1.5-5.0 3.0V 60 0.060 47 0.280 58.5 585 0.840 108.0 1080 0.70
GM12F-N30VA-12120-210 1.5-5.0 3.0V 42 0.060 33 0.280 81.9 819 0.840 ≥150 ≥1500 0.70
GM12F-N30VA-12120-250 1.5-5.0 3.0V 36 0.060 28 0.280 97.5 975 0.840 ≥150 ≥1500 0.70
GM12F-N30VA-12120-298 1.5-5.0 3.0V 30 0.060 23 0.280 116.2 1162 0.840 ≥150 ≥1500 0.70
GM12F-N30VA-12120-30 3.0-7.0 5.0V 500 0.080 396 0.303 19.5 195 1.500 83.0 830 1.14
GM12F-N30VA-12120-50 3.0-7.0 5.0V 300 0.080 238 0.303 32.5 325 1.500 130.0 1300 1.14
GM12F-N30VA-12120-100 3.0-7.0 5.0V 150 0.080 119 0.303 65 650 1.500 ≥150 ≥1500 1.14
GM12F-N30VA-12120-150 3.0-7.0 5.0V 100 0.080 79 0.303 97.5 975 1.500 ≥150 ≥1500 1.14
GM12F-N30VA-12120-210 3.0-7.0 5.0V 71 0.080 56 0.303 136.5 1365 1.500 ≥150 ≥1500 1.14
GM12F-N30VA-12120-250 3.0-7.0 5.0V 60 0.080 47 0.303 162.5 1625 1.500 ≥150 ≥1500 1.14
GM12F-N30VA-12120-298 3.0-7.0 5.0V 50 0.080 39 0.303 193.7 1937 1.500 ≥150 ≥1500 1.14
GM12F-N30VA-12120-1000 3.0-7.0 5.0V 15 0.080 11.9 0.303 642.4 6552 1.500 ≥150 ≥1500 1.14



Hofon Motor Mini DC Gear Motor Hofon Motor GM12-N30VA Permanent Magnet Brush DC Motor With Reduction Gearbox 3

Hofon Motor Mini DC Gear Motor Hofon Motor GM12-N30VA Permanent Magnet Brush DC Motor With Reduction Gearbox 4

Hofon Motor Mini DC Gear Motor Hofon Motor GM12-N30VA Permanent Magnet Brush DC Motor With Reduction Gearbox 5

Application

Hofon Motor Mini DC Gear Motor Hofon Motor GM12-N30VA Permanent Magnet Brush DC Motor With Reduction Gearbox 6

Company Profile

Hofon Motor Mini DC Gear Motor Hofon Motor GM12-N30VA Permanent Magnet Brush DC Motor With Reduction Gearbox 7

Hofon Precise Motor Limited was founded in the year of 2002, to the establishment of the DC micro motor, small modulus gear motor, brushless motor research and development of the manufacture and sale of customer service professional firms.
Hofon products, specialized R & D and manufacturing in consumer electronics, toys, model aircraft, security, automotive electronics and electronic equipment, office equipment to streamline the development of important pieces of the main zero.
Hofon is more conductive to customer demand, with customers to design and develop new products,specifically in the refined products focused on the needs of customers, shorten the cycle of research and development under the precondition of, and continued to enhance customer satisfaction and productivity and to create a positive Hofon customers out of the trust.

We are committed to the Company's production of the motor and gear components with high quality and reasonable price, fast delivery and high satisfaction of marketing services around the world.

Hofon Motor Mini DC Gear Motor Hofon Motor GM12-N30VA Permanent Magnet Brush DC Motor With Reduction Gearbox 8


Competitive Advantage

Hofon Motor Mini DC Gear Motor Hofon Motor GM12-N30VA Permanent Magnet Brush DC Motor With Reduction Gearbox 9

  • 20 years experience in manufacturing motor and gearbox motor
  • Experienced Staff: average 15 years experience in R&D , ODM & OEM
  • International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
  • Competitive Price
  • High Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 20-25 working days after payment
  • Quality Approvals
  • Small Orders Accepted
  • Advanced equipments: Automatic winding machine, stator automatic setting machine, end cover automatic setting machine, automatic soldering machine, etc



Quality Cotrol Test


  • Reliability Test & Laboratory
  • Noise Test
  • Water-proof Test
  • Life Test
  • Impact Test
  • Storage Test
  • Salt Spray Test
  • Environmental Related Substance
