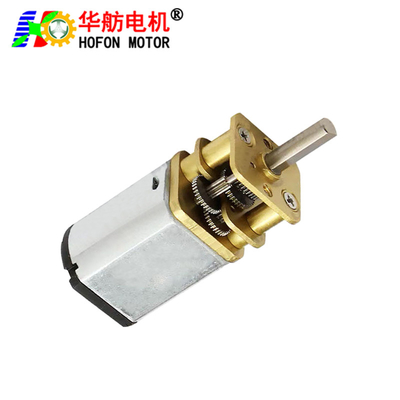

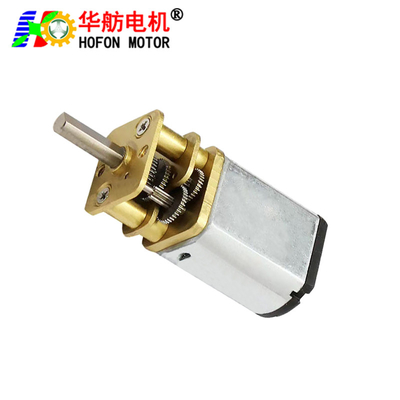

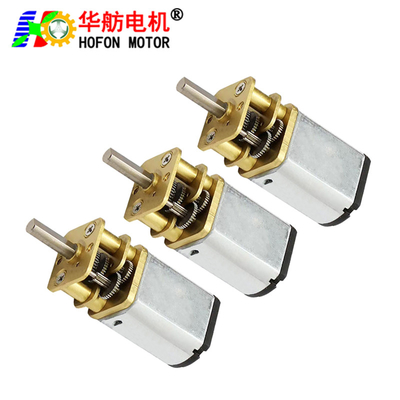

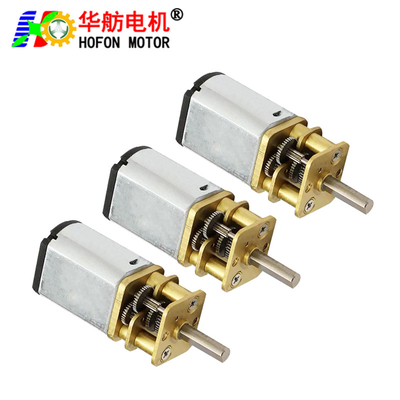

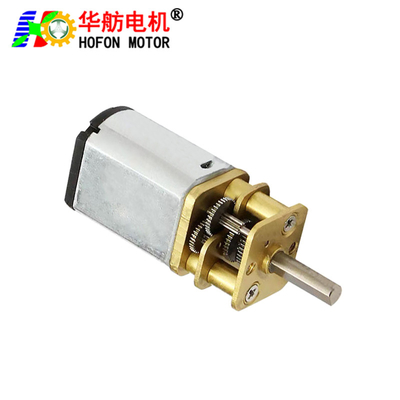

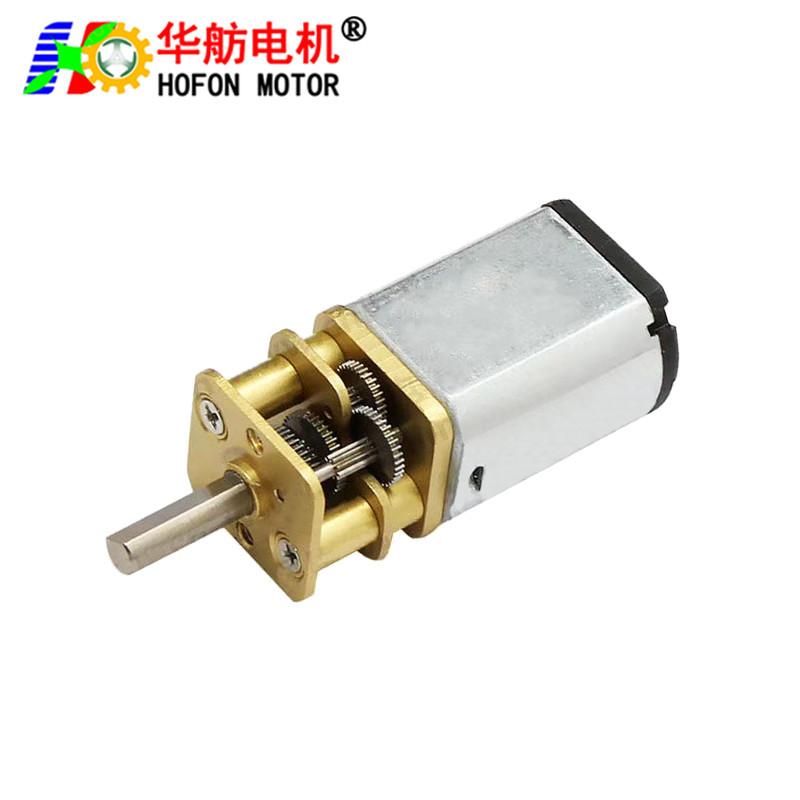

Hofon Motor GM13-030SA High Torque Long Life DC Metal Gear Motor From China Manufacturer

Hofon Motor GM13-030SA High Torque Long Life DC Metal Gear Motor From China Manufacturer

Hofon Motor GM13-030SA High Torque Long Life DC Metal Gear Motor From China Manufacturer
Hofon Motor GM13-030SA High Torque Long Life DC Metal Gear Motor From China Manufacturer
Hofon Motor GM13-030SA High Torque Long Life DC Metal Gear Motor From China Manufacturer
Product Details:
Place of Origin: ShenZhen China
Brand Name: Hofon Motor
Certification: RoHS/ISO9001:2000/ISO14001/TS16949
Model Number: GM13-030SA
Payment & Shipping Terms:
Minimum Order Quantity: 2000PCS
Price: Negotiation
Packaging Details: Carton Box
Delivery Time: 35Days
Supply Ability: 5000KPCS/Month
Contact Now
Detailed Product Description
Voltage Range: 5V Or Customized Material: Metal Gear High Precision Gear
Diameter: 13mm No Load Speed: 119RPM
No Load Current: 35mA Rated Load Torque: 252g.cm
Rated Load Speed: 95RPM Rated Load Current: 95mA
Gear Ratio: 63:1

Hofon Motor GM13-030SA High Torque Long Life DC Metal Gear Motor From China Manufacturer 0

Hofon Motor GM13-030SA High Torque Long Life DC Metal Gear Motor From China Manufacturer 1

Typical Applications:
- Electronic door lock / Monitor / Printer / Robot / Optic equipment / Precision instrument
- Bank equipment / Safe box / Paper feeder / Intelligent gas meter / Tissue machine
- Accessory of automobile / Ad equipment / Analysis instrument / Electronic game machine



Customized Service:

Voltage, speed, torque and other performance parameters can be customized according to requirements.

Shaft length, D-CUT shaft, threaded shaft, encoder, gear box and so on can be customized.



Representative Performance:

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min A r/min A mN.m g.cm w mN.m g.cm A
1# GM13F-030SA-10195-35 1.5-5.0 3.0V 197 0.040 154 0.160 10.5 105 0.480 47.0 470 0.40
2# GM13F-030SA-10195-63 1.5-5.0 3.0V 109 0.040 85 0.160 18.9 189 0.480 85.0 850 0.40
3# GM13F-030SA-10195-115 1.5-5.0 3.0V 60 0.040 46 0.160 34.5 345 0.480 155.0 1550 0.40
4# GM13F-030SA-10195-150 1.5-5.0 3.0V 46 0.040 36 0.160 45 450 0.480 200.0 2000 0.40
5# GM13F-030SA-10195-250 1.5-5.0 3.0V 27 0.040 21 0.160 75 750 0.480 ≥250 ≥2500 0.40
6# GM13F-030SA-10195-360 1.5-5.0 3.0V 19 0.040 15 0.160 108 1080 0.480 ≥250 ≥2500 0.40
7# GM13F-030SA-10195-35 3.0-8.0 5.0V 328 0.050 257 0.182 17.5 175 0.513 78.0 780 0.65
8# GM13F-030SA-10195-63 3.0-8.0 5.0V 182 0.050 140 0.182 31.5 315 0.513 140.0 1400 0.65
9# GM13F-030SA-10195-115 3.0-8.0 5.0V 100 0.050 78 0.182 57.5 575 0.513 250.0 2500 0.65
10# GM13F-030SA-10195-150 3.0-8.0 5.0V 75 0.050 60 0.182 75 750 0.513 ≥250 ≥2500 0.65
11# GM13F-030SA-10195-250 3.0-8.0 5.0V 45 0.050 36 0.182 125 1250 0.513 ≥250 ≥2500 0.65
12# GM13F-030SA-10195-360 3.0-8.0 5.0V 32 0.050 25 0.182 196.6 2005.5 0.513 ≥250 ≥2500 0.65
13# GM13F-030SA-08300-35 3.0-8.0 5.0V 214 0.025 170 0.095 14.0 140 0.475 63.0 630 0.31
14# GM13F-030SA-08300-63 3.0-8.0 5.0V 119 0.025 95 0.095 25.2 252 0.475 113.4 1134 0.31
15# GM13F-030SA-08300-115 3.0-8.0 5.0V 65 0.025 52 0.095 46.0 460 0.475 207.0 2070 0.31
16# GM13F-030SA-08300-150 3.0-8.0 5.0V 50 0.025 40 0.095 60.0 600 0.475 ≥250 ≥2500 0.31
17# GM13F-030SA-08300-250 3.0-8.0 5.0V 30 0.025 24 0.095 100.0 1000 0.475 ≥250 ≥2500 0.31
18# GM13F-030SA-08300-360 3.0-8.0 5.0V 20 0.025 16 0.095 144.0 1440 0.475 ≥250 ≥2500 0.31
19# GM13F-030SA-08300-35 6.0-10.0 8.0V 342 0.032 274 0.112 80.4 245 0.896 1010.0 1000 0.49
20# GM13F-030SA-08300-63 6.0-10.0 8.0V 190 0.032 152 0.112 44.1 441 0.896 180.0 1800 0.49
21# GM13F-030SA-08300-115 6.0-10.0 8.0V 105 0.032 84 0.112 82.0 820 0.896 ≥250 ≥2500 0.49
22# GM13F-030SA-08300-150 6.0-10.0 8.0V 80 0.032 64 0.112 105.0 1050 0.896 ≥250 ≥2500 0.49
23# GM13F-030SA-08300-250 6.0-10.0 8.0V 48 0.032 38 0.112 175 1750 0.896 ≥250 ≥2500 0.49
24# GM13F-030SA-08300-360 6.0-10.0 8.0V 33 0.032 26 0.112 252.0 2520 0.896 ≥250 ≥2500 0.49



Hofon Motor GM13-030SA High Torque Long Life DC Metal Gear Motor From China Manufacturer 2

Reduction Ratio 1 : 3 1 : 5 1 : 10 1 : 30 1 : 50 1 : 63 1 : 100 1 : 150 1 : 210 1 : 250 1 : 298 1 : 1000



Hofon Motor GM13-030SA High Torque Long Life DC Metal Gear Motor From China Manufacturer 3



Hofon Motor GM13-030SA High Torque Long Life DC Metal Gear Motor From China Manufacturer 4

Application

Hofon Motor GM13-030SA High Torque Long Life DC Metal Gear Motor From China Manufacturer 5

Company Profile

Hofon Motor GM13-030SA High Torque Long Life DC Metal Gear Motor From China Manufacturer 6

Hofon Precise Motor Limited was founded in the year of 2002, to the establishment of the DC micro motor, small modulus gear motor, brushless motor research and development of the manufacture and sale of customer service professional firms.
Hofon products, specialized R & D and manufacturing in consumer electronics, toys, model aircraft, security, automotive electronics and electronic equipment, office equipment to streamline the development of important pieces of the main zero.
Hofon is more conductive to customer demand, with customers to design and develop new products,specifically in the refined products focused on the needs of customers, shorten the cycle of research and development under the precondition of, and continued to enhance customer satisfaction and productivity and to create a positive Hofon customers out of the trust.

We are committed to the Company's production of the motor and gear components with high quality and reasonable price, fast delivery and high satisfaction of marketing services around the world.

Hofon Motor GM13-030SA High Torque Long Life DC Metal Gear Motor From China Manufacturer 7


Competitive Advantage

Hofon Motor GM13-030SA High Torque Long Life DC Metal Gear Motor From China Manufacturer 8

  • 20 years experience in manufacturing motor and gearbox motor
  • Experienced Staff: average 15 years experience in R&D , ODM & OEM
  • International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
  • Competitive Price
  • High Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 20-25 working days after payment
  • Quality Approvals
  • Small Orders Accepted
  • Advanced equipments: Automatic winding machine, stator automatic setting machine, end cover automatic setting machine, automatic soldering machine, etc



Quality Cotrol Test


  • Reliability Test & Laboratory
  • Noise Test
  • Water-proof Test
  • Life Test
  • Impact Test
  • Storage Test
  • Salt Spray Test
  • Environmental Related Substance
