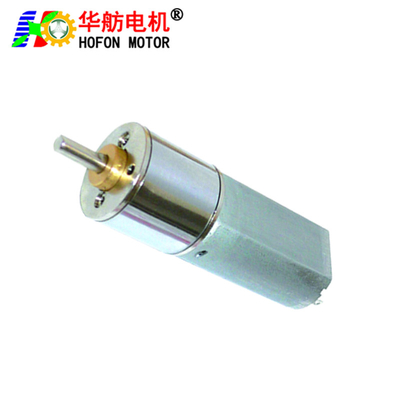

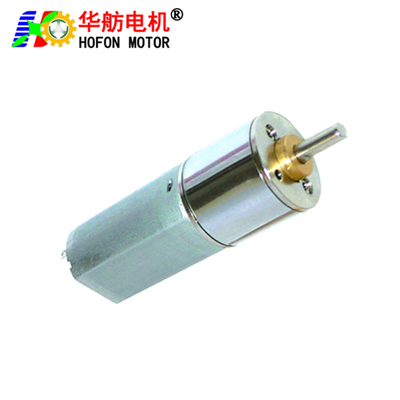

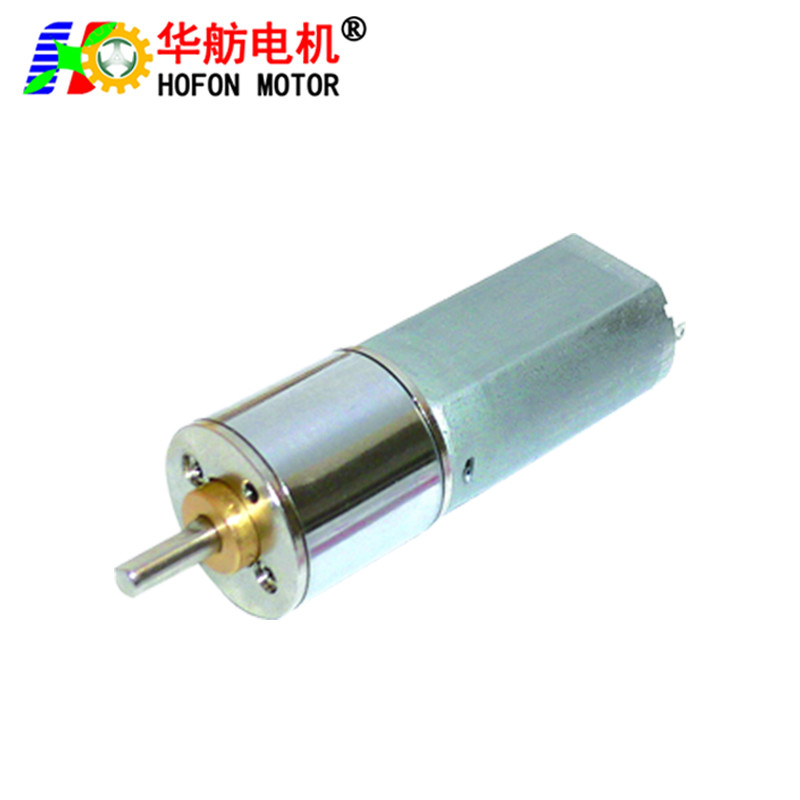

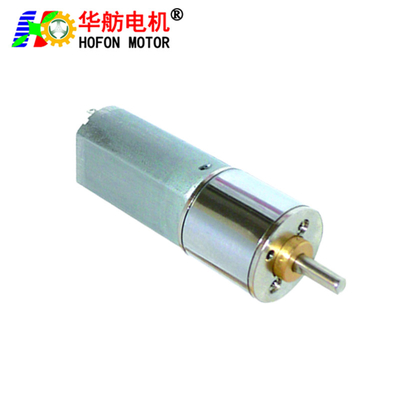

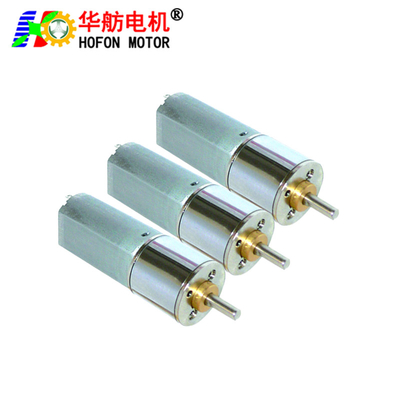

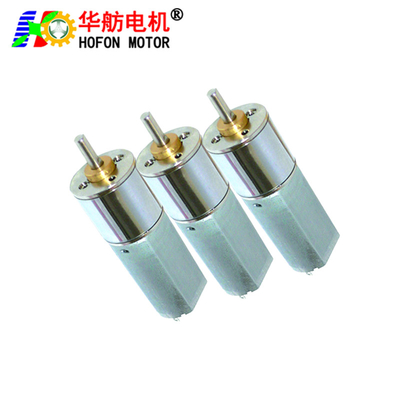

Hofon Motor GM16-050SH DC High Torque Gear Box Electric Motor 3V 5V 6V 12V For Robotics

Hofon Motor GM16-050SH DC High Torque Gear Box Electric Motor 3V 5V 6V 12V For Robotics

Hofon Motor GM16-050SH DC High Torque Gear Box Electric Motor 3V 5V 6V 12V For Robotics
Hofon Motor GM16-050SH DC High Torque Gear Box Electric Motor 3V 5V 6V 12V For Robotics
Hofon Motor GM16-050SH DC High Torque Gear Box Electric Motor 3V 5V 6V 12V For Robotics
Product Details:
Place of Origin: ShenZhen China
Brand Name: Hofon Motor
Certification: RoHS/ISO9001:2000/ISO14001/TS16949
Model Number: GM16-050SH
Payment & Shipping Terms:
Minimum Order Quantity: 2000PCS
Price: Negotiation
Packaging Details: Carton Box
Delivery Time: 35Days
Supply Ability: 5000KPCS/Month
Contact Now
Detailed Product Description
Voltage Range: 12V Or Customized Material: Metal Gear High Precision Gear
Diameter: 16mm No Load Speed: 100RPM
No Load Current: 50mA Rated Load Torque: 1196g.cm
Rated Load Speed: 80RPM Rated Load Current: 200mA
Gear Ratio: 115:1

Hofon Motor GM16-050SH DC High Torque Gear Box Electric Motor 3V 5V 6V 12V For Robotics 0

Hofon Motor GM16-050SH DC High Torque Gear Box Electric Motor 3V 5V 6V 12V For Robotics 1

Typical Applications:
- Electronic door lock / Monitor / Printer / Robot / Optic equipment / Precision instrument
- Bank equipment / Safe box / Paper feeder / Intelligent gas meter / Tissue machine
- Accessory of automobile / Ad equipment / Analysis instrument / Electronic game machine



Customized Service:

Voltage, speed, torque and other performance parameters can be customized according to requirements.

Shaft length, D-CUT shaft, threaded shaft, encoder, gear box and so on can be customized.



Representative Performance:

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min A r/min A mN.m g.cm w mN.m g.cm A
GM16F-050SH-11170-35 1.5-5.0 3.0V 125 0.030 102 0.150 10.5 105 0.450 62.0 620 0.36
GM16F-050SH-11170-63 1.5-5.0 3.0V 69 0.030 57 0.150 18.9 189 0.450 110.0 1100 0.36
GM16F-050SH-11170-115 1.5-5.0 3.0V 38 0.030 31 0.150 34.5 345 0.450 200.0 2000 0.36
GM16F-050SH-11170-150 1.5-5.0 3.0V 29 0.030 24 0.150 45 450 0.450 ≥250 ≥2500 0.36
GM16F-050SH-11170-250 1.5-5.0 3.0V 17 0.030 14 0.150 75 750 0.450 ≥250 ≥2500 0.36
GM16F-050SH-11170-360 1.5-5.0 3.0V 12 0.030 10 0.150 108 1080 0.450 ≥250 ≥2500 0.36
GM16F-050SH-11170-35 3.0-9.0 6.0V 250 0.045 204 0.170 21 210 1.020 124.0 1240 0.72
GM16F-050SH-11170-63 3.0-9.0 6.0V 138 0.045 114 0.170 37.8 378 1.020 220.0 2200 0.72
GM16F-050SH-11170-115 3.0-9.0 6.0V 76 0.045 62 0.170 69 690 1.020 ≥250 ≥2500 0.72
GM16F-050SH-11170-150 3.0-9.0 6.0V 58 0.045 48 0.170 90 900 1.020 ≥250 ≥2500 0.72
GM16F-050SH-11170-250 3.0-9.0 6.0V 34 0.045 28 0.170 150 1500 1.020 ≥250 ≥2500 0.72
GM16F-050SH-11170-360 3.0-9.0 6.0V 24 0.045 20 0.170 216 2160 1.020 ≥250 ≥2500 0.72
GM16F-050SH-09250-35 3.0-9.0 6.0V 168 0.027 134 0.110 18.2 182 0.660 81.0 810 0.35
GM16F-050SH-09250-63 3.0-9.0 6.0V 93 0.027 74 0.110 32.7 327 0.660 147.4 1474 0.35
GM16F-050SH-09250-115 3.0-9.0 6.0V 50 0.027 40 0.110 59.8 598 0.660 ≥250 ≥2500 0.35
GM16F-050SH-09250-150 3.0-9.0 6.0V 39 0.027 31 0.110 78 780 0.660 ≥250 ≥2500 0.35
GM16F-050SH-09250-250 3.0-9.0 6.0V 23 0.027 18 0.110 130 1300 0.660 ≥250 ≥2500 0.35
GM16F-050SH-09250-360 3.0-9.0 6.0V 16 0.027 13 0.110 187.2 1872 0.660 ≥250 ≥2500 0.35
GM16F-050SH-09250-35 6.0-15.0 12.0V 336 0.050 268 0.200 36.4 364 2.400 162.0 1620 0.70
GM16F-050SH-09250-63 6.0-15.0 12.0V 186 0.050 148 0.200 65.4 654 2.400 ≥250 ≥2500 0.70
GM16F-050SH-09250-115 6.0-15.0 12.0V 100 0.050 80 0.200 119.6 1196 2.400 ≥250 ≥2500 0.70
GM16F-050SH-09250-150 6.0-15.0 12.0V 78 0.050 62 0.200 156.0 1560 2.400 ≥250 ≥2500 0.70
GM16F-050SH-09250-250 6.0-15.0 12.0V 46 0.050 36 0.200 260 2600 2.400 ≥250 ≥2500 0.70
GM16F-050SH-09250-360 6.0-15.0 12.0V 32 0.050 26 0.200 374.4 3744 2.400 ≥250 ≥2500 0.70





Hofon Motor GM16-050SH DC High Torque Gear Box Electric Motor 3V 5V 6V 12V For Robotics 2



Hofon Motor GM16-050SH DC High Torque Gear Box Electric Motor 3V 5V 6V 12V For Robotics 3






Hofon Motor GM16-050SH DC High Torque Gear Box Electric Motor 3V 5V 6V 12V For Robotics 4

Application

Hofon Motor GM16-050SH DC High Torque Gear Box Electric Motor 3V 5V 6V 12V For Robotics 5

Company Profile

Hofon Motor GM16-050SH DC High Torque Gear Box Electric Motor 3V 5V 6V 12V For Robotics 6

Hofon Precise Motor Limited was founded in the year of 2002, to the establishment of the DC micro motor, small modulus gear motor, brushless motor research and development of the manufacture and sale of customer service professional firms.
Hofon products, specialized R & D and manufacturing in consumer electronics, toys, model aircraft, security, automotive electronics and electronic equipment, office equipment to streamline the development of important pieces of the main zero.
Hofon is more conductive to customer demand, with customers to design and develop new products,specifically in the refined products focused on the needs of customers, shorten the cycle of research and development under the precondition of, and continued to enhance customer satisfaction and productivity and to create a positive Hofon customers out of the trust.

We are committed to the Company's production of the motor and gear components with high quality and reasonable price, fast delivery and high satisfaction of marketing services around the world.

Hofon Motor GM16-050SH DC High Torque Gear Box Electric Motor 3V 5V 6V 12V For Robotics 7


Competitive Advantage

Hofon Motor GM16-050SH DC High Torque Gear Box Electric Motor 3V 5V 6V 12V For Robotics 8

  • 20 years experience in manufacturing motor and gearbox motor
  • Experienced Staff: average 15 years experience in R&D , ODM & OEM
  • International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
  • Competitive Price
  • High Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 20-25 working days after payment
  • Quality Approvals
  • Small Orders Accepted
  • Advanced equipments: Automatic winding machine, stator automatic setting machine, end cover automatic setting machine, automatic soldering machine, etc



Quality Cotrol Test


  • Reliability Test & Laboratory
  • Noise Test
  • Water-proof Test
  • Life Test
  • Impact Test
  • Storage Test
  • Salt Spray Test
  • Environmental Related Substance

Certifications

Hofon Motor GM16-050SH DC High Torque Gear Box Electric Motor 3V 5V 6V 12V For Robotics 9



Exhibition

Hofon Motor GM16-050SH DC High Torque Gear Box Electric Motor 3V 5V 6V 12V For Robotics 10



Packaging & Shipping

Hofon Motor GM16-050SH DC High Torque Gear Box Electric Motor 3V 5V 6V 12V For Robotics 11

Hofon Motor GM16-050SH DC High Torque Gear Box Electric Motor 3V 5V 6V 12V For Robotics 12

Hofon Motor GM16-050SH DC High Torque Gear Box Electric Motor 3V 5V 6V 12V For Robotics 13
