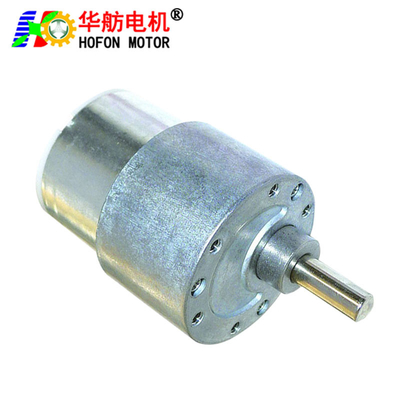

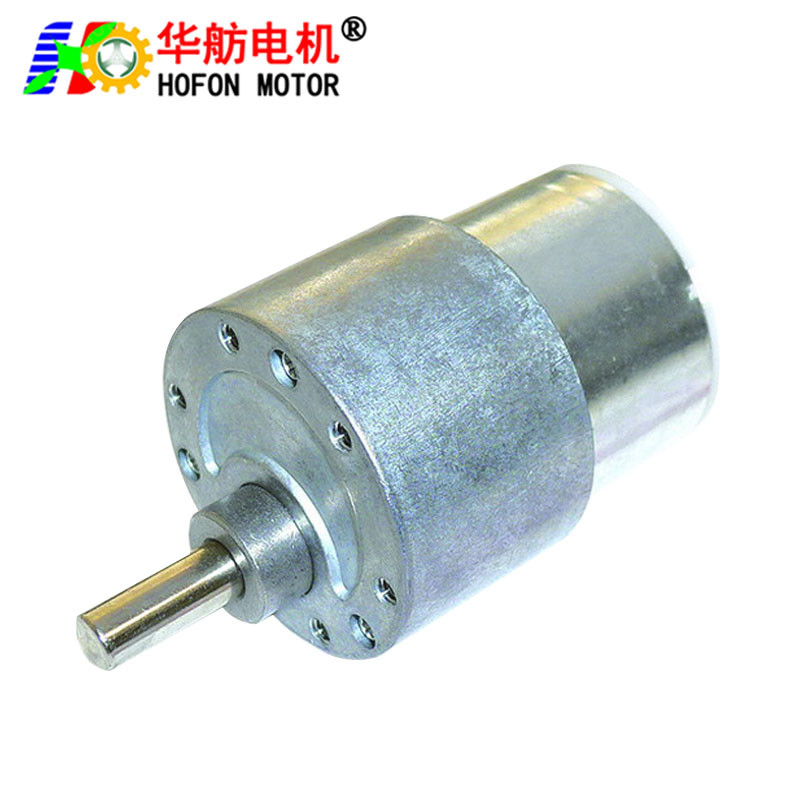

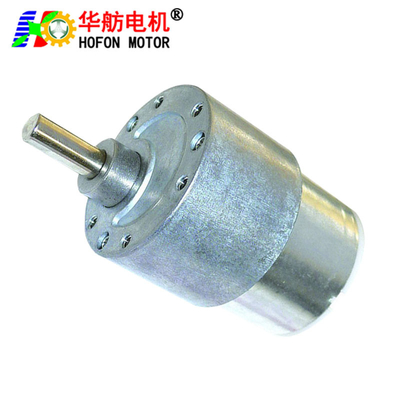

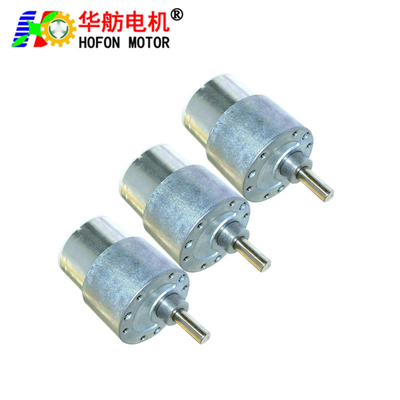

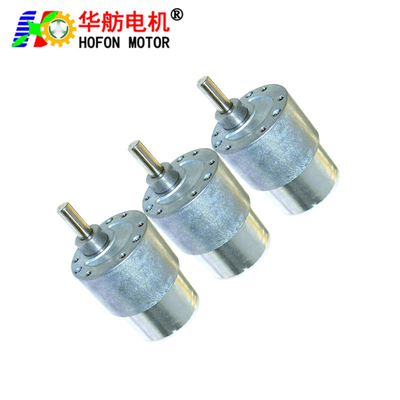

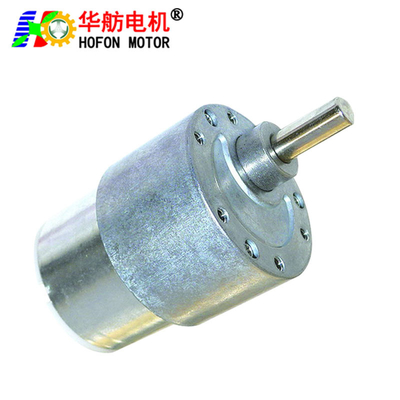

Hofon Motor 37mm GM37-520CA DC micro brushed gear motor large torque for household appliances 5V 12V 24V

Hofon Motor 37mm GM37-520CA DC micro brushed gear motor large torque for household appliances 5V 12V 24V

Hofon Motor 37mm GM37-520CA DC micro brushed gear motor large torque for household appliances 5V 12V 24V
Hofon Motor 37mm GM37-520CA DC micro brushed gear motor large torque for household appliances 5V 12V 24V
Hofon Motor 37mm GM37-520CA DC micro brushed gear motor large torque for household appliances 5V 12V 24V
Product Details:
Place of Origin: ShenZhen China
Brand Name: Hofon Motor
Certification: RoHS/ISO9001:2000/ISO14001/TS16949
Model Number: GM37-520CA
Payment & Shipping Terms:
Minimum Order Quantity: 2000PCS
Price: Negotiation
Packaging Details: Carton Box
Delivery Time: 35Days
Supply Ability: 5000KPCS/Month
Contact Now
Detailed Product Description
Voltage Range: 24V Or Customized Material: Metal Gear High Precision Gear
Diameter: 37mm No Load Speed: 50RPM
No Load Current: 90mA Rated Load Torque: 7000g.cm
Rated Load Speed: 31RPM Rated Load Current: 320mA
Gear Ratio: 150:1

Hofon Motor 37mm GM37-520CA DC micro brushed gear motor large torque for household appliances 5V 12V 24V 0

Hofon Motor 37mm GM37-520CA DC micro brushed gear motor large torque for household appliances 5V 12V 24V 1

Typical Applications:
- Electronic door lock / Monitor / Printer / Robot / Optic equipment / Precision instrument
- Bank equipment / Safe box / Paper feeder / Intelligent gas meter / Tissue machine
- Accessory of automobile / Ad equipment / Analysis instrument / Electronic game machine



Customized Service:

Voltage, speed, torque and other performance parameters can be customized according to requirements.

Shaft length, D-CUT shaft, threaded shaft, encoder, gear box and so on can be customized.



Representative Performance:

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min A r/min A mN.m g.cm w mN.m g.cm A
GM37-520CA001-6.3 20.0-25.0 24.0V 1170 0.090 760 0.320 30 300 7.680 120.0 1200 1.30
GM37-520CA001-10 20.0-25.0 24.0V 740 0.090 480 0.320 47 470 7.680 190.0 1900 1.30
GM37-520CA001-18.8 20.0-25.0 24.0V 390 0.090 255 0.320 88 880 7.680 360.0 3600 1.30
GM37-520CA001-30 20.0-25.0 24.0V 247 0.090 160 0.320 140 1400 7.680 550.0 5500 1.30
GM37-520CA001-50 20.0-25.0 24.0V 147 0.090 95 0.320 240 2400 7.680 950.0 9500 1.30
GM37-520CA001-90 20.0-25.0 24.0V 80 0.090 53 0.320 420 4200 7.680 1600.0 16000 1.30
GM37-520CA001-150 20.0-25.0 24.0V 49 0.090 31 0.320 700 7000 7.680 2800.0 28000 1.30
GM37-520CA001-270 20.0-25.0 24.0V 27 0.090 18 0.320 1200 12000 7.680 ≥3500 ≥35000 1.30
GM37-520CA001-450 20.0-25.0 24.0V 16 0.090 10 0.320 2100 21000 7.680 ≥3500 ≥35000 1.30
GM37-520CA001-650 20.0-25.0 24.0V 11 0.090 9 0.320 3000 30000 7.680 ≥3500 ≥35000 1.30
GM37-520CA001-810 20.0-25.0 24.0V 9 0.090 7 0.320 3000 30000 7.680 ≥3500 ≥35000 1.30
GM37-520CA002-6.3 9.0-13.0 12.0V 1170 0.090 660 0.420 30 300 5.040 120.0 1200 2.40
GM37-520CA002-10 9.0-13.0 12.0V 740 0.090 415 0.420 47 470 5.040 190.0 1900 2.40
GM37-520CA002-18.8 9.0-13.0 12.0V 390 0.090 215 0.420 88 880 5.040 360.0 3600 2.40
GM37-520CA002-30 9.0-13.0 12.0V 247 0.090 139 0.420 140 1400 5.040 550.0 5500 2.40
GM37-520CA002-50 9.0-13.0 12.0V 147 0.090 83 0.420 240 2400 5.040 950.0 9500 2.40
GM37-520CA002-90 9.0-13.0 12.0V 80 0.090 46 0.420 420 4200 5.040 1600.0 16000 2.40
GM37-520CA002-150 9.0-13.0 12.0V 49 0.090 28 0.420 700 7000 5.040 2800.0 28000 2.40
GM37-520CA002-270 9.0-13.0 12.0V 27 0.090 16 0.420 1200 12000 5.040 ≥3500 ≥35000 2.40
GM37-520CA002-450 9.0-13.0 12.0V 16 0.090 10 0.420 2100 21000 5.040 ≥3500 ≥35000 2.40
GM37-520CA002-650 9.0-13.0 12.0V 11 0.090 9 0.420 3000 30000 5.040 ≥3500 ≥35000 2.40
GM37-520CA002-810 9.0-13.0 12.0V 9 0.090 7 0.420 3000 30000 5.040 ≥3500 ≥35000 2.40



Hofon Motor 37mm GM37-520CA DC micro brushed gear motor large torque for household appliances 5V 12V 24V 2

Reduction Ratio 1 : 6.3 1 : 10 1 : 18.8 1 : 30 1 : 50 1 : 90 1 : 150 1 : 270 1 : 450 3 : 650 1 : 810 /
Length gearbox (L) 19 22 24 26.5 29 /



Hofon Motor 37mm GM37-520CA DC micro brushed gear motor large torque for household appliances 5V 12V 24V 3



Hofon Motor 37mm GM37-520CA DC micro brushed gear motor large torque for household appliances 5V 12V 24V 4

Application

Hofon Motor 37mm GM37-520CA DC micro brushed gear motor large torque for household appliances 5V 12V 24V 5

Company Profile

Hofon Motor 37mm GM37-520CA DC micro brushed gear motor large torque for household appliances 5V 12V 24V 6

Hofon Precise Motor Limited was founded in the year of 2002, to the establishment of the DC micro motor, small modulus gear motor, brushless motor research and development of the manufacture and sale of customer service professional firms.
Hofon products, specialized R & D and manufacturing in consumer electronics, toys, model aircraft, security, automotive electronics and electronic equipment, office equipment to streamline the development of important pieces of the main zero.
Hofon is more conductive to customer demand, with customers to design and develop new products,specifically in the refined products focused on the needs of customers, shorten the cycle of research and development under the precondition of, and continued to enhance customer satisfaction and productivity and to create a positive Hofon customers out of the trust.

We are committed to the Company's production of the motor and gear components with high quality and reasonable price, fast delivery and high satisfaction of marketing services around the world.

Hofon Motor 37mm GM37-520CA DC micro brushed gear motor large torque for household appliances 5V 12V 24V 7


Competitive Advantage

Hofon Motor 37mm GM37-520CA DC micro brushed gear motor large torque for household appliances 5V 12V 24V 8

  • 20 years experience in manufacturing motor and gearbox motor
  • Experienced Staff: average 15 years experience in R&D , ODM & OEM
  • International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
  • Competitive Price
  • High Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 20-25 working days after payment
  • Quality Approvals
  • Small Orders Accepted
  • Advanced equipments: Automatic winding machine, stator automatic setting machine, end cover automatic setting machine, automatic soldering machine, etc



Quality Cotrol Test


  • Reliability Test & Laboratory
  • Noise Test
  • Water-proof Test
  • Life Test
  • Impact Test
  • Storage Test
  • Salt Spray Test
  • Environmental Related Substance

Certifications

Hofon Motor 37mm GM37-520CA DC micro brushed gear motor large torque for household appliances 5V 12V 24V 9



Exhibition

Hofon Motor 37mm GM37-520CA DC micro brushed gear motor large torque for household appliances 5V 12V 24V 10



Packaging & Shipping

Hofon Motor 37mm GM37-520CA DC micro brushed gear motor large torque for household appliances 5V 12V 24V 11

Hofon Motor 37mm GM37-520CA DC micro brushed gear motor large torque for household appliances 5V 12V 24V 12

Hofon Motor 37mm GM37-520CA DC micro brushed gear motor large torque for household appliances 5V 12V 24V 13
