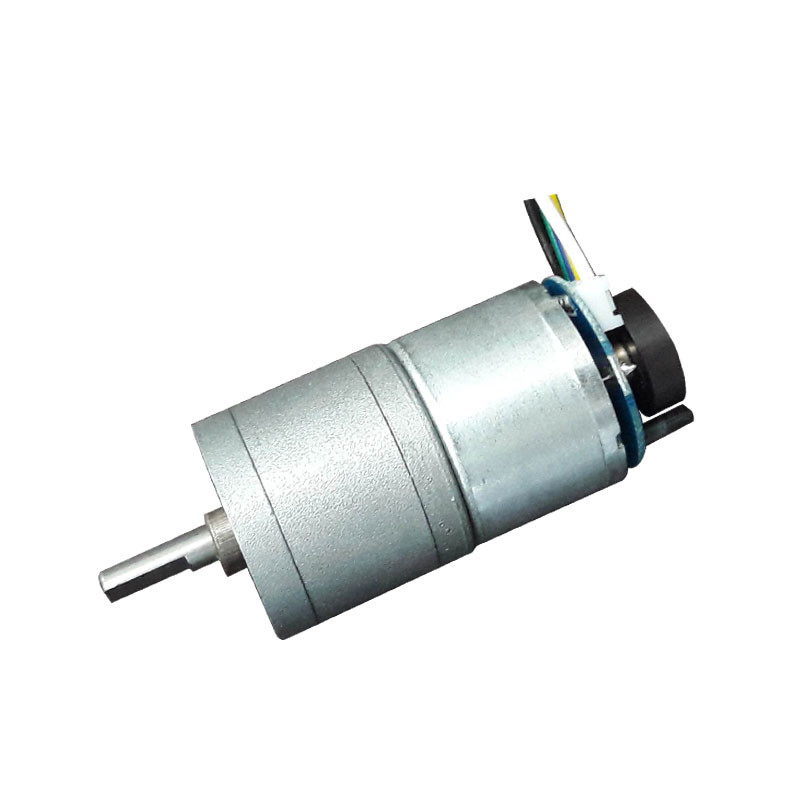

Small DC Gear Motor Encoder 3V 6V 12V Robot 14RPM No Load Speed Stable Performance

Small DC Gear Motor Encoder 3V 6V 12V Robot 14RPM No Load Speed Stable Performance

  • Small DC Gear Motor Encoder 3V 6V 12V Robot 14RPM No Load Speed Stable Performance
Small DC Gear Motor Encoder 3V 6V 12V Robot 14RPM No Load Speed Stable Performance
Product Details:
Place of Origin: ShenZhen China
Brand Name: Hofon
Certification: RoHS/ISO9001:2000/ISO14001/TS16949
Model Number: GM25-330CH+EN
Payment & Shipping Terms:
Minimum Order Quantity: 2000PCS
Price: Negotiation
Packaging Details: Carton Box
Delivery Time: 35Days
Supply Ability: 5000KPCS/Month
Contact Now
Detailed Product Description
Voltage Range: 6V Or Customized Material: Metal Gear High Precision Gear
Diameter: 25mm No Load Speed: 14RPM
No Load Current: 50mA Rated Load Torque: 4100g.cm
Rated Load Speed: 11RPM Rated Load Current: 220mA
Gear Ratio: 286:1
High Light:

gear reduction motor

,

high torque dc motor

Quality Cotrol Test


  • Reliability Test & Laboratory
  • Noise Test
  • Water-proof Test
  • Life Test
  • Impact Test
  • Storage Test
  • Salt Spray Test
  • Environmental Related Substance


25mm With Hall Encoder 5V / 6V / 12V Metal Gear-box motor DC Gear Motor For Robot


  • DC Worm Gear-Box Motor
  • Diameter : Φ25.0mm
  • Output : APPROX 0.1~1.0W
  • Noise Level : Less than 50dB
  • Low noise, stable performance, quality assurance


Typical Applications


  • Fully automatic electronic door lock

  • Office Automatic Equipments
  • Printer/paper Feeder
  • Bank Equipments Safe Box
  • Ad Equipment
  • Analysis Instrument/electronic
  • Game Machine
  • Household Appliances
  • Electronic Door Lock


Specifications

The following specifications are only representative of one of our models. Other performance parameters can be customized according to customer requirements


Reduction Ratio1 : 9.61 : 26.91 :351 : 471 : 781 : 1031:1301:1721:2271:2861:3781:499



MODELVOLTAGENO LOADAT MAXIMUM EFFICIENCYSTALL
OPERATING RANGENOMINALSPEEDCURRENTSPEEDCURRENTTORQUEOUTPUTTORQUECURRENT
r/minAr/minAmN.mg.cmwmN.mg.cmA
GM25-370CH-16240-286+EN5.0-8.06.0V140.050110.22040141000.4802196.0224000.93




Drawing


Small DC Gear Motor Encoder 3V 6V 12V Robot 14RPM No Load Speed Stable Performance 0

Product Details Show


Small DC Gear Motor Encoder 3V 6V 12V Robot 14RPM No Load Speed Stable Performance 1
Competitive Advantage


  • 16 years experience in manufacturing motor and gearbox motor
  • Experienced Staff: average 12 years experience in R&D , ODM & OEM
  • International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
  • Competitive Price
  • High Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 20-25 working days after payment
  • Quality Approvals
  • Small Orders Accepted
  • Advanced equipments: Automatic winding machine, stator automatic setting machine, end cover automatic setting machine, automatic soldering machine, etc
