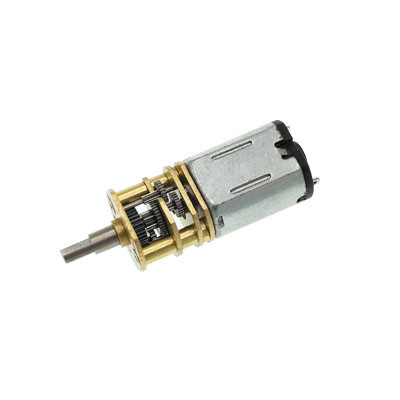

10mm 3V / 2.4V Metal Gear DC Gear Motor Low Noise and Large Torque

10mm 3V / 2.4V Metal Gear DC Gear Motor Low Noise and Large Torque

    • 10mm 3V / 2.4V Metal Gear DC Gear Motor Low Noise and Large Torque
  • 10mm 3V / 2.4V Metal Gear DC Gear Motor Low Noise and Large Torque

    Product Details:

    Place of Origin: ShenZhen China
    Brand Name: Hofon
    Certification: RoHS/ISO9001:2000/ISO14001/TS16949
    Model Number: GM10F-M20VA

    Payment & Shipping Terms:

    Minimum Order Quantity: 2000PCS
    Price: Negotiation
    Packaging Details: Carton Box
    Delivery Time: 35Days
    Supply Ability: 5000KPCS/Month
    Contact Now
    Detailed Product Description
    Voltage Range: 2.4V Or Customized Material: Metal Gear High Precision Gear
    Diameter: 10mm No Load Speed: 65RPM
    No Load Current: 70mA Rated Load Torque: 425g.cm
    Rated Load Speed: 50RPM Rated Load Current: 250mA
    Gear Ratio: 250:1
    High Light:

    gear reduction motor

    ,

    geared electric motor

    10mm 3V / 2.4V Metal Gear-box motor DC Gear Motor Low Noise and Large Torque High precision gear



    • DC Worm Gear-Box Motor
    • Diameter : Φ10.0mm
    • Output : APPROX 0.1~1.0W
    • Noise Level : Less than 50dB
    • Low noise, stable performance, quality assurance


    Typical Applications


    • Fully automatic electronic door lock

    • Office Automatic Equipments
    • Printer/paper Feeder
    • Bank Equipments Safe Box
    • Ad Equipment
    • Analysis Instrument/electronic
    • Game Machine
    • Household Appliances
    • Electronic Door Lock


    Specifications

    The following specifications are only representative of one of our models. Other performance parameters can be customized according to customer requirements

    MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
    OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
    r/min A r/min A mN.m g.cm w mN.m g.cm A
    GM10F-M20VA-08130-100 2.0-3.5 3.0V 150 0.055 115 0.180 16 170 0.540 70.0 700 0.55
    GM10F-M20VA-10100-250 1.2-3.0 2.4V 65 0.070 50 0.250 42.0 425 0.600 200.0 2000 0.75



    Drawing


    10mm 3V / 2.4V Metal Gear DC Gear Motor Low Noise and Large Torque 0


    Product Details Show


    10mm 3V / 2.4V Metal Gear DC Gear Motor Low Noise and Large Torque 1

    Typical Applications

    • Household application

    electric shaver, tooth brush, kitchen appliances, hair clipper, sewing machines, massager, vibrator, hair dryer, rubdown machine, corn popper, scissor hair machine, vacuum cleaner, garden tool, sanitary ware, window curtain, coffee machine, whisk, intelligent closestool, Sweeping robot and etc.

    • Toys and models
    • radio control model, automatic cruise control, ride-on toy and etc.

    • Industrial automation
    • display, flow control valves and etc.

    • Precision instruments
    • monitor, optics instruments,automatic vending machine and etc.

    • Automotive products

    conditioning damper actuator, door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB,Car tail gate electric putter,power liftgate and etc.

    • Medical equipments

    blood pressure meter, breath machine, Medical cleaning pump, Medical bed and etc.

    • Electric power tools

    electric drill, screwdriver and etc.

    • cosmetic tool

    eyebrow pencil, Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.

    • Office automation equipments

    OA equipments, scanners, printers, multifunction machines copy machines, fax, FAX paper cutter, computer peripheral, bank machine, Video conference and etc.





    Competitive Advantage


    • 16 years experience in manufacturing motor and gearbox motor
    • Experienced Staff: average 12 years experience in R&D , ODM & OEM
    • International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
    • Competitive Price
    • High Product Performance: Low noise, High efficiency, Long lifespan
    • Prompt Delivery: 20-25 working days after payment
    • Quality Approvals
    • Small Orders Accepted
    • Advanced equipments: Automatic winding machine, stator automatic setting machine, end cover automatic setting machine, automatic soldering machine, etc

    Production Equipment



    30mm Diameter Metal Brush DC Micro Air Pump 3V / 5V / 12V for Beauty Equipment



    30mm Diameter Metal Brush DC Micro Air Pump 3V / 5V / 12V for Beauty Equipment



    Material Warehouse



    Metal Electric Stepper Motor , 5V or Customized Voltage Range Step Motor



    Metal Electric Stepper Motor , 5V or Customized Voltage Range Step Motor



    Production workshop



    Metal Electric Stepper Motor , 5V or Customized Voltage Range Step Motor



    Metal Electric Stepper Motor , 5V or Customized Voltage Range Step Motor



    Dust-free Production workshop



    Metal Electric Stepper Motor , 5V or Customized Voltage Range Step Motor



    Metal Electric Stepper Motor , 5V or Customized Voltage Range Step Motor



    Test Equipment



    Beauty Equipment Use Mini Electric Vacuum Pump with Precious Metal Brush



    Beauty Equipment Use Mini Electric Vacuum Pump with Precious Metal Brush



    Commonly used torque unit conversion table



    N.M mN.m g.cm kg.cm
    1 1000 10200 10.2
    0.001 1 10.2 0.0102





    For more information, please contact us directly or through our sales and representative offices.



    Quality Cotrol Test


    • Reliability Test & Laboratory
    • Noise Test
    • Water-proof Test
    • Life Test
    • Impact Test
    • Storage Test
    • Salt Spray Test
    • Environmental Related Substance
