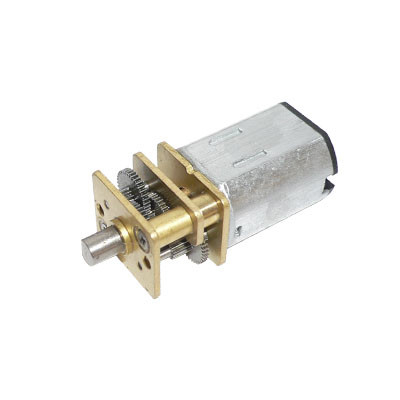

High Precision Gear Motor GM12-N20VA 5V 6V 12V Small High Torque DC Motor / Gear Reduction Motor

High Precision Gear Motor GM12-N20VA 5V 6V 12V Small High Torque DC Motor / Gear Reduction Motor

    • High Precision Gear Motor GM12-N20VA 5V 6V 12V Small High Torque DC Motor / Gear Reduction Motor
  • High Precision Gear Motor GM12-N20VA 5V 6V 12V Small High Torque DC Motor / Gear Reduction Motor

    Product Details:

    Place of Origin: ShenZhen China
    Brand Name: Hofon
    Certification: RoHS/ISO9001:2000/ISO14001/TS16949
    Model Number: GM12-N20VA

    Payment & Shipping Terms:

    Minimum Order Quantity: 2000PCS
    Price: Negotiation
    Packaging Details: Carton Box
    Delivery Time: 35Days
    Supply Ability: 5000KPCS/Month
    Contact Now
    Detailed Product Description
    Voltage Range: 5V Or Customized Material: Metal Gear High Precision Gear
    Diameter: 12mm No Load Speed: 98RPM
    No Load Current: 32mA Rated Load Torque: 422g.cm
    Rated Load Speed: 77RPM Rated Load Current: 122mA
    Gear Ratio: 150:1
    High Light:

    gear reduction motor

    ,

    high torque dc motor

    12mm 5V / 6V / 12V Metal Gear-box motor DC Gear Motor Low Noise and Large Torque High precision gear



    • DC Worm Gear-Box Motor
    • Diameter : Φ10.0mm
    • Output : APPROX 0.1~1.0W
    • Noise Level : Less than 50dB
    • Low noise, stable performance, quality assurance


    Typical Applications


    • Fully automatic electronic door lock

    • Office Automatic Equipments
    • Printer/paper Feeder
    • Bank Equipments Safe Box
    • Ad Equipment
    • Analysis Instrument/electronic
    • Game Machine
    • Household Appliances
    • Electronic Door Lock


    Specifications

    The following specifications are only representative of one of our models. Other performance parameters can be customized according to customer requirements



    Reduction Ratio 1 : 3 1 : 5 1 : 10 1 : 30 1 : 50 1 : 63 1 : 100 1 : 150 1 : 210 1 : 250 1 : 298 1 : 1000



    MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
    OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
    r/min A r/min A mN.m g.cm w mN.m g.cm A
    GM12F-N20VA-08260-150 3.0-6.0 5.0V 98 0.032 77.4 0.122 41.4 422.1 0.335 197.1 2010 0.46
    GM12F-N20VA-10155-298 4.0-7.0 6.0V 75 0.045 62.3 0.224 144.0 1469 0.938 847.3 8642 1.10
    GM12F-N30VA-12120-1000 3.0-6.0 5.0V 15 0.080 11.9 0.303 642.4 6552 0.800 3058.8 31200 1.14
    GM12F-N30VA-11130-30 4.0-7.0 6.0V 590 0.050 484 0.225 15.9 162 0.800 88.2 900 1.02


    Drawing


    High Precision Gear Motor GM12-N20VA 5V 6V 12V Small High Torque DC Motor / Gear Reduction Motor 0


    Product Details Show


    High Precision Gear Motor GM12-N20VA 5V 6V 12V Small High Torque DC Motor / Gear Reduction Motor 1






    Competitive Advantage


    • 16 years experience in manufacturing motor and gearbox motor
    • Experienced Staff: average 12 years experience in R&D , ODM & OEM
    • International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
    • Competitive Price
    • High Product Performance: Low noise, High efficiency, Long lifespan
    • Prompt Delivery: 20-25 working days after payment
    • Quality Approvals
    • Small Orders Accepted
    • Advanced equipments: Automatic winding machine, stator automatic setting machine, end cover automatic setting machine, automatic soldering machine, etc



    Quality Cotrol Test


    • Reliability Test & Laboratory
    • Noise Test
    • Water-proof Test
    • Life Test
    • Impact Test
    • Storage Test
    • Salt Spray Test
    • Environmental Related Substance
