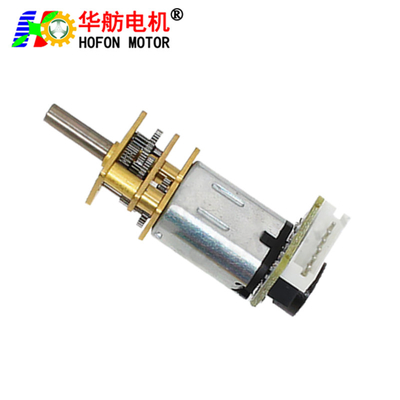

Hofon GM12-N20VA custom 3.6v 3.7v RTS 3v 5v 6v car lock motor smart door lock DC Gear Motor with encoder

Hofon GM12-N20VA custom 3.6v 3.7v RTS 3v 5v 6v car lock motor smart door lock DC Gear Motor with encoder

Hofon GM12-N20VA custom 3.6v 3.7v RTS 3v 5v 6v car lock motor smart door lock DC Gear Motor with encoder
Hofon GM12-N20VA custom 3.6v 3.7v RTS 3v 5v 6v car lock motor smart door lock DC Gear Motor with encoder
Hofon GM12-N20VA custom 3.6v 3.7v RTS 3v 5v 6v car lock motor smart door lock DC Gear Motor with encoder
Product Details:
Place of Origin: ShenZhen China
Brand Name: Hofon Motor
Certification: RoHS/ISO9001:2000/ISO14001/TS16949
Model Number: GM12-N20VA+EN
Payment & Shipping Terms:
Minimum Order Quantity: 2000PCS
Price: Negotiation
Packaging Details: Carton Box
Delivery Time: 35Days
Supply Ability: 5000KPCS/Month
Contact Now
Detailed Product Description
Voltage Range: 5V Or Customized Material: Metal Gear High Precision Gear
Diameter: 24mm No Load Speed: 48RPM
No Load Current: 35mA Rated Load Torque: 500g.cm
Rated Load Speed: 42RPM Rated Load Current: 95mA
Gear Ratio: 250:1

Hofon GM12-N20VA custom 3.6v 3.7v RTS 3v 5v 6v car lock motor smart door lock DC Gear Motor with encoder 0

Hofon GM12-N20VA custom 3.6v 3.7v RTS 3v 5v 6v car lock motor smart door lock DC Gear Motor with encoder 1

Typical Applications:
- Electronic door lock / Monitor / Printer / Robot / Optic equipment / Precision instrument
- Bank equipment / Safe box / Paper feeder / Intelligent gas meter / Tissue machine
- Accessory of automobile / Ad equipment / Analysis instrument / Electronic game machine



Customized Service:

Voltage, speed, torque and other performance parameters can be customized according to requirements.

Shaft length, D-CUT shaft, threaded shaft, encoder, gear box and so on can be customized.



Representative Performance:

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min A r/min A mN.m g.cm w mN.m g.cm A
1# GM12F-N20VA-08230-30+EN 1.5-5.0 3.0V 255 0.025 210 0.065 6 60 0.195 ≥20 ≥200 0.25
2# GM12F-N20VA-08230-50+EN 1.5-5.0 3.0V 154 0.025 125 0.065 10 100 0.195 ≥32 ≥320 0.25
3# GM12F-N20VA-08230-100+EN 1.5-5.0 3.0V 75 0.025 63 0.065 20 200 0.195 ≥70 ≥700 0.25
4# GM12F-N20VA-08230-150+EN 1.5-5.0 3.0V 50 0.025 42 0.065 30 300 0.195 ≥100 ≥1000 0.25
5# GM12F-N20VA-08230-210+EN 1.5-5.0 3.0V 35 0.025 30 0.065 42 420 0.195 ≥130 ≥1300 0.25
6# GM12F-N20VA-08230-250+EN 1.5-5.0 3.0V 30 0.025 25 0.065 50 500 0.195 ≥130 ≥1300 0.25
7# GM12F-N20VA-08230-298+EN 1.5-5.0 3.0V 25 0.025 20 0.065 59.6 596 0.195 ≥130 ≥1300 0.25
8# GM12F-N20VA-08230-30+EN 3.0-7.0 5.0V 400 0.035 350 0.095 6 60 0.475 35.0 350 0.39
9# GM12F-N20VA-08230-50+EN 3.0-7.0 5.0V 240 0.035 210 0.095 10 100 0.475 60.0 600 0.39
10# GM12F-N20VA-08230-100+EN 3.0-7.0 5.0V 120 0.035 105 0.095 20 200 0.475 10.0 1000 0.39
11# GM12F-N20VA-08230-150+EN 3.0-7.0 5.0V 80 0.035 70 0.095 30 300 0.475 137.2 1400 0.39
12# GM12F-N20VA-08230-210+EN 3.0-7.0 5.0V 57 0.035 50 0.095 42 420 0.475 ≥150 ≥1500 0.39
13# GM12F-N20VA-08230-250+EN 3.0-7.0 5.0V 48 0.035 42 0.095 50 500 0.475 ≥150 ≥1500 0.39
14# GM12F-N20VA-08230-298+EN 3.0-7.0 5.0V 40 0.035 35 0.095 59.6 596 0.475 ≥150 ≥1500 0.39
15# GM12F-N20VA-09175-30+EN 1.5-5.0 3.0V 330 0.030 290 0.110 6 60 0.330 24.0 240 0.39
16# GM12F-N20VA-09175-50+EN 1.5-5.0 3.0V 200 0.030 174 0.110 10 100 0.330 40.0 400 0.39
17# GM12F-N20VA-09175-100+EN 1.5-5.0 3.0V 100 0.030 87 0.110 20 200 0.330 72.0 720 0.39
18# GM12F-N20VA-09175-150+EN 1.5-5.0 3.0V 65 0.030 58 0.110 30 300 0.330 108.0 1080 0.39
19# GM12F-N20VA-09175-210+EN 1.5-5.0 3.0V 45 0.030 41 0.110 42 420 0.330 ≥150 ≥1500 0.39
20# GM12F-N20VA-09175-250+EN 1.5-5.0 3.0V 40 0.030 34 0.110 50 500 0.330 ≥150 ≥1500 0.39
21# GM12F-N20VA-09175-298+EN 1.5-5.0 3.0V 32 0.030 29 0.110 59.6 596 0.330 ≥150 ≥1500 0.39
22# GM12F-N20VA-09175-30+EN 3.0-8.0 6.0V 665 0.040 580 0.130 6 60 0.780 40.5 405 0.80
23# GM12F-N20VA-09175-50+EN 3.0-8.0 6.0V 400 0.040 350 0.130 10 100 0.780 67.5 675 0.80
24# GM12F-N20VA-09175-100+EN 3.0-8.0 6.0V 200 0.040 175 0.130 20 200 0.780 135.0 1350 0.80
25# GM12F-N20VA-09175-150+EN 3.0-8.0 6.0V 130 0.040 115 0.130 30 300 0.780 ≥150 ≥1500 0.80
26# GM12F-N20VA-09175-210+EN 3.0-8.0 6.0V 95 0.040 83 0.130 42 420 0.780 ≥150 ≥1500 0.80
27# GM12F-N20VA-09175-250+EN 3.0-8.0 6.0V 80 0.040 70 0.130 50 500 0.780 ≥150 ≥1500 0.80
28# GM12F-N20VA-09175-298+EN 3.0-8.0 6.0V 65 0.040 58 0.130 59.6 596 0.780 ≥150 ≥1500 0.80



Hofon GM12-N20VA custom 3.6v 3.7v RTS 3v 5v 6v car lock motor smart door lock DC Gear Motor with encoder 2

Reduction Ratio 1 : 3 1 : 5 1 : 10 1 : 30 1 : 50 1 : 63 1 : 100 1 : 150 1 : 210 1 : 250 1 : 298 1 : 1000



Hofon GM12-N20VA custom 3.6v 3.7v RTS 3v 5v 6v car lock motor smart door lock DC Gear Motor with encoder 3



Hofon GM12-N20VA custom 3.6v 3.7v RTS 3v 5v 6v car lock motor smart door lock DC Gear Motor with encoder 4

Application

Hofon GM12-N20VA custom 3.6v 3.7v RTS 3v 5v 6v car lock motor smart door lock DC Gear Motor with encoder 5

Company Profile

Hofon GM12-N20VA custom 3.6v 3.7v RTS 3v 5v 6v car lock motor smart door lock DC Gear Motor with encoder 6

Hofon Precise Motor Limited was founded in the year of 2002, to the establishment of the DC micro motor, small modulus gear motor, brushless motor research and development of the manufacture and sale of customer service professional firms.
Hofon products, specialized R & D and manufacturing in consumer electronics, toys, model aircraft, security, automotive electronics and electronic equipment, office equipment to streamline the development of important pieces of the main zero.
Hofon is more conductive to customer demand, with customers to design and develop new products,specifically in the refined products focused on the needs of customers, shorten the cycle of research and development under the precondition of, and continued to enhance customer satisfaction and productivity and to create a positive Hofon customers out of the trust.

We are committed to the Company's production of the motor and gear components with high quality and reasonable price, fast delivery and high satisfaction of marketing services around the world.

Hofon GM12-N20VA custom 3.6v 3.7v RTS 3v 5v 6v car lock motor smart door lock DC Gear Motor with encoder 7


Competitive Advantage

Hofon GM12-N20VA custom 3.6v 3.7v RTS 3v 5v 6v car lock motor smart door lock DC Gear Motor with encoder 8

  • 20 years experience in manufacturing motor and gearbox motor
  • Experienced Staff: average 15 years experience in R&D , ODM & OEM
  • International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
  • Competitive Price
  • High Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 20-25 working days after payment
  • Quality Approvals
  • Small Orders Accepted
  • Advanced equipments: Automatic winding machine, stator automatic setting machine, end cover automatic setting machine, automatic soldering machine, etc



Quality Cotrol Test


  • Reliability Test & Laboratory
  • Noise Test
  • Water-proof Test
  • Life Test
  • Impact Test
  • Storage Test
  • Salt Spray Test
  • Environmental Related Substance

Certifications

Hofon GM12-N20VA custom 3.6v 3.7v RTS 3v 5v 6v car lock motor smart door lock DC Gear Motor with encoder 9



Exhibition

Hofon GM12-N20VA custom 3.6v 3.7v RTS 3v 5v 6v car lock motor smart door lock DC Gear Motor with encoder 10



Packaging & Shipping

Hofon GM12-N20VA custom 3.6v 3.7v RTS 3v 5v 6v car lock motor smart door lock DC Gear Motor with encoder 11

Hofon GM12-N20VA custom 3.6v 3.7v RTS 3v 5v 6v car lock motor smart door lock DC Gear Motor with encoder 12

Hofon GM12-N20VA custom 3.6v 3.7v RTS 3v 5v 6v car lock motor smart door lock DC Gear Motor with encoder 13
