| Place of Origin: | ShenZhen China |
| Brand Name: | Hofon Motor |
| Certification: | RoHS/ISO9001:2000/ISO14001/TS16949 |

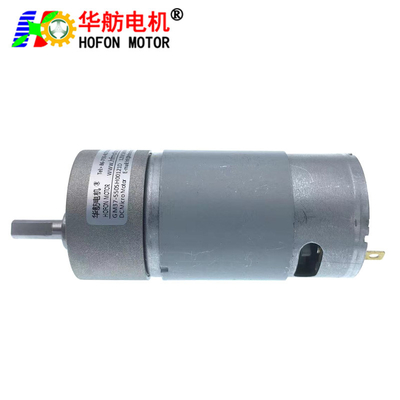

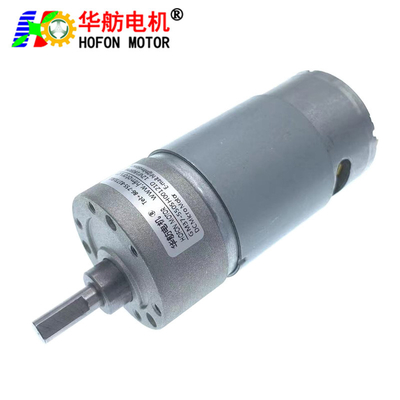

| Model Number: | GM37-555SH |
| Minimum Order Quantity: | 2000PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton Box |
| Delivery Time: | 35Days |
| Supply Ability: | 5000KPCS/Month |
| Voltage Range: | 24V Or Customized | Material: | Metal Gear High Precision Gear |
|---|---|---|---|
| Diameter: | 37mm | No Load Speed: | 100RPM |
| No Load Current: | 600mA | Rated Load Torque: | 35000g.cm |
| Rated Load Speed: | 75RPM | Rated Load Current: | 7000mA |
| Gear Ratio: | 150:1 |
Typical Applications:
- Electronic door lock / Monitor / Printer / Robot / Optic equipment / Precision instrument
- Bank equipment / Safe box / Paper feeder / Intelligent gas meter / Tissue machine
- Accessory of automobile / Ad equipment / Analysis instrument / Electronic game machine
Customized Service:
Voltage, speed, torque and other performance parameters can be customized according to requirements.
Shaft length, D-CUT shaft, threaded shaft, encoder, gear box and so on can be customized.
Representative Performance:
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| r/min | A | r/min | A | mN.m | g.cm | w | mN.m | g.cm | A | ||||
| GM37K-555SH01-6.3 | 20.0-26.0 | 24.0V | 2400 | 0.600 | 1680 | 7.000 | 400 | 4000 | 168.000 | 1330.0 | 13300 | 26.00 | |
| GM37K-555SH01-10 | 20.0-26.0 | 24.0V | 1500 | 0.600 | 1050 | 7.000 | 600 | 6000 | 168.000 | 2100.0 | 21000 | 26.00 | |
| GM37K-555SH01-18 | 20.0-26.0 | 24.0V | 830 | 0.600 | 560 | 7.000 | 1100 | 11000 | 168.000 | 3500MAX | 35000MAX | 26.00 | |
| GM37K-555SH01-30 | 20.0-26.0 | 24.0V | 500 | 0.600 | 350 | 7.000 | 1800 | 18000 | 168.000 | 3500MAX | 35000MAX | 26.00 | |
| GM37K-555SH01-50 | 20.0-26.0 | 24.0V | 300 | 0.600 | 210 | 7.000 | 3000 | 30000 | 168.000 | 3500MAX | 35000MAX | 26.00 | |
| GM37K-555SH01-90 | 20.0-26.0 | 24.0V | 165 | 0.600 | 120 | 7.000 | 3500 | 35000 | 168.000 | 3500MAX | 35000MAX | 26.00 | |
| GM37K-555SH01-150 | 20.0-26.0 | 24.0V | 100 | 0.600 | 75 | 7.000 | 3500 | 35000 | 168.000 | 3500MAX | 35000MAX | 26.00 | |
| GM37K-555SH01-270 | 20.0-26.0 | 24.0V | 54 | 0.600 | 45 | 7.000 | 3500 | 35000 | 168.000 | 3500MAX | 35000MAX | 26.00 | |
| GM37K-555SH01-450 | 20.0-26.0 | 24.0V | 32 | 0.600 | 25 | 7.000 | 3500 | 35000 | 168.000 | 3500MAX | 35000MAX | 26.00 | |
| GM37K-555SH01-6.3 | 9.0-14.0 | 12.0V | 1200 | 0.450 | 840 | 3.400 | 200 | 2000 | 40.800 | 665.0 | 6650 | 13.00 | |
| GM37K-555SH01-10 | 9.0-14.0 | 12.0V | 750 | 0.450 | 525 | 3.400 | 300 | 3000 | 40.800 | 1050.0 | 10500 | 13.00 | |
| GM37K-555SH01-18 | 9.0-14.0 | 12.0V | 415 | 0.450 | 280 | 3.400 | 550 | 5500 | 40.800 | 1890.0 | 18900 | 13.00 | |
| GM37K-555SH01-30 | 9.0-14.0 | 12.0V | 250 | 0.450 | 175 | 3.400 | 900 | 9000 | 40.800 | 3150.0 | 31500 | 13.00 | |
| GM37K-555SH01-50 | 9.0-14.0 | 12.0V | 150 | 0.450 | 105 | 3.400 | 1500 | 15000 | 40.800 | 3500MAX | 35000MAX | 13.00 | |
| GM37K-555SH01-90 | 9.0-14.0 | 12.0V | 82 | 0.450 | 58 | 3.400 | 2700 | 27000 | 40.800 | 3500MAX | 35000MAX | 13.00 | |
| GM37K-555SH01-150 | 9.0-14.0 | 12.0V | 50 | 0.450 | 35 | 3.400 | 3500 | 35000 | 40.800 | 3500MAX | 35000MAX | 13.00 | |
| GM37K-555SH01-270 | 9.0-14.0 | 12.0V | 27 | 0.450 | 21 | 3.400 | 3500 | 35000 | 40.800 | 3500MAX | 35000MAX | 13.00 | |
| GM37K-555SH01-450 | 9.0-14.0 | 12.0V | 16 | 0.450 | 12 | 3.400 | 3500 | 35000 | 40.800 | 3500MAX | 35000MAX | 13.00 | |
| GM37K-555SH02-6.3 | 9.0-14.0 | 12.0V | 2650 | 1.000 | 1700 | 5.500 | 200 | 2000 | 66.000 | 567.0 | 5670 | 20.00 | |
| GM37K-555SH02-10 | 9.0-14.0 | 12.0V | 1650 | 1.000 | 1100 | 5.500 | 300 | 3000 | 66.000 | 900.0 | 9000 | 20.00 | |
| GM37K-555SH02-18 | 9.0-14.0 | 12.0V | 875 | 1.000 | 580 | 5.500 | 550 | 5500 | 66.000 | 1620.0 | 16200 | 20.00 | |
| GM37K-555SH02-30 | 9.0-14.0 | 12.0V | 550 | 1.000 | 360 | 5.500 | 900 | 9000 | 66.000 | 2700.0 | 27000 | 20.00 | |
| GM37K-555SH02-50 | 9.0-14.0 | 12.0V | 330 | 1.000 | 215 | 5.500 | 1500 | 15000 | 66.000 | 3500MAX | 35000MAX | 20.00 | |
| GM37K-555SH02-90 | 9.0-14.0 | 12.0V | 180 | 1.000 | 120 | 5.500 | 2700 | 27000 | 66.000 | 3500MAX | 35000MAX | 20.00 | |
| GM37K-555SH02-150 | 9.0-14.0 | 12.0V | 110 | 1.000 | 70 | 5.500 | 3500 | 35000 | 66.000 | 3500MAX | 35000MAX | 20.00 | |
| GM37K-555SH02-270 | 9.0-14.0 | 12.0V | 60 | 1.000 | 50 | 4.200 | 3500 | 35000 | 66.000 | 3500MAX | 35000MAX | 20.00 | |
| GM37K-555SH02-450 | 9.0-14.0 | 12.0V | 36 | 1.000 | 24 | 3.500 | 3500 | 35000 | 66.000 | 3500MAX | 35000MAX | 20.00 | |
| GM37K-555SH02-50 | 3.0-8.0 | 6.0V | 165 | 0.900 | 105 | 3.200 | 750 | 7500 | 19.200 | 2250.0 | 22500 | 10.00 | |
| GM37K-555SH02-90 | 3.0-8.0 | 6.0V | 90 | 0.900 | 60 | 3.200 | 1300 | 13000 | 19.200 | 3500MAX | 35000MAX | 10.00 | |
| GM37K-555SH02-150 | 3.0-8.0 | 6.0V | 55 | 0.900 | 36 | 3.200 | 2100 | 21000 | 19.200 | 3500MAX | 35000MAX | 10.00 | |
| GM37K-555SH02-270 | 3.0-8.0 | 6.0V | 30 | 0.900 | 20 | 3.200 | 3500 | 35000 | 19.200 | 3500MAX | 35000MAX | 10.00 | |
| GM37K-555SH02-450 | 3.0-8.0 | 6.0V | 18 | 0.900 | 16 | 2.300 | 3500 | 35000 | 13.800 | 3500MAX | 35000MAX | 10.00 |
|
|
|||||||||||||||||||||||||||||
