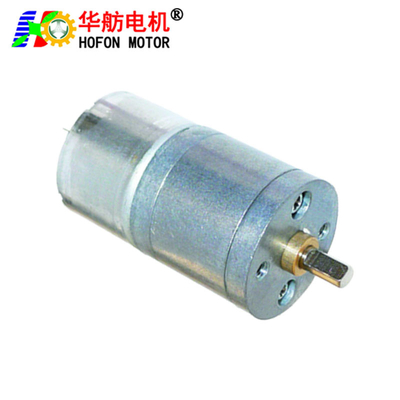

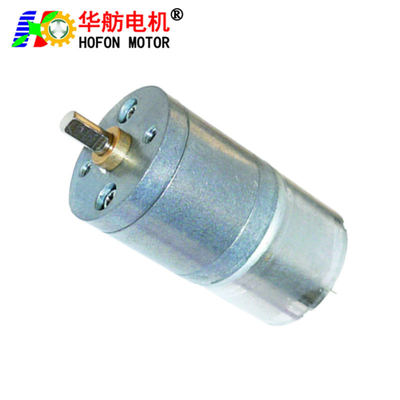

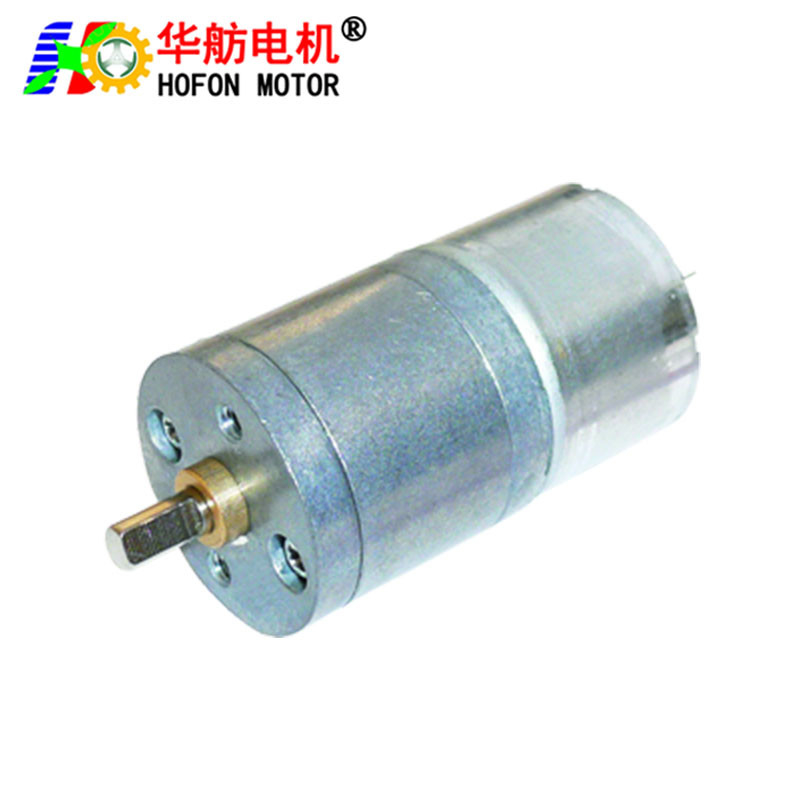

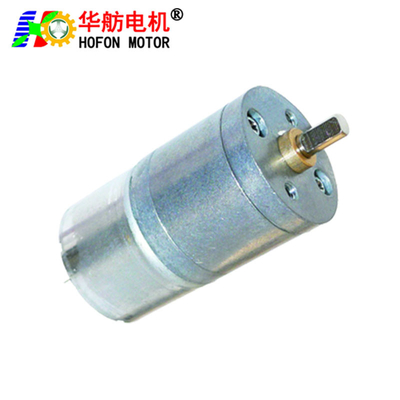

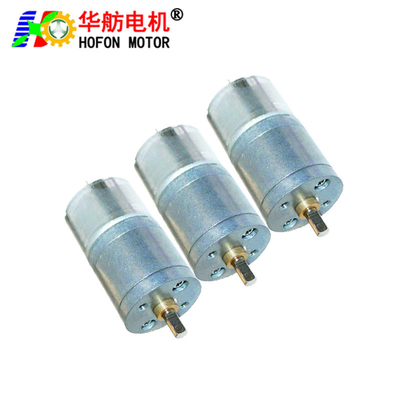

25mm 330CH Hofon Motor DC micro reduction motor brushed gear motor large torque for Electric tools 5V 12V 24V

25mm 330CH Hofon Motor DC micro reduction motor brushed gear motor large torque for Electric tools 5V 12V 24V

25mm 330CH Hofon Motor DC micro reduction motor brushed gear motor large torque for Electric tools 5V 12V 24V
25mm 330CH Hofon Motor DC micro reduction motor brushed gear motor large torque for Electric tools 5V 12V 24V
25mm 330CH Hofon Motor DC micro reduction motor brushed gear motor large torque for Electric tools 5V 12V 24V
Product Details:
Place of Origin: ShenZhen China
Brand Name: Hofon Motor
Certification: RoHS/ISO9001:2000/ISO14001/TS16949
Model Number: GM25-330CH
Payment & Shipping Terms:
Minimum Order Quantity: 2000PCS
Price: Negotiation
Packaging Details: Carton Box
Delivery Time: 35Days
Supply Ability: 5000KPCS/Month
Contact Now
Detailed Product Description
Voltage Range: 5V Or Customized Material: Metal Gear High Precision Gear
Diameter: 24mm No Load Speed: 98RPM
No Load Current: 32mA Rated Load Torque: 422g.cm
Rated Load Speed: 77RPM Rated Load Current: 122mA
Gear Ratio: 150:1

25mm 330CH Hofon Motor DC micro reduction motor brushed gear motor large torque for Electric tools 5V 12V 24V 0

25mm 330CH Hofon Motor DC micro reduction motor brushed gear motor large torque for Electric tools 5V 12V 24V 1

Typical Applications:
- Electronic door lock / Monitor / Printer / Robot / Optic equipment / Precision instrument
- Bank equipment / Safe box / Paper feeder / Intelligent gas meter / Tissue machine
- Accessory of automobile / Ad equipment / Analysis instrument / Electronic game machine



Customized Service:

Voltage, speed, torque and other performance parameters can be customized according to requirements.

Shaft length, D-CUT shaft, threaded shaft, encoder, gear box and so on can be customized.



Representative Performance:

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min A r/min A mN.m g.cm w mN.m g.cm A
GM25F-330CH-11440-26.9 3.0-8.0 6V 105 0.016 81 0.050 11.5 115 0.200 40.0 400 0.12
GM25F-330CH-11440-35.5 3.0-8.0 6V 80 0.016 61 0.050 15 150 0.200 53.0 530 0.12
GM25F-330CH-11440-46.9 3.0-8.0 6V 60 0.016 47 0.050 20 200 0.200 70.0 700 0.12
GM25F-330CH-11440-59.2 3.0-8.0 6V 47 0.016 37 0.050 25 250 0.200 88.0 880 0.12
GM25F-330CH-11440-78.1 3.0-8.0 6V 36 0.016 28 0.050 33.5 335 0.200 115.0 1150 0.12
GM25F-330CH-11440-103 3.0-8.0 6V 27 0.016 21 0.050 44 440 0.200 150.0 1500 0.12
GM25F-330CH-11440-130 3.0-8.0 6V 22 0.016 174 0.050 55.9 559 0.200 195.0 1950 0.12
GM25F-330CH-11440-172 3.0-8.0 6V 16 0.016 12.5 0.050 73.5 735 0.200 250.0 2500 0.12
GM25F-330CH-11440-227 3.0-8.0 6V 12 0.016 9.5 0.050 97.5 975 0.200 340.0 3400 0.12
GM25F-330CH-11440-286 3.0-8.0 6V 9.5 0.016 7.5 0.050 122.5 1225 0.200 420.0 4200 0.12
GM25F-330CH-11440-378 3.0-8.0 6V 7.5 0.016 5.5 0.050 162.5 1625 0.200 565.0 5650 0.12
GM25F-330CH-11440-499 3.0-8.0 6V 5.5 0.016 4 0.050 214.5 2145 0.200 748.0 7480 0.12
GM25F-330CH-11440-26.9 8.0-15.0 12V 210 0.020 162 0.068 23 230 0.389 80.0 800 0.23
GM25F-330CH-11440-35.5 8.0-15.0 12V 160 0.020 122 0.068 30 300 0.389 105.0 1050 0.23
GM25F-330CH-11440-46.9 8.0-15.0 12V 120 0.020 94 0.068 40 400 0.389 140.0 1400 0.23
GM25F-330CH-11440-59.2 8.0-15.0 12V 95 0.020 74 0.068 50 500 0.389 170.0 1700 0.23
GM25F-330CH-11440-78.1 8.0-15.0 12V 73 0.020 56 0.068 67 670 0.389 230.0 2300 0.23
GM25F-330CH-11440-103 8.0-15.0 12V 55 0.020 42 0.068 88 880 0.389 300.0 3000 0.23
GM25F-330CH-11440-130 8.0-15.0 12V 44 0.020 34 0.068 109.6 1118 0.389 476.7 4862 0.23
GM25F-330CH-11440-172 8.0-15.0 12V 33 0.020 25 0.068 147 1470 0.389 6436.0 6430 0.23
GM25F-330CH-11440-227 8.0-15.0 12V 25 0.020 19 0.068 195 1950 0.389 800.0 8000 0.23
GM25F-330CH-11440-286 8.0-15.0 12V 19 0.020 15 0.068 245 2450 0.389 ≥900 ≥9000 0.23
GM25F-330CH-11440-378 8.0-15.0 12V 15 0.020 11 0.068 325 3250 0.389 ≥900 ≥9000 0.23



25mm 330CH Hofon Motor DC micro reduction motor brushed gear motor large torque for Electric tools 5V 12V 24V 2

Reduction Ratio 1 : 26.9 1 : 35.5 1 : 46.9 1 : 59.2 1 : 78.1 1 : 103 1 : 130 1 : 172 1 : 227 1 : 286 1 : 378 1 : 499
Length gearbox (L) 21 23 25 27

25mm 330CH Hofon Motor DC micro reduction motor brushed gear motor large torque for Electric tools 5V 12V 24V 3

25mm 330CH Hofon Motor DC micro reduction motor brushed gear motor large torque for Electric tools 5V 12V 24V 4

Application

25mm 330CH Hofon Motor DC micro reduction motor brushed gear motor large torque for Electric tools 5V 12V 24V 5

Company Profile

25mm 330CH Hofon Motor DC micro reduction motor brushed gear motor large torque for Electric tools 5V 12V 24V 6

Hofon Precise Motor Limited was founded in the year of 2002, to the establishment of the DC micro motor, small modulus gear motor, brushless motor research and development of the manufacture and sale of customer service professional firms.
Hofon products, specialized R & D and manufacturing in consumer electronics, toys, model aircraft, security, automotive electronics and electronic equipment, office equipment to streamline the development of important pieces of the main zero.
Hofon is more conductive to customer demand, with customers to design and develop new products,specifically in the refined products focused on the needs of customers, shorten the cycle of research and development under the precondition of, and continued to enhance customer satisfaction and productivity and to create a positive Hofon customers out of the trust.

We are committed to the Company's production of the motor and gear components with high quality and reasonable price, fast delivery and high satisfaction of marketing services around the world.

25mm 330CH Hofon Motor DC micro reduction motor brushed gear motor large torque for Electric tools 5V 12V 24V 7


Competitive Advantage

25mm 330CH Hofon Motor DC micro reduction motor brushed gear motor large torque for Electric tools 5V 12V 24V 8

  • 20 years experience in manufacturing motor and gearbox motor
  • Experienced Staff: average 15 years experience in R&D , ODM & OEM
  • International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
  • Competitive Price
  • High Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 20-25 working days after payment
  • Quality Approvals
  • Small Orders Accepted
  • Advanced equipments: Automatic winding machine, stator automatic setting machine, end cover automatic setting machine, automatic soldering machine, etc



Quality Cotrol Test


  • Reliability Test & Laboratory
  • Noise Test
  • Water-proof Test
  • Life Test
  • Impact Test
  • Storage Test
  • Salt Spray Test
  • Environmental Related Substance
