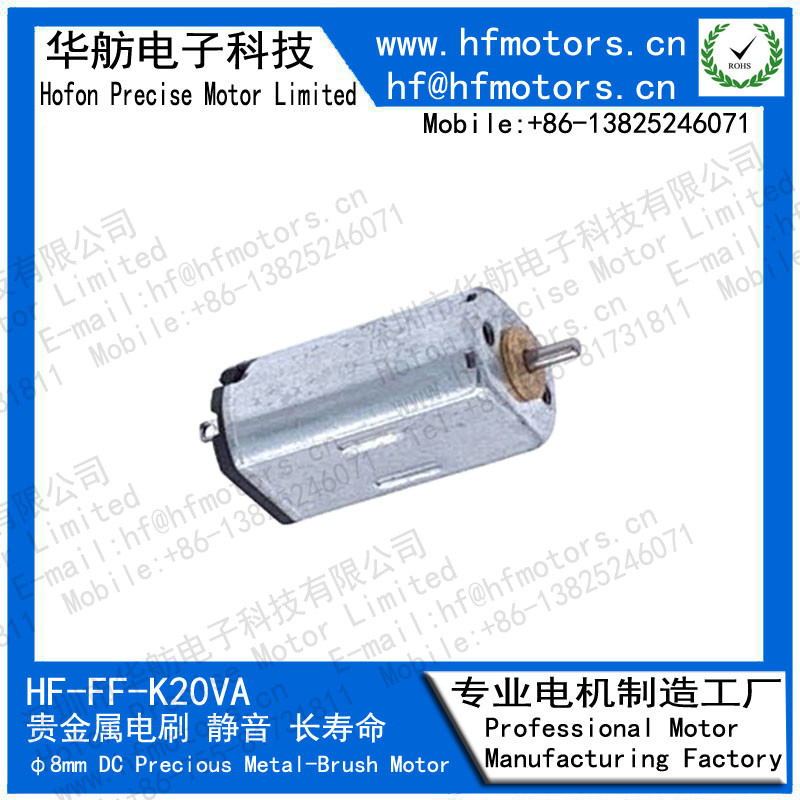

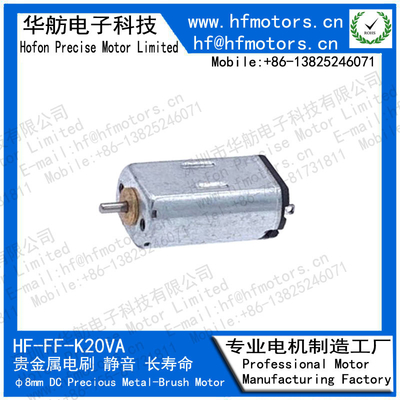

K20VA For digital camera, Infrared detector 8mm Brushed Motor Micro DC Motor 1.5V 3V / 6V / 12V

K20VA For digital camera, Infrared detector 8mm Brushed Motor Micro DC Motor 1.5V 3V / 6V / 12V

  • K20VA For digital camera, Infrared detector 8mm Brushed Motor Micro DC Motor 1.5V 3V / 6V / 12V
  • K20VA For digital camera, Infrared detector 8mm Brushed Motor Micro DC Motor 1.5V 3V / 6V / 12V
  • K20VA For digital camera, Infrared detector 8mm Brushed Motor Micro DC Motor 1.5V 3V / 6V / 12V
K20VA For digital camera, Infrared detector 8mm Brushed Motor Micro DC Motor 1.5V 3V / 6V / 12V
Product Details:
Place of Origin: ShenZhen China
Brand Name: Hofon
Certification: RoHS/ISO9001:2000/ISO14001/TS16949
Model Number: FF-K20WA
Payment & Shipping Terms:
Minimum Order Quantity: 5000PCS
Price: Negotiation
Packaging Details: Carton Box
Delivery Time: 25Days
Supply Ability: 5000KPCS/Month
Contact Now
Detailed Product Description
Voltage Range: 1.5V Or Customized Material: Precious Metal Brush
Diameter: 8mm No Load Speed: 9700RPM
No Load Current: 30mA Rated Load Torque: 0.6g.cm
Rated Load Speed: 7100RPM Rated Load Current: 80mA
Stall Torque: 3.0g.cm Stall Current: 230mA
High Light:

brush type dc motor

,

brushed electric motor

8mm Brushed Motor Micro DC Motor 3V / 6V / 12V For lianr Robot Toy


Typical Applications


  • Automotive products

conditioning damper actuator, door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB,Car tail gate electric putter,power liftgate and etc.

  • Medical equipments

blood pressure meter, breath machine, Medical cleaning pump, Medical bed and etc.

  • Electric power tools

electric drill, screwdriver and etc.

  • Toys and models

radio control model, automatic cruise control, ride-on toy and etc.

  • Industrial automation

display, flow control valves and etc.

  • Precision instruments

monitor, optics instruments,automatic vending machine and etc.



  • DC Micro Precious metal brushed Motor
  • Diameter : Φ8.0mm
  • Output : APPROX 0.1~20.0W
  • Noise Level : Less than 50dB
  • Low noise, stable performance, quality assurance
  • Household application

  • electric shaver, tooth brush, kitchen appliances, hair clipper, sewing machines, massager, vibrator, hair dryer, rubdown machine, corn popper, scissor hair machine, vacuum cleaner, garden tool, sanitary ware, window curtain, coffee machine, whisk, intelligent closestool, Sweeping robot and etc.


Specifications and Drawing

The following specifications are only representative of one of our models. Other performance parameters can be customized according to customer requirements



K20VA For digital camera, Infrared detector 8mm Brushed Motor Micro DC Motor 1.5V 3V / 6V / 12V 0






Product Details Show


K20VA For digital camera, Infrared detector 8mm Brushed Motor Micro DC Motor 1.5V 3V / 6V / 12V 1

Competitive Advantage


  • Competitive Price
  • High Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 20-25 working days after payment
  • Quality Approvals
  • 16 years experience in manufacturing motor and gearbox motor
  • Experienced Staff: average 12 years experience in R&D , ODM & OEM
  • International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
  • Small Orders Accepted
  • Advanced equipments: Automatic winding machine, stator automatic setting machine, end cover automatic setting machine, automatic soldering machine, etc



Quality Cotrol Test


  • Reliability Test & Laboratory
  • Noise Test
  • Water-proof Test
  • Life Test
  • Impact Test
  • Storage Test
  • Salt Spray Test
  • Environmental Related Substance



Material Warehouse

Metal Electric Stepper Motor , 5V or Customized Voltage Range Step Motor



Metal Electric Stepper Motor , 5V or Customized Voltage Range Step Motor







Production workshop

Metal Electric Stepper Motor , 5V or Customized Voltage Range Step Motor



Metal Electric Stepper Motor , 5V or Customized Voltage Range Step Motor







Dust-free Production workshop

Metal Electric Stepper Motor , 5V or Customized Voltage Range Step Motor



Metal Electric Stepper Motor , 5V or Customized Voltage Range Step Motor







Production Equipment

30mm Diameter Metal Brush DC Micro Air Pump 3V / 5V / 12V for Beauty Equipment



30mm Diameter Metal Brush DC Micro Air Pump 3V / 5V / 12V for Beauty Equipment







Test Equipment



Beauty Equipment Use Mini Electric Vacuum Pump with Precious Metal Brush



Beauty Equipment Use Mini Electric Vacuum Pump with Precious Metal Brush



Commonly used torque unit conversion table



N.M mN.m g.cm kg.cm
1 1000 10200 10.2
0.001 1 10.2 0.0102
