Place of Origin: | ShenZhen China |
Brand Name: | Hofon |
Certification: | RoHS/ISO9001:2000/ISO14001/TS16949 |
Model Number: | RK-500TB |
Minimum Order Quantity: | 5000PCS |
---|---|
Price: | Negotiation |
Packaging Details: | Carton Box |
Delivery Time: | 25Days |
Supply Ability: | 5000KPCS/Month |
Voltage Range: | 9V Or Customized | Material: | Carbon Brush |
---|---|---|---|
Diameter: | 32mm | No Load Speed: | 14000RPM |
No Load Current: | 195mA | Rated Load Torque: | 20g.cm |
Rated Load Speed: | 12500RPM | Rated Load Current: | 650mA |
Stall Torque: | 140g.cm | Stall Current: | 6250mA |
High Light: | brush type dc motor,brushed electric motor |
Specifications and Drawing
The following specifications are only representative of one of our models. Other performance parameters can be customized according to customer requirements
Motor Specifications | |||||
Type:RK-500TB16 | |||||
Voltage | DC 3.0V | DC 5.0V | DC 6.0V | DC 9.0V | DC 12.0V |
No Load Speed(RPM) | 4600 | 7700 | 9300 | 14000 | 18500 |
No Load Current(mA) | ≤70 | ≤110 | ≤130 | ≤195 | ≤260 |
Rated Load(g.cm) | 7 | 10 | 13 | 20 | 26 |
Rated Load Speed(RPM) | 4000 | 6800 | 8200 | 12500 | 16000 |
Rated Load Current(mA) | ≤220 | ≤370 | ≤450 | ≤650 | ≤870 |
Stall Torque(g.cm) | ≥50 | ≥70 | ≥90 | ≥140 | ≥190 |
Stall Current(mA) | ≤2100 | ≤3500 | ≤4200 | ≤6250 | ≤8300 |
Product Details Show
Competitive Advantage
Quality Cotrol Test

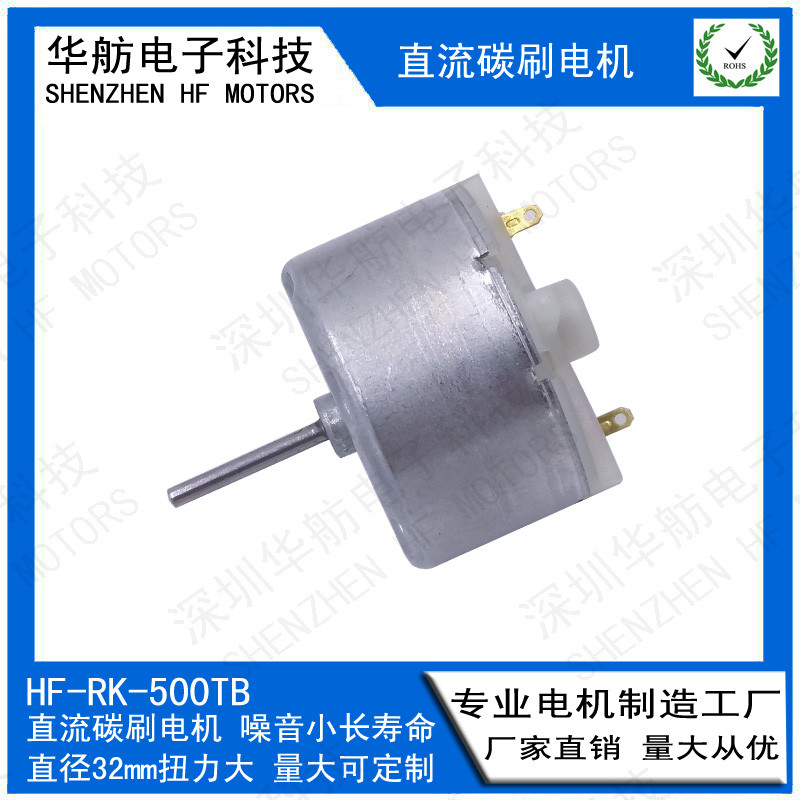

32mm High Performance Strong Magnet Carbon Brush Motor For Cleaning Robot Vacuum Cleaner Household appliances
Typical Applications
Household application
electric shaver, tooth brush, kitchen appliances, hair clipper, sewing machines, massager, vibrator, hair dryer, rubdown machine, corn popper, scissor hair machine, vacuum cleaner, garden tool, sanitary ware, window curtain, coffee machine, whisk, intelligent closestool, Sweeping robot and etc.
conditioning damper actuator, door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB,Car tail gate electric putter,power liftgate and etc.
blood pressure meter, breath machine, Medical cleaning pump, Medical bed and etc.
electric drill, screwdriver and etc.
eyebrow pencil, Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.
OA equipments, scanners, printers, multifunction machines copy machines, fax, FAX paper cutter, computer peripheral, bank machine, Video conference and etc.
radio control model, automatic cruise control, ride-on toy and etc.
display, flow control valves and etc.
monitor, optics instruments,automatic vending machine and etc.
