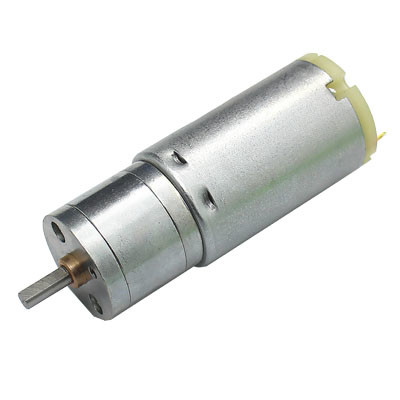

High Precision Gear Motor 25mm RoHS / ISO / TS16949 Certificated

High Precision Gear Motor 25mm RoHS / ISO / TS16949 Certificated

  • High Precision Gear Motor 25mm RoHS / ISO / TS16949 Certificated
High Precision Gear Motor 25mm RoHS / ISO / TS16949 Certificated
Product Details:
Place of Origin: ShenZhen China
Brand Name: Hofon
Certification: RoHS/ISO9001:2000/ISO14001/TS16949
Model Number: GM25-395SA
Payment & Shipping Terms:
Minimum Order Quantity: 2000PCS
Price: Negotiation
Packaging Details: Carton Box
Delivery Time: 35Days
Supply Ability: 5000KPCS/Month
Contact Now
Detailed Product Description
Voltage Range: 24V Or Customized Material: Metal Gear High Precision Gear
Diameter: 25mm No Load Speed: 320RPM
No Load Current: 100mA Rated Load Torque: 2000g.cm
Rated Load Speed: 280RPM Rated Load Current: 480mA
Gear Ratio: 35:1
High Light:

gear reduction motor

,

geared electric motor

sanitary ware Metal Gear-box motor 5V / 6V / 12V / 24V DC Gear Motor 25mm





  • Electric power tools

electric drill, screwdriver and etc.

  • cosmetic tool

eyebrow pencil, Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.

  • Office automation equipments

OA equipments, scanners, printers, multifunction machines copy machines, fax, FAX paper cutter, computer peripheral, bank machine, Video conference and etc.

  • Toys and models

radio control model, automatic cruise control, ride-on toy and etc.

  • Industrial automation

display, flow control valves and etc.

  • Precision instruments

monitor, optics instruments,automatic vending machine and etc.



  • DC Gear-Box Motor
  • Diameter : Φ20.0mm
  • Output : APPROX 0.1~10.0W
  • Noise Level : Less than 50dB
  • Low noise, stable performance, quality assurance

Typical Applications


  • Household application

electric shaver, tooth brush, kitchen appliances, hair clipper, sewing machines, massager, vibrator, hair dryer, rubdown machine, corn popper, scissor hair machine, vacuum cleaner, garden tool, sanitary ware, window curtain, coffee machine, whisk, intelligent closestool, Sweeping robot and etc.

  • Automotive products

conditioning damper actuator, door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB,Car tail gate electric putter,power liftgate and etc.

  • Medical equipments

blood pressure meter, breath machine, Medical cleaning pump, Medical bed and etc.




Specifications

The following specifications are only representative of one of our models. Other performance parameters can be customized according to customer requirements



Reduction Ratio 1 : 9.6 1 : 26.9 1 :35 1 : 47 1 : 78 1 : 103 1:130 1:172 1:227 1:286 1:378 1:499



MODEL VOLTAGE NO LOAD AT RATED LOAD Max Instant Torque of Gear Box
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE Gear Ratio
r/min A r/min A mN.m g.cm w mN.m g.cm
GM25F-395SA-19080-35 22.0-25.0 24.0V 320 0.100 280 0.480 196 2000 11.52 1078 11000 35
GM25F-395SA-19080-78 22.0-25.0 24.0V 143 0.120 125 0.500 436.9 4457 12.00 1470 15000 78
GM25F-395SA-19080-130 22.0-25.0 24.0V 85 0.150 75 0.550 728.2 7428 13.20 1470 15000 130
GM25F-395SA-19080-378 22.0-25.0 24.0V 29 0.180 27 0.600 784.3 8000 12.40 1470 15000 378


Drawing


High Precision Gear Motor 25mm RoHS / ISO / TS16949 Certificated 0


Product Details Show


High Precision Gear Motor 25mm RoHS / ISO / TS16949 Certificated 1

Competitive Advantage


  • 16 years experience in manufacturing motor and gearbox motor
  • Experienced Staff: average 12 years experience in R&D , ODM & OEM
  • International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
  • Competitive Price
  • High Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 20-25 working days after payment
  • Quality Approvals
  • Small Orders Accepted
  • Advanced equipments: Automatic winding machine, stator automatic setting machine, end cover automatic setting machine, automatic soldering machine, etc



Quality Cotrol Test


  • Reliability Test & Laboratory
  • Noise Test
  • Water-proof Test
  • Life Test
  • Impact Test
  • Storage Test
  • Salt Spray Test
  • Environmental Related Substance



Production Equipment



30mm Diameter Metal Brush DC Micro Air Pump 3V / 5V / 12V for Beauty Equipment



30mm Diameter Metal Brush DC Micro Air Pump 3V / 5V / 12V for Beauty Equipment



Material Warehouse



Metal Electric Stepper Motor , 5V or Customized Voltage Range Step Motor



Metal Electric Stepper Motor , 5V or Customized Voltage Range Step Motor



Production workshop



Metal Electric Stepper Motor , 5V or Customized Voltage Range Step Motor



Metal Electric Stepper Motor , 5V or Customized Voltage Range Step Motor



Dust-free Production workshop



Metal Electric Stepper Motor , 5V or Customized Voltage Range Step Motor



Metal Electric Stepper Motor , 5V or Customized Voltage Range Step Motor



Test Equipment



Beauty Equipment Use Mini Electric Vacuum Pump with Precious Metal Brush



Beauty Equipment Use Mini Electric Vacuum Pump with Precious Metal Brush



Commonly used torque unit conversion table



N.M mN.m g.cm kg.cm
1 1000 10200 10.2
0.001 1 10.2 0.0102
