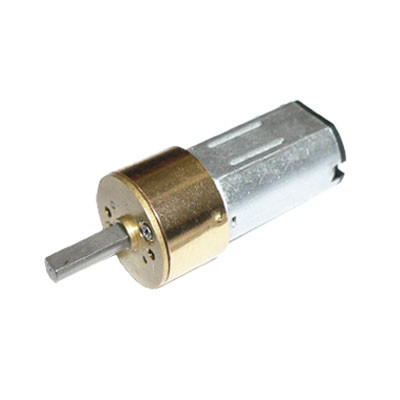

14mm 2.5V / 6V / 12V Metal Gear-box motor DC Gear Motor Low Noise andHigh precision gear

14mm 2.5V / 6V / 12V Metal Gear-box motor DC Gear Motor Low Noise andHigh precision gear

  • 14mm 2.5V / 6V / 12V Metal Gear-box motor DC Gear Motor Low Noise andHigh precision gear
14mm 2.5V / 6V / 12V Metal Gear-box motor DC Gear Motor Low Noise andHigh precision gear
Product Details:
Place of Origin: ShenZhen China
Brand Name: Hofon
Certification: RoHS/ISO9001:2000/ISO14001/TS16949
Model Number: GM14-N30VA
Payment & Shipping Terms:
Minimum Order Quantity: 2000PCS
Price: Negotiation
Packaging Details: Carton Box
Delivery Time: 35Days
Supply Ability: 5000KPCS/Month
Contact Now
Detailed Product Description
Voltage Range: 2.5V Or Customized Material: Metal Gear High Precision Gear
Diameter: 14mm No Load Speed: 100RPM
No Load Current: 80mA Rated Load Torque: 90g.cm
Rated Load Speed: 76RPM Rated Load Current: 140mA
Gear Ratio: 50:1
High Light:

gear reduction motor

,

geared electric motor

14mm 2.5V / 6V / 12V Metal Gear-box motor DC Gear Motor Low Noise andHigh precision gear



  • DC Worm Gear-Box Motor
  • Diameter : Φ14.0mm
  • Output : APPROX 0.1~1.0W
  • Noise Level : Less than 50dB
  • Low noise, stable performance, quality assurance


Typical Applications


  • Fully automatic electronic door lock

  • Office Automatic Equipments
  • Printer/paper Feeder
  • Bank Equipments Safe Box
  • Ad Equipment
  • Analysis Instrument/electronic
  • Game Machine
  • Household Appliances
  • Electronic Door Lock


Specifications

The following specifications are only representative of one of our models. Other performance parameters can be customized according to customer requirements



Reduction Ratio 1 : 3 1 : 5 1 : 10 1 : 30 1 : 50 1 : 63 1 : 100 1 : 150 1 : 210 1 : 250 1 : 298 1 : 1000



MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min A r/min A mN.m g.cm w mN.m g.cm A
GM14F-N30VA-09210-50 2.0-3.0 2.5V 100 0.080 76 0.140 88.2 90 0.350 29.4 300 0.30


Drawing


14mm 2.5V / 6V / 12V Metal Gear-box motor DC Gear Motor Low Noise andHigh precision gear 0


Product Details Show


14mm 2.5V / 6V / 12V Metal Gear-box motor DC Gear Motor Low Noise andHigh precision gear 1


Competitive Advantage


  • 16 years experience in manufacturing motor and gearbox motor
  • Experienced Staff: average 12 years experience in R&D , ODM & OEM
  • International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
  • Competitive Price
  • High Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 20-25 working days after payment
  • Quality Approvals
  • Small Orders Accepted
  • Advanced equipments: Automatic winding machine, stator automatic setting machine, end cover automatic setting machine, automatic soldering machine, etc



Quality Cotrol Test


  • Reliability Test & Laboratory
  • Noise Test
  • Water-proof Test
  • Life Test
  • Impact Test
  • Storage Test
  • Salt Spray Test
  • Environmental Related Substance

Material Warehouse



Metal Electric Stepper Motor , 5V or Customized Voltage Range Step Motor



Metal Electric Stepper Motor , 5V or Customized Voltage Range Step Motor



Production Equipment



30mm Diameter Metal Brush DC Micro Air Pump 3V / 5V / 12V for Beauty Equipment



30mm Diameter Metal Brush DC Micro Air Pump 3V / 5V / 12V for Beauty Equipment





Production workshop



Metal Electric Stepper Motor , 5V or Customized Voltage Range Step Motor



Metal Electric Stepper Motor , 5V or Customized Voltage Range Step Motor



Dust-free Production workshop



Metal Electric Stepper Motor , 5V or Customized Voltage Range Step Motor



Metal Electric Stepper Motor , 5V or Customized Voltage Range Step Motor



Test Equipment



Beauty Equipment Use Mini Electric Vacuum Pump with Precious Metal Brush



Beauty Equipment Use Mini Electric Vacuum Pump with Precious Metal Brush



Commonly used torque unit conversion table



N.M mN.m g.cm kg.cm
1 1000 10200 10.2
0.001 1 10.2 0.0102
