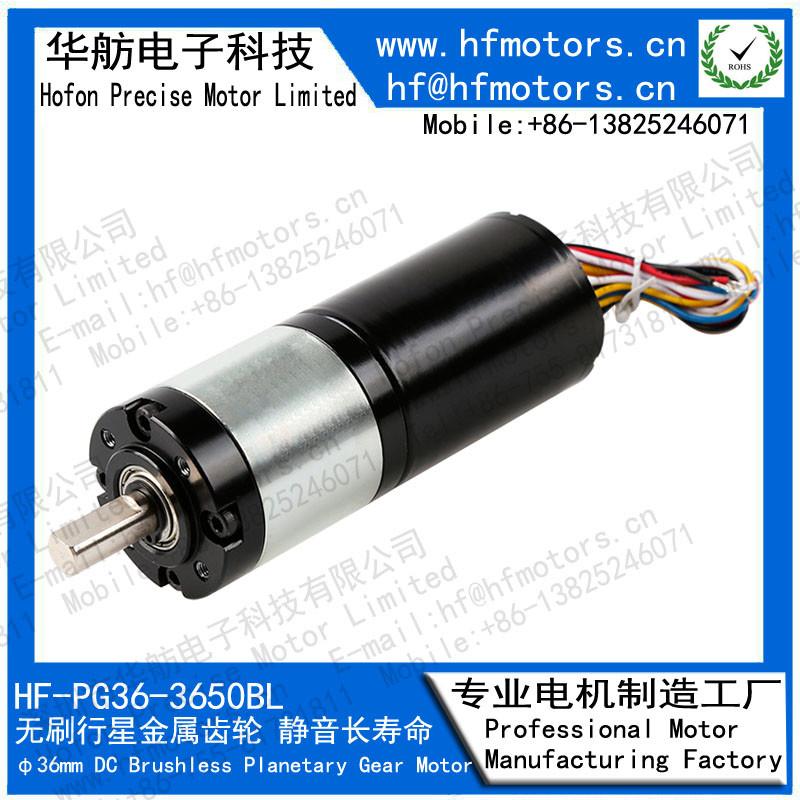

Hofon 160RPM 24v Brushless Dc Motor With Planetary Gear

Hofon 160RPM 24v Brushless Dc Motor With Planetary Gear

Hofon 160RPM 24v Brushless Dc Motor With Planetary Gear
Hofon 160RPM 24v Brushless Dc Motor With Planetary Gear
Hofon 160RPM 24v Brushless Dc Motor With Planetary Gear
Product Details:
Place of Origin: ShenZhen China
Brand Name: Hofon Motor
Certification: RoHS/ISO9001:2000/ISO14001/TS16949
Model Number: PG36-3650BL
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Negotiation
Packaging Details: Carton Box
Delivery Time: 20-30Days
Supply Ability: 5000KPCS/Month
Contact Now
Detailed Product Description
Voltage Range: 6V 12V 24V Or Customized Material: All Metal Planetary Gear Brushless Motor
Diameter: 36mm No Load Speed: 160RPM
No Load Current: 400mA Rated Load Torque: 30000g.cm
Rated Load Speed: 80RPM Rated Load Current: 2600mA
Gear Ratio: 51:1
High Light:

Low Noise 24v Brushless Dc Motor

,

Planetary Gear 24v Brushless Dc Motor

,

160RPM Brushless DC Electric Motor

Hofon Motor Planetary Gear 6V 12V 24V 36mm 160RPM DC Brushless Motor PG36-3650BL

Hofon Precise Motor Limited was founded in the year of 2002, to the establishment of the DC micro motor, small modulus gear motor, brushless motor research and development of the manufacture and sale of customer service professional firms. .

Hofon Motor, specialized R & D and manufacturing in consumer electronics, toys, model aircraft, security, automotive electronics and electronic equipment, office equipment to streamline the development of important pieces of the Important component. Hofon Motor is more conductive to customer demand, with customers to design and develop new products, specifically in the refined products focused on the needs of customers, shorten the cycle of research and development under the precondition of, and continued to enhance customer satisfaction and productivity and to create a positive Hofon customers out of the trust.

We are committed to the Company's production of the motor and gear components with high quality and reasonable price, fast delivery and high satisfaction of marketing services around the world.

Product Description


Product Description
Brand: Hofon Motor
Product Name: DC Planetary gear motor
Product Type: PG36-3650BL
Motor Type: DC Brushless Motor Built-in drive
shaft length: 20.0mm or customized
shaft diameter: φ8.0-D7.0 or customized
voltage: 12-24V or customized
Gear material All metal material
Typical characteristic Low noise, high torque
weight: About 450g
Certification ISO9001,RoHS
Application case: electric lock, robot, electric valve
medical equipment,home appliances

Packaging & Delivery
Selling Units (PCS) Single item
packaging material Carton box
Lead Time MOQ≥1000PCS,20-30 Days Or negotiate



REDUCTION RATIO 1:5.2 1:14 1:19 1:27 1:51 1:100 1:139 1:264 1:515 / / / / /
Reduction box
length (L) mm
26.5 34.5 42.5 50.5

Model: PG36-3650BL-A01 DC 24V
REDUCTION RATIO 1:5.2 1:14 1:19 1:27 1:51 1:100 1:139 1:264 1:515 / / / / /
No-load Speed(RPM) 1535 570 420 300 160 80 58 30 15
No-load Current(mA) ≤400 ≤400 ≤400 ≤400 ≤400 ≤400 ≤400 ≤400 ≤400
Rated Torque(Kg.cm) 3 8 11.00 16.0 30.0 60.00 60.0 60.0 60.0 Can not exceed 60Kg.cm
Rated Speed(RPM) 700 260 190 130 80 40 34 15 8
Rated Current(A) ≤2.6 ≤2.6 ≤2.6 ≤2.6 ≤2.6 ≤2.6 ≤2.6 ≤2.6 ≤2.6
Power Off Protection Current(A) Slow Load exceed 3.0A,automatic power off.It needs to open the power supply and then connect to the power supply before running.

Model: PG36-3650BL-A01 DC 12V
REDUCTION RATIO 1:5.2 1:14 1:19 1:27 1:51 1:100 1:139 1:264 1:515 / / / / /
No-load Speed(RPM) 770 290 210 150 80 40 29 15 7
No-load Current(mA) ≤280 ≤280 ≤280 ≤280 ≤280 ≤280 ≤280 ≤280 ≤280
Rated Torque(Kg.cm) 1.5 4 5.50 8.0 15.0 30.00 40.0 60.0 60.0 Can not exceed 60Kg.cm
Rated Speed(RPM) 360 135 100 70 40 20 16 7 4
Rated Current(A) ≤1.8 ≤1.8 ≤1.8 ≤1.8 ≤1.8 ≤1.8 ≤1.8 ≤1.8 ≤1.8
Power Off Protection Current(A) Slow Load exceed 3.0A,automatic power off.It needs to open the power supply and then connect to the power supply before running.



Hofon 160RPM 24v Brushless Dc Motor With Planetary Gear 0

Hofon 160RPM 24v Brushless Dc Motor With Planetary Gear 1

Hofon 160RPM 24v Brushless Dc Motor With Planetary Gear 2



Hofon 160RPM 24v Brushless Dc Motor With Planetary Gear 3

Hofon 160RPM 24v Brushless Dc Motor With Planetary Gear 4

Hofon 160RPM 24v Brushless Dc Motor With Planetary Gear 5

Hofon 160RPM 24v Brushless Dc Motor With Planetary Gear 6

Package:



Standard export carton packing.



Delivery Time:

3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.



Competitive Advantage:

  • 20 years experience in manufacturing motor and gearbox motor
  • Experienced Staff: average 12 years experience in R&D , ODM & OEM
  • International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
  • Competitive Price
  • High Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 20-25 working days after payment
  • Quality Approvals
  • Small Orders Accepted
  • Advanced equipments: Automatic winding machine, stator automatic setting machine, end cover automatic setting machine, automatic soldering machine, etc



Attention:

If special customs clearance documents are required, please contact us in advance for confirmation.

Hofon 160RPM 24v Brushless Dc Motor With Planetary Gear 7


FAQ


Q:1.What kind of motors you can provide?

A: For now, We mainly provide micro motor and a series of dc deceleration motor, including straight tooth deceleration motor, planetary deceleration motor, worm deceleration motor.At present, our company focuses on developing various types of motors with voltage between 1VDC and 30VDC and motor diameter between 8 and 51mm.

Q:2. Can you send me a price list?

A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.

Q:3. What's the lead time for regular order?

A: For orders, the standard lead time is 3-25 days and this time can be shorter or longer based on different model, period and quantity.

Q:4. Is it possible for you to develop new motors if we can provide tooling cost?

A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.

Q:5.Could you send me free samples?

Yes,also we can return your samples fee back when you place order.



Commonly used torque unit conversion table



N.M mN.m g.cm kg.cm
1 1000 10200 10.2
0.001 1 10.2 0.0102
