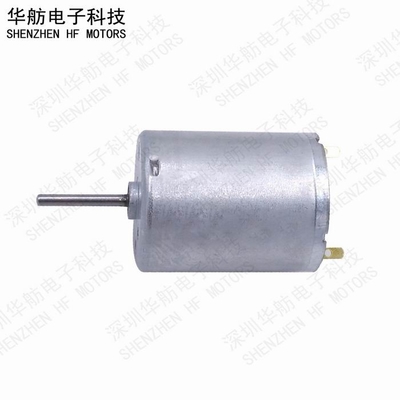

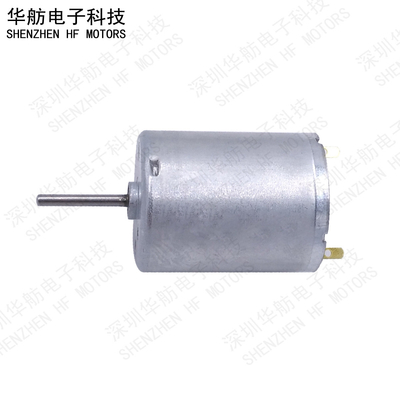

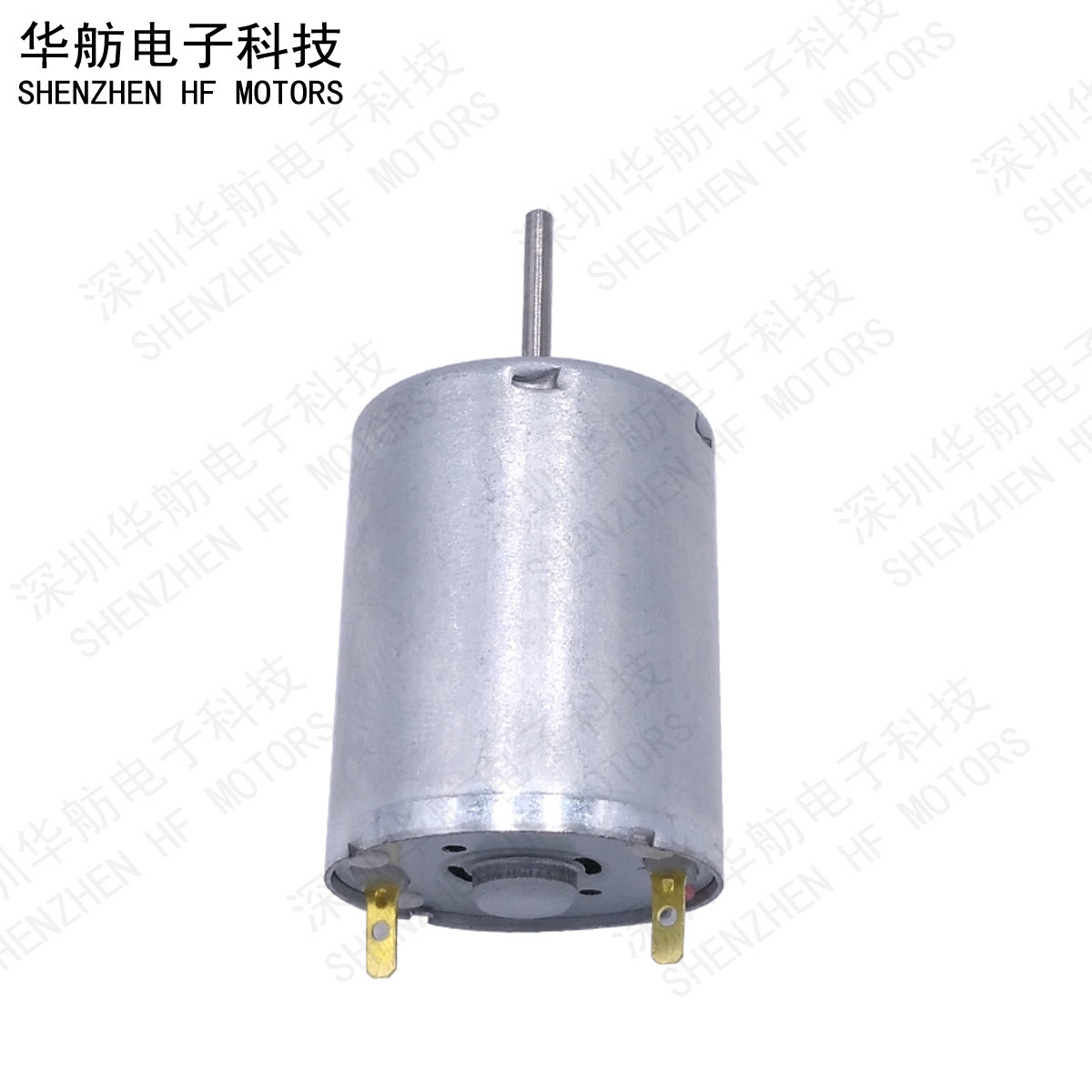

Carbon Brush Permanent Magnet Brushed Dc Motor 12V 3000mA Stall Current For Toys

Carbon Brush Permanent Magnet Brushed Dc Motor 12V 3000mA Stall Current For Toys

    • Carbon Brush Permanent Magnet Brushed Dc Motor 12V 3000mA Stall Current For Toys
    • Carbon Brush Permanent Magnet Brushed Dc Motor 12V 3000mA Stall Current For Toys
    • Carbon Brush Permanent Magnet Brushed Dc Motor 12V 3000mA Stall Current For Toys
  • Carbon Brush Permanent Magnet Brushed Dc Motor 12V 3000mA Stall Current For Toys

    Product Details:

    Place of Origin: ShenZhen China
    Brand Name: Hofon
    Certification: RoHS/ISO9001:2000/ISO14001/TS16949
    Model Number: RK-370CH

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000PCS
    Price: Negotiation
    Packaging Details: Carton Box
    Delivery Time: 25Days
    Supply Ability: 5000KPCS/Month
    Contact Now
    Detailed Product Description
    Voltage Range: 7V Or Customized Material: Carbon Brush
    Diameter: 24.4mm No Load Speed: 6800RPM
    No Load Current: 120mA Rated Load Torque: 20g.cm
    Rated Load Speed: 6200RPM Rated Load Current: 360mA
    Stall Torque: 160g.cm Stall Current: 3000mA
    High Light:

    brush type dc motor

    ,

    brushed electric motor

    24.4mm Round Micro DC Motor For Sweeping Robot Model Toy 3V / 6V / 12V Precious Metal Brushed Motor


    Typical Applications


    • Household application

    electric shaver, tooth brush, kitchen appliances, hair clipper, sewing machines, massager, vibrator, hair dryer, rubdown machine, corn popper, scissor hair machine, vacuum cleaner, garden tool, sanitary ware, window curtain, coffee machine, whisk, intelligent closestool, Sweeping robot and etc.

    • Automotive products

    conditioning damper actuator, door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB,Car tail gate electric putter,power liftgate and etc.

    • Medical equipments

    blood pressure meter, breath machine, Medical cleaning pump, Medical bed and etc.

    • Electric power tools

    electric drill, screwdriver and etc.

    • cosmetic tool

    eyebrow pencil, Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.

    • Office automation equipments

    OA equipments, scanners, printers, multifunction machines copy machines, fax, FAX paper cutter, computer peripheral, bank machine, Video conference and etc.

    • Toys and models

    radio control model, automatic cruise control, ride-on toy and etc.

    • Industrial automation

    display, flow control valves and etc.

    • Precision instruments

    monitor, optics instruments,automatic vending machine and etc.



    • DC Micro Precious metal brushed Motor
    • Diameter : Φ17.0mm
    • Output : APPROX 0.1~20.0W
    • Noise Level : Less than 50dB
    • Low noise, stable performance, quality assurance


    Specifications and Drawing

    The following specifications are only representative of one of our models. Other performance parameters can be customized according to customer requirements



    GearMotor Specifications
    Type:RK-370CH16
    Voltage DC 3.0V DC 5.0V DC 7.0V DC 9.0V DC 12.0V
    No Load Speed(RPM) 2900 4800 6800 8700 11600
    No Load Current(mA) ≤55 ≤85 ≤120 ≤155 ≤210
    Rated Load(g.cm) 8 14 20 25 34
    Rated Load Speed(RPM) 2650 4400 6200 7900 10500
    Rated Load Current(mA) ≤155 ≤260 ≤360 ≤465 ≤620
    Stall Torque(g.cm) ≥65 ≥114 ≥160 ≥200 ≥270
    Stall Current(mA) ≤1300 ≤2150 ≤3000 ≤3860 ≤5150






    Product Details Show


    Carbon Brush Permanent Magnet Brushed Dc Motor 12V 3000mA Stall Current For Toys 0

    Competitive Advantage


    • 16 years experience in manufacturing motor and gearbox motor
    • Experienced Staff: average 12 years experience in R&D , ODM & OEM
    • International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
    • Competitive Price
    • High Product Performance: Low noise, High efficiency, Long lifespan
    • Prompt Delivery: 20-25 working days after payment
    • Quality Approvals
    • Small Orders Accepted
    • Advanced equipments: Automatic winding machine, stator automatic setting machine, end cover automatic setting machine, automatic soldering machine, etc



    Quality Cotrol Test


    • Reliability Test & Laboratory
    • Noise Test
    • Water-proof Test
    • Life Test
    • Impact Test
    • Storage Test
    • Salt Spray Test
    • Environmental Related Substance
