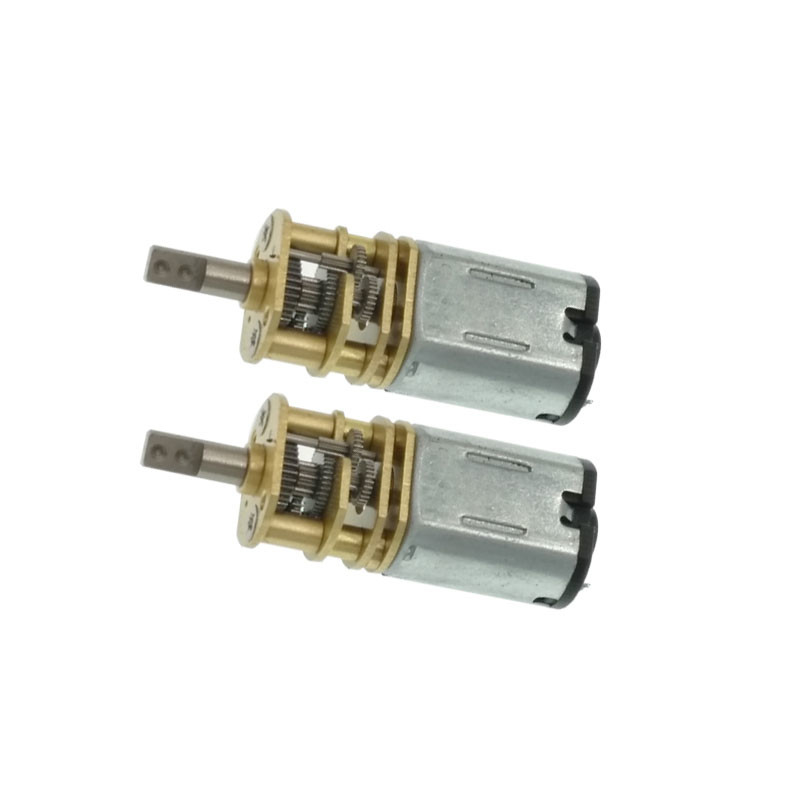

90RPM DC Gear Motor Large Torque No Load Speed 210RPM Household Appliances

90RPM DC Gear Motor Large Torque No Load Speed 210RPM Household Appliances

    • 90RPM DC Gear Motor Large Torque No Load Speed 210RPM Household Appliances
  • 90RPM DC Gear Motor Large Torque No Load Speed 210RPM Household Appliances

    Product Details:

    Place of Origin: ShenZhen China
    Brand Name: Hofon
    Certification: RoHS/ISO9001:2000/ISO14001/TS16949
    Model Number: GM8F-K10VA

    Payment & Shipping Terms:

    Minimum Order Quantity: 2000PCS
    Price: Negotiation
    Packaging Details: Carton Box
    Delivery Time: 35Days
    Supply Ability: 5000KPCS/Month
    Contact Now
    Detailed Product Description
    Voltage Range: 3.0V Or Customized Material: Metal Gear High Precision Gear
    Diameter: 8mm No Load Speed: 210RPM
    No Load Current: 70mA Rated Load Torque: 54g.cm
    Rated Load Speed: 138RPM Rated Load Current: 120mA
    Gear Ratio: 100:1
    High Light:

    gear reduction motor

    ,

    high torque dc motor

    Competitive Advantage


    • 16 years experience in manufacturing motor and gearbox motor
    • Experienced Staff: average 12 years experience in R&D , ODM & OEM
    • International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
    • Competitive Price
    • High Product Performance: Low noise, High efficiency, Long lifespan
    • Prompt Delivery: 20-25 working days after payment
    • Quality Approvals
    • Small Orders Accepted
    • Advanced equipments: Automatic winding machine, stator automatic setting machine, end cover automatic setting machine, automatic soldering machine, etc



    Quality Cotrol Test


    • Reliability Test & Laboratory
    • Noise Test
    • Water-proof Test
    • Life Test
    • Impact Test
    • Storage Test
    • Salt Spray Test
    • Environmental Related Substance

    8mm 2.3V / 3.0V Metal Gear-box motor DC Gear Motor Low Noise and Large Torque High precision gear



    • DC Worm Gear-Box Motor
    • Diameter : Φ8.0mm
    • Output : APPROX 0.1~1.0W
    • Noise Level : Less than 50dB
    • Low noise, stable performance, quality assurance


    Typical Applications


    • Fully automatic electronic door lock

    • Office Automatic Equipments
    • Printer/paper Feeder
    • Bank Equipments Safe Box
    • Ad Equipment
    • Analysis Instrument/electronic
    • Game Machine
    • Household Appliances
    • Electronic Door Lock


    Specifications

    The following specifications are only representative of one of our models. Other performance parameters can be customized according to customer requirements

    MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
    OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
    r/min A r/min A mN.m g.cm w mN.m g.cm A
    GM8F-K10VA-05215-100 1.5-5.0 3.0V 210 0.070 138 0.120 5.29 54 0.360 14.7 150 0.25
    GM8F-K10VA-05215-20 1.5-5.0 3.0V 1050 0.070 690 0.120 1.06 10.8 0.360 3.35 34.2 0.25
    GM8F-K10VA-06170-100 1.5-4.5 2.3V 200 0.800 110 0.170 8.82 90 0.391 19.6 200 0.30
    GM8F-K10VA-06170-20 1.5-4.5 2.3V 1000 0.800 550 0.170 1.8 18 0.391 3.9 40 0.30


    Drawing


    90RPM DC Gear Motor Large Torque No Load Speed 210RPM Household Appliances 0


    Product Details Show


    90RPM DC Gear Motor Large Torque No Load Speed 210RPM Household Appliances 1
