58mm 8V DC Worm Gear Motor Low Noise for Fully Automatic Electronic Door Lock

Certification
Good quality DC Gear Motor for sales
We have cooperated with Woshine for many years. The quality of motor has been very stable and the delivery has been timely.

—— Thomas Jefferson

Thanks to Woshine company to solve the problem of intelligent monitoring system transmission for us

—— Justin Bieber

The technical problem has been solved. Thank you very much

—— Richard Mille

The performance of the gearbox motor is stable, and the noise is low and the reliability is high

—— Emily Bronte

I'm Online Chat Now

58mm 8V DC Worm Gear Motor Low Noise for Fully Automatic Electronic Door Lock

China 58mm 8V DC Worm Gear Motor Low Noise for Fully Automatic Electronic Door Lock supplier

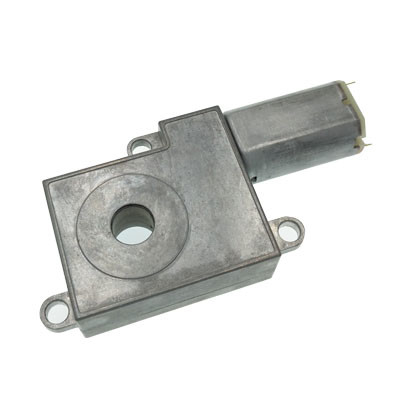

Large Image :  58mm 8V DC Worm Gear Motor Low Noise for Fully Automatic Electronic Door Lock

Product Details:

Place of Origin: ShenZhen China
Brand Name: Woshine
Certification: RoHS/ISO9001:2000/ISO14001/TS16949
Model Number: GM6558-390SA

Payment & Shipping Terms:

Minimum Order Quantity: 2000PCS
Price: USD9.8-10.6/PCS
Packaging Details: Carton Box
Delivery Time: 35Days
Supply Ability: 5000KPCS/Month
Contact Now
Detailed Product Description
Voltage Range: 8V Or Customized Material: Metal Gear
Diameter: 58mm No Load Speed: 80RPM
No Load Current: 280mA Rated Load Torque: 10000g.cm
Rated Load Speed: 64RPM Rated Load Current: 1200mA
Gear Ratio: 91:1

58mm 8V Metal DC Worm Gear motor Large Torque Low Noise For Fully Automatic Electronic Door Lock


  • DC Worm Gear-Box Motor
  • Diameter : Φ58.0mm
  • Output : APPROX 0.1~30.0W
  • Noise Level : Less than 50dB
  • Low noise, stable performance, quality assurance


Typical Applications


  • Fully automatic electronic door lock

  • Office Automatic Equipments
  • Printer/paper Feeder
  • Bank Equipments Safe Box
  • Ad Equipment
  • Analysis Instrument/electronic
  • Game Machine
  • Household Appliances
  • Electronic Door Lock


Specifications

The following specifications are only representative of one of our models. Other performance parameters can be customized according to customer requirements

REDUCTION RATIO 1:91 / / / / / / / / / /

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min A r/min A mN.m g.cm w mN.m g.cm A
GM6558-390SA010A 6.0-9.0V 8.0V 80 0.280 64 1.200 980 10000 9.600 4900.0 50000MAX 8.00



Drawing


58mm 8V DC Worm Gear Motor Low Noise for Fully Automatic Electronic Door Lock

Product Details Show


58mm 8V DC Worm Gear Motor Low Noise for Fully Automatic Electronic Door Lock


General Instructions for Use of Woshine Precise Machinery Motors DO’S and DON’TS to keep your motors in order



  1. If silicon materials, which contain low molecular silicon compound adhere to the motor’s commentator, brush of other parts, then upon rectification of the electric energy the silicon breaks down into SiO2,SiC and other constituents which produce a rapid increase in the contact resistance between the commutator and brush. therefore great care should be taken when silicon material is used in a unit and check well at the same time that such binding agents or sealing materials are not generating gases of detrimental nature, whether used for motor mounting or applied during your product assembles. care must be taken for an optimum selection, especiallywhen using those of cyanic adhesive and sulfur gas.
  2. When mounting your motors by means of binding agents, DON’T flow any adhessice to the Bearings nor intrusion into the motors.
  3. Axial thrust on the output shaft could have an adverse effect on the motor life i.e... as is produced by worm gears, fans etc, check the service life expected under the actual operating conditions by testing the motors installed in your application products .for heavy thrust loads consider using something mechanical to retain the shaft end.
  4. There are occasions when the internal resistance of the motor driving power source (which contains an electrical circuit) can influence the life span of the motor. in instances where there is a low input of voltage to the motor, the internal resintance of The Power source is large which may well result in an inferior motor after a short time, conversely in instances where high cyclic voltage are applied, this internal resistance is small and the motor life span is shortened. when the temperature deviates from the normal room temperature as is the case in low and high temperature situations, please note the conditions.
  5. Motor life may be affected adversely by heavy radial load such as produced by rotating eccentric cams, etc., and also by vibration given from outside. Do check over such negative factors by testing the motors to the actual operating conditions in your application products.
  6. If when mounting the motor and assembling the unit, equipment which emits ultrasonic waves is used there is a danger that some of the internal parts of the motor might be damaged so please take care,
  7. DON’T store motors under environmental conditions of high temperature and extreme humidity. DON’T keep them also in an atmosphere where corrosive gas may be present, as it may result in mulfunction.
  8. Ambient and operating temperatures exert an affect more or less on motor performance and Do pay particular attention to the surroundings when it is hot and damp
  9. When press fitting a pulley, gear etc., onto the motor output shaft, always support the shaft from the other end on its retaining metal pad in a proper and correct way.
  10. When soldering, BE SURE to finish your work quickly so as not to develop plastic deformation around the motor terminals nor to give them any forced bend or inward depression. in doing deformation- special care must be taken not to allow solder debris and flux to spatter into motors and precaution measures should be taken if necessary, by covering up all the nearby holes and aperaures. Any motors having snap in terminals must also be attended carefully so as not to get flux in along the terminals, as it may cause failure in electrical conduction.
  11. DON’T leave motor shaft locked while power is applied, as even a short time lock up may cause excessive heat build up resulting in burning damage to the motor depending on its specifications.



For more information, please contact us directly or through our sales and representative offices.





Competitive Advantage


  • 16 years experience in manufacturing motor and gearbox motor
  • Experienced Staff: average 12 years experience in R&D , ODM & OEM
  • International Approvals: ROHS/ISO9001/ISO14001/SGS/TS16949
  • Competitive Price
  • High Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 20-25 working days after payment
  • Quality Approvals
  • Small Orders Accepted
  • Advanced equipments: Automatic winding machine, stator automatic setting machine, end cover automatic setting machine, automatic soldering machine, etc


Quality Cotrol Test


  • Reliability Test & Laboratory
  • Noise Test
  • Water-proof Test
  • Life Test
  • Impact Test
  • Storage Test
  • Salt Spray Test
  • Environmental Related Substance
